D-911
VCA控制單元
D-911

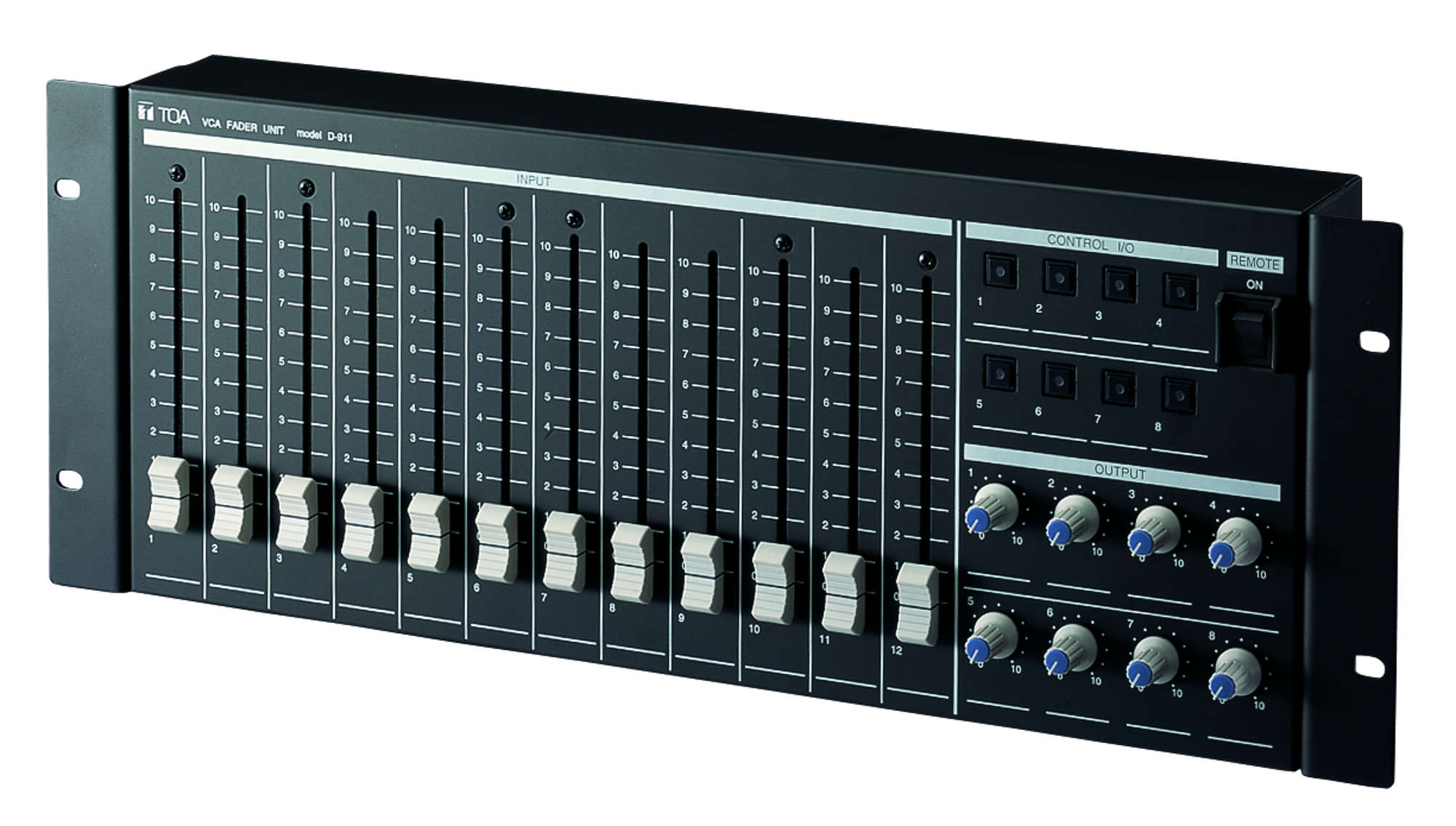

D-911 是一款專用VCA 推子單元，設計用於與D-901 數位混音器等搭配使用。控制。
- 100 毫米推桿
- 所有頻道的音量控制與接點控制
- 輸入頻道的12 個推子
- 8 個輸出音量控制
- 8 個LED 照明開關
- 遠端電源控制
- 可安裝在機架上
- 需要VCA 控制模組(D -984VC)
電源
5 V DC (supplied from the optional D-984VC)
連接
RJ45 connector × 8
Input Fader Control
Input fader (100 mm) × 12
Output Volume Control
Output volume control × 8
接點控制
Illuminated switch × 8
Remote Output
No-voltage make contact output (contact capacity: 30 V DC, 4 A)
Remote Switch
Seesaw switch for activating the remote function of the power distributor
外觀
Panel: Pre-coated steel plate, black, 30 % gloss
尺寸
482.6 (W) × 177 (H) × 61.3 (D) mm (excluding projection)
重量
2.7 kg
附屬品
Fader knob (Red, Yellow)x 3 each, Volume knob (Red) x 2, Rack mounting screw x 4, Rack mounting bracket (preinstalled on the unit) x 2
請下載資料以獲取完整規格。
所需配件
19-inch sized remote control console with 12 easy standard 100 mm faders and 8 rotary knobs for continuous volume adjustment of the 12 inputs and the 8 outputs, 8 push buttons with integrated LEDs to be used for programmable functions such as preset selection, input channel selection, channel switch on/off and gradually increase/decrease of the volume, LED to indicate preset selection, selected input channel and channel, switched on or off. Switch for remote switching on the digital mixing system or the complete system.
Due to the low installation depth mounting both in 19-inch cabinet racks and in consoles.
Accessories included in delivery: three each of fader knobs in red and yellow, and two rotary knobs in red color for marking certain channels.
