D-901
數位混音器
D-901
- 輸入：12頻道，輸出：8頻道
- 內建自動混音、自動調節器、等化器、矩陣等多種DSP功能，可儲存16組預設值
- 直觀的GUI< /li>
- 混音控制台選項提供簡單的使用者操作
- 頻率響應：20Hz~20kHz，±1dB(±4dB輸入)
*0 dB = 0.775 V
電源
100 - 120 V AC, 50/60 Hz
消耗功率
40 W
頻率響應
20 Hz - 20 kHz, ±1 dB (±4 dB* input)
輸入
Max. 12 channels, modular construction (modules optional)
輸出
Max. 8 channels, modular construction (modules optional)
Preset Memory
16
Auxiliary Function
System Locking function
Digital Signal Processing
Feedback Suppressor (FBS)
12 filters (auto/dynamic)
Auto-Mixing Function
Ducker (auto muting), NOM attenuation
Auto Mixing Group
4 groups
Equalizer/Filter
Parametric equalizer: 20 – 20,000 Hz, ±15 dB, Q: 0.267 – 69.249
Filtering: High-pass filter 20 – 20,000 Hz, 6 dB/oct, 12 ct
Low pass filter 20 – 20,000 Hz, 6 dB/oct, 12 dB/oct
Notch filter 20 – 20,000 Hz, Q: 8.651 – 69.249
All-pass filter 20 – 20,000 Hz, Q: 0.267 – 69.249
High shelving filter 6 – 20,000 Hz, ±15 dB
Low shelving filter 20 – 500 Hz, ±15 dB
Horn equalizer 20 kHz, 0 to +18 dB (1 dB steps)
Crossover filter: 20 – 20,000 Hz, 6 dB/oct, 12 dB/oct, 18 dB/oct, 24 dB/oct
Filtering: High-pass filter 20 – 20,000 Hz, 6 dB/oct, 12 ct
Low pass filter 20 – 20,000 Hz, 6 dB/oct, 12 dB/oct
Notch filter 20 – 20,000 Hz, Q: 8.651 – 69.249
All-pass filter 20 – 20,000 Hz, Q: 0.267 – 69.249
High shelving filter 6 – 20,000 Hz, ±15 dB
Low shelving filter 20 – 500 Hz, ±15 dB
Horn equalizer 20 kHz, 0 to +18 dB (1 dB steps)
Crossover filter: 20 – 20,000 Hz, 6 dB/oct, 12 dB/oct, 18 dB/oct, 24 dB/oct
Compressor/Auto-Leveler
(Compressor mode)
Threshold: –20 to +20 dB (1 dB steps)
Ratio: 1:1, 2:1, 3:1, 4:1, 8:1, 12:1, 20:1, ∞:1
Attack time: 0.2 ms – 5 s
Release time: 10 ms – 5 s
Gain: –∞ to +10 dB
(Auto-leveler mode)
Target level: –20 to +20 dB (1 dB steps)
Maximum gain: 0 to +20 dB (1 dB steps)
Attack time: 10 ms – 10 s
Release time: 100 ms – 10 s
Threshold: –20 to +20 dB (1 dB steps)
Ratio: 1:1, 2:1, 3:1, 4:1, 8:1, 12:1, 20:1, ∞:1
Attack time: 0.2 ms – 5 s
Release time: 10 ms – 5 s
Gain: –∞ to +10 dB
(Auto-leveler mode)
Target level: –20 to +20 dB (1 dB steps)
Maximum gain: 0 to +20 dB (1 dB steps)
Attack time: 10 ms – 10 s
Release time: 100 ms – 10 s
Delay
Delay time: 0 – 682.6 ms (0.021 ms steps)
Matrix
12 x 8
Crosspoint gain
–∞ to 0 dB (1 dB steps)
控制
RS-232C, D-sub connector (9 pins), Remote control module (option)
Front Panel Section
Preset memory recall key: 8
LCD screen, screen shift key (up/down/left/right), setting knob
Input level indicator: Dual color LED
Output level indicator: Dual color LED
Channel selector key: 12 (input channel selection), 8 (output channel selection)
Channel volume control: 1 (input channel selection), 1 (output channel selection)
LCD screen, screen shift key (up/down/left/right), setting knob
Input level indicator: Dual color LED
Output level indicator: Dual color LED
Channel selector key: 12 (input channel selection), 8 (output channel selection)
Channel volume control: 1 (input channel selection), 1 (output channel selection)

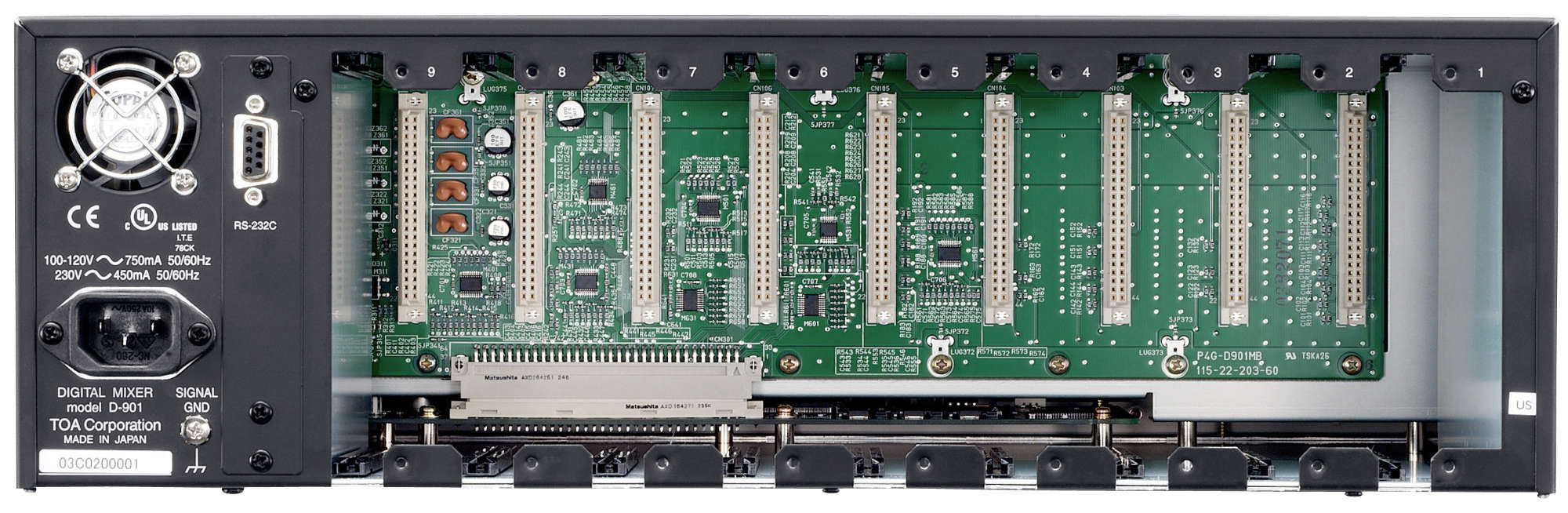

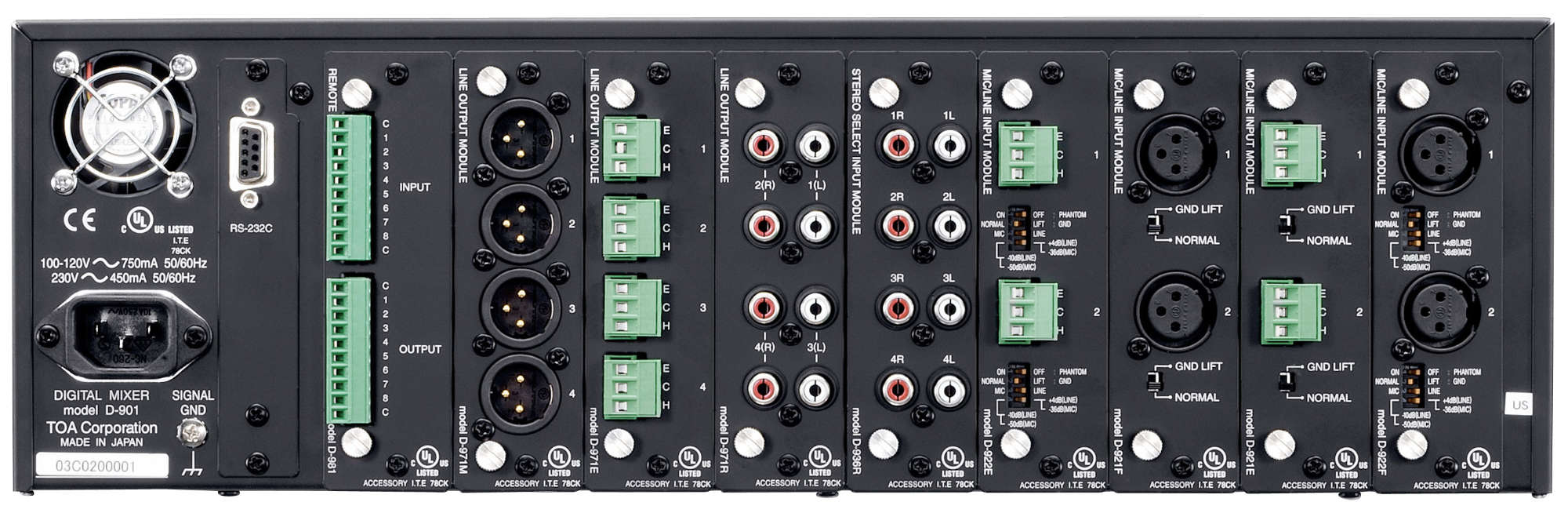

Rear Panel
Input module slot: 6 (input/output module slot: 2)
Output module slot: 2
Remote control module slot: 1
Output module slot: 2
Remote control module slot: 1
工作溫度
+5 °C to +40 °C (41 °F to 104 °F)
外觀
Panel: Aluminum, hair-line finish, black
Others: Pre-coated steel plate, black, 30% gloss
Others: Pre-coated steel plate, black, 30% gloss
尺寸
482.6 (W) x 132.6 (H) x 320 (D) mm (19" x 5.22" x 13.51") (excluding projection)
重量
6.9 kg (15.21 lb)
附屬品
Power cord (2 m (6.56 ft) x 1, Rack mounting screw x 4, Rack mounting bracket (preinstalled on the unit) x 2, Module mounting screw (spare) x 4, Blank panel (preinstalled on the module slot) x 9
[Note] When installing the unit, never block the intake vents provided in the unit's bottom near the rear.
請下載資料以獲取完整規格。
Digital mixer with up to 12 inputs and 8 outputs. Module base frame with rear slots for various input and output modules for flexible expansion of the system according to the requirements. Feedback suppressors with 12 filters in automatic or dynamic mode.
Automatic mixer with variable NOM-(number of open microphones) and ducker functions (signal-controlled mute) with 8 priority levels.
DSP functions of the input channels: trim (gain), pad, attenuator, phase reversal, compressor, variable high-pass filter, 2 parametric equalizer DSP functions of the output channels: mixing matrix, attenuator, delay up to 682,6 ms, compressor, 2-, 3-, 4-way crossover network with filter slopes up to 24 dB/octave and different characteristics (Bessel, Butterworth, Linwitz-Rayley and variable Q) or 6 multifunction filters with selectable filter types parametric equalizer, high-pass, low-pass, all-pass filter, notch-filter, shelv-filters for bass and treble, CD-Horn equalization.
16 preset configurations can be stored in the device independent of the mains and recalled via keypad or remote control, 8 configurations directly available via front panel buttons.
All settings possible without PC software via front panel controls with the help of 2-line LCD. Quick direct access to the level settings and on / off switch and signal indicator for each input and output channel. Access lock on front panel controls individually adjustable.
Software: Configuration and all parameters can be saved to disk; Display of amplitude, phase and elapsed time frequency response; Stereo and universal parameter links; Access lock in 3 levels for each DSP function, inputs, output. Name assignment to configurations and device for a better overview. In real time mode display of the signal level of the inputs and outputs. Programming of remote control parameters.
Possibility of a simple remote control for the configuration selection, mute, and volume control with control input module. Easy control of the system by AMX, Crestron, cue, and other similar units by simply held protocol via RS232C interface.
