VX-3000CT
控制面板
VX-3000CT
VX-3000CT 是專為 VX-3000 系列設計的操作面板。它配備了 9 個功能鍵和 8 個音量控制。
單一 VX-3000 框架最多可連接 2 台設備，每個系統最多可配置 80 台設備。
它可以安裝在EIA設備機架（1U尺寸）。

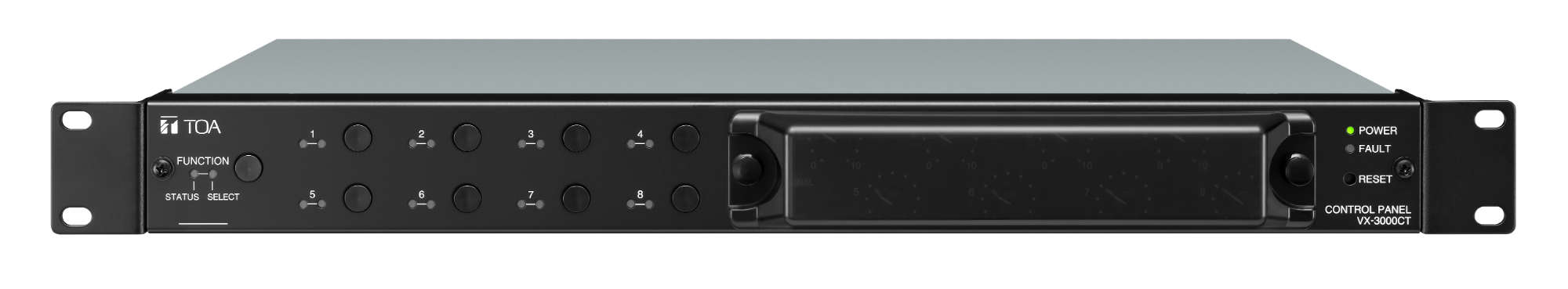

- 控制面板設有9個功能鍵和8個音量控制旋鈕，方便操作
- 功能鍵用於公共廣播操作，例如啟動通用廣播。
- 音量控制可調整相框音訊輸入或音訊輸出（可指派）的音量。
電源
20 - 33 V DC, removable terminal block (4 pins)
消耗電流
0.09 A at 33 V DC input
0.11 A at 24 V DC input
0.11 A at 24 V DC input
指示燈
POWER (green) x 1, RUN (green) x 1, LINK/ACT (green) x 2, SIGNAL (green) x 8, FAULT (yellow) x 1, STATUS (green/yellow) x 9, SELECT (green) x 9
Volume Control
8 channels
Operation
Function key x 9, Reset key x 1, IP address setting switch x 1
工作溫度
0 °C to 40 °C (32 °F to 104 °F)
工作濕度
90% RH or less (no condensation)
外觀
Panel: Surface-treated steel plate, black, 30 % gloss, paint
Volume control section cover: ABS resin, gray smoke
Volume control section cover: ABS resin, gray smoke
尺寸
482 (W) x 44 (H) x 315.2 (D) mm (18.98" x 1.73" x 12.41")
重量
3 kg (6.61 lb)
附屬品
Rack mounting screw x 4, Removable terminal plus (4 pins) x 1
請下載資料以獲取完整規格。
The control panel shall be an operation panel used with TOA’s VX-3000 System. By connecting the panel to VX-3000's Voice Evacuation Frame via network, the operation such as the activation of general broadcast and the volume control can be performed on its front panel.
It shall be equipped with 9 function keys and 8 volume controls. A specific function can be assigned to each function key by setting software. Volume control knobs can adjust the volume level of the Voice Evacuation Frame’s audio input or audio output, and which can be set by setting software. Up to 2 units can be connected to a single Voice Evacuation Frame, and a maximum of 80 units can be configured per system.
Power requirements shall be 20 - 33 V DC connected via 4 pin removable terminal block. The unit shall use 1 space unit of a standard EIA component rack space and its dimensions shall be 482 (W) X 44 (H) X 315.2(D) mm (18.98" x 1.73" x 12.41"). Weight shall be 3 kg (6.61lb.) and finished in black surface-treated steel plate front panel, with gray smoke ABS resin volume control section cover.
Manufacturer: TOA Corporation
Model: VX-3000CT
