TS-D1100-MU
中央控制單元
TS-D1100-MU
TOA 數位會議系統的 TS-D1100-MU 主控制單元設計為使用 CAT5e STP LAN 電纜簡單連接到其主席和代表單元。主控制單元還配備錄音功能、PC控制(*1)和一鍵式連接確認功能。最多可透過簡單的菊花鏈配置連接 32 個主席/代表單元。然而，為了進一步擴展，最多可以在系統中添加 5 個 TS-D1000-SU 子控制單元，從而可以在一個完全整合的會議系統中連接多達 246 個主席/代表單元。連接到 PC 可以在網路會議和大會期間進行音訊輸入和輸出，為與會者提供清晰、易於聆聽的音訊。 TS-D1100-MU也配備了FBS（回饋抑制），可以有效控制聲音回饋。此外，該裝置還採用 MP3 錄音機，可將所有會議內容錄製到連接的 USB 儲存驅動器或內部記憶體中。透過使用選購的機架安裝支架，可以將其安裝在 EIA 標準配備機架（4 單元尺寸）中。 (*1) 相關控制軟體可依客戶要求提供。
- USB 音訊輸入/輸出（USB 2.0 B 型連接埠）
- 支援多達 32 個會議裝置

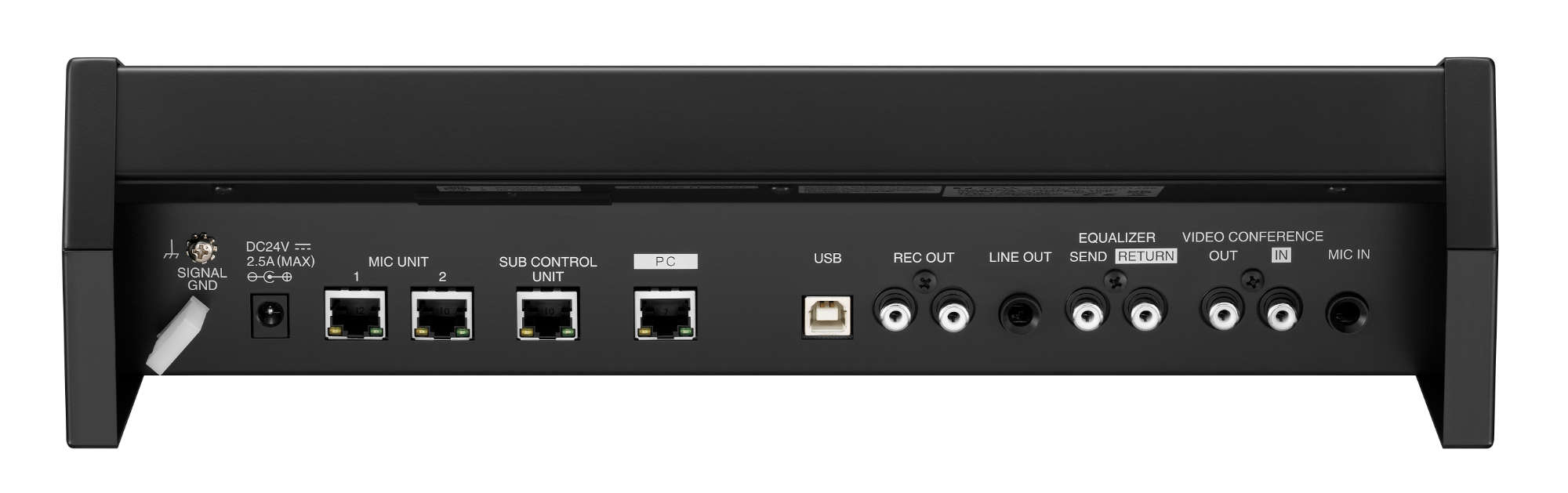

- 麥克風輸入、AUX 輸入、線路輸出、錄影輸出、耳機監聽輸出、EQ 輸入/輸出
- 功能設定：開啟麥克風的數量、自動麥克風關閉功能、麥克風優先選擇器
- 可透過選購的MB-TS920 支架進行機架安裝
電源
100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter)
消耗功率
60 W or less
頻率響應
100 Hz - 13 kHz
失真率
0.5 % or less
S/N比
80 dB or more (A-weighted)
音聲傳輸系統
Time division multiplexing (TDM), 10 channels
16-bit PCM, 32 kHz sampling frequency
16-bit PCM, 32 kHz sampling frequency
MIC Input
-54 dB (*2), 600 Ω, unbalance, Ø6.3 mm phone jack (2P)
輸出
LINE: -10 dB (*2), 10 kΩ, unbalance, Ø6.3 mm phone jack (2P)
REC: -10 dB (*2), 10 kΩ, unbalance, RCA pin jack, monaural
HEADPHONES: Ø3.5 mm mini jack, monaural
REC: -10 dB (*2), 10 kΩ, unbalance, RCA pin jack, monaural
HEADPHONES: Ø3.5 mm mini jack, monaural
USB音訊輸入/輸出
USB 2.0, type-B port
外部EQ輸入/輸出
-10 dB (*2), 10 kΩ, unbalance, RCA pin jack
視訊會議系統輸入/輸出
-10 dB (*2), 10 kΩ, unbalance, RCA pin jack
LED指示燈
Power indicator, Conference mode indicator, Number of open microphones indicators, Microphone auto off indicator, Monitor speaker of conference units volume indicators, Connection test indicator, External control indicator, Setting lock indicator, Recording status indicator, USB Access status indicator, USB memory status indicator, Internal memory status indicator, Remaining USB memory capacity warning indicator, Remaining internal memory capacity warning indicator, LINK/ACT indicator, 10BASE-T/100BASE-TX indicator
可連接席數
32 units
系統最大擴充單元數
5 units
線材長度
50 m (164.04 ft) (between Master control unit and terminal Chairman/Delegate unit at end of daisy chain) (*3)
1 m (3.28 ft) (between Master control unit and Sub control units)
(Use the cable supplied with the Sub control unit.)
1 m (3.28 ft) (between Master control unit and Sub control units)
(Use the cable supplied with the Sub control unit.)
同時發話席數
2 chairman units, 8 delegate units
擴充單元連接端子
RJ45 connector
功能鍵

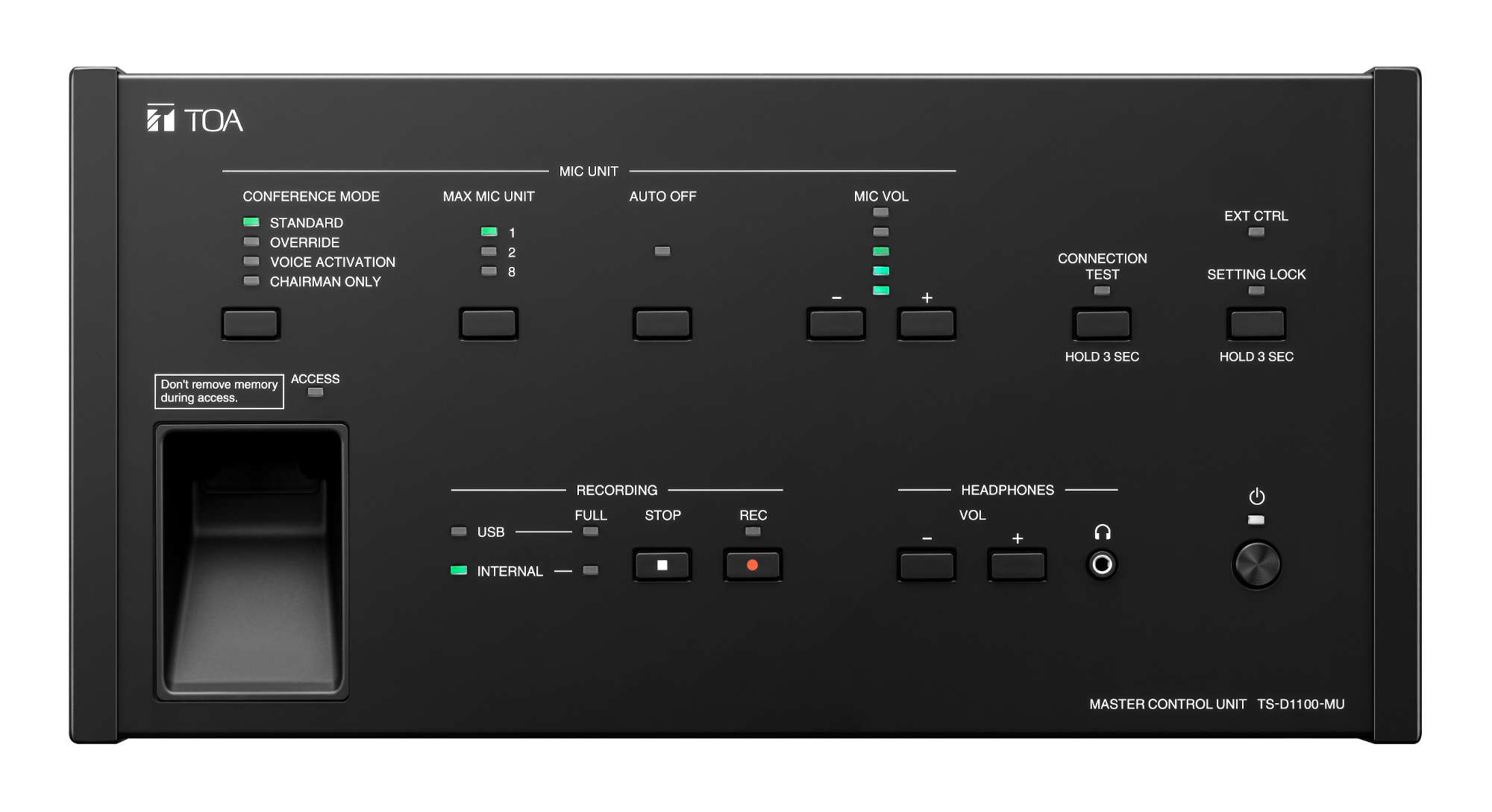

Conference mode selector key: Standard/Override/Voice activation/Chairman Only
Number of open microphones selector key: 1/2/8
Microphone auto off setting key: ON/OFF
Monitor speaker of conference units volume setting key: -,+
Setting lock key: ON/OFF
Headphone volume setting key: -,+
Number of open microphones selector key: 1/2/8
Microphone auto off setting key: ON/OFF
Monitor speaker of conference units volume setting key: -,+
Setting lock key: ON/OFF
Headphone volume setting key: -,+
操作鍵
Connection test, Rec start, Rec stop
Recording Port
USB-A
錄音功能
Recordings can be made to a USB memory device (*4) or the internal memory.
Recording format: MP3 (MPEG-1 Audio Layer-3), monaural
Sampling frequency: 32 kHz, Bit rate: 128 kbps
Recording format: MP3 (MPEG-1 Audio Layer-3), monaural
Sampling frequency: 32 kHz, Bit rate: 128 kbps
網絡I/F
10BASE-T/100BASE-TX (Automatic-Negotiation)
網路通訊協定
TCP, HTTP, DHCP, ARP (APIPA), UDP (mDNS), UPnP
網路端子形式
RJ45 connector
工作溫度
0 °C to +40 °C (32 °F to 104 °F)
工作濕度
90 %RH or less (no condensation)
外觀
Panel: Surface-treated steel plate, black, 30 % gloss, paint
重量
2.2 kg (4.85 lb)
附屬品
AC adapter (Cord length: 1.8 m or 5.91 ft DC cord, and 2 m or 6.56 ft detachable AC cord) x 1, USB cable (3 m or 9.84 ft) x 1
選配品
Rack mounting bracket: MB-TS920
(*2) 0 dB = 1V
(*3) Cable lengths can be extended to a maximum of 100 m or 328.08 ft with the use of the Extension Unit.
(*4) A USB 2.0-compatible FAT32-formatted flash memory device of up to 32 GB in capacity can be used. There may be cases in which a USB flash drive cannot be used with the TS-D1100-MU, depending on the drive's attributes or recording conditions.
(*3) Cable lengths can be extended to a maximum of 100 m or 328.08 ft with the use of the Extension Unit.
(*4) A USB 2.0-compatible FAT32-formatted flash memory device of up to 32 GB in capacity can be used. There may be cases in which a USB flash drive cannot be used with the TS-D1100-MU, depending on the drive's attributes or recording conditions.
請下載資料以獲取完整規格。
The master control unit shall configure and control delegate and chairman units via standard CAT5e STP LAN cable and by a simple daisy chain topology shall be able to control up to 32 chairman and delegate units. It shall include built-in USB audio input/output capability to support direct connection with a PC for establishing a hybrid conferencing environment. It shall be possible to extend the number of delegate/chairman units to 246 by utilizing sub-control units, allowing full-integrated conference facilities.
The system shall be easy to configure allowing the user quick and easy set up and disassembly.
The system shall be easy to configure allowing the user quick and easy set up and disassembly.
The master control unit shall employ an automatic FBS (feedback suppressor) function that will systematically eliminate acoustic feedback by a series of notch filters allowing optimum performance at all times.
There shall be a NOM (Number of Open Microphones) facility allowing up to 2 chairmen and 8 delegates to participate simultaneously and a Mic auto-off function that will disable the microphone after 30 seconds if no signal is present. There also shall be an energy-saving function that will switch off the system after 2 hours of inactivity.
There shall be a NOM (Number of Open Microphones) facility allowing up to 2 chairmen and 8 delegates to participate simultaneously and a Mic auto-off function that will disable the microphone after 30 seconds if no signal is present. There also shall be an energy-saving function that will switch off the system after 2 hours of inactivity.
The master control unit shall have recording facilities that will allow recordings to be made in MP3 format with a sampling frequency of 32 kHz with a 128 kbps bit rate and stored on an internal 1GB hard drive or an additional USB drive, there shall also be two mono RCA recording outputs. The master control unit shall also have PC control to facilitate custom control software as well as integration with other devices such as cameras.
The master control unit shall employ a push and hold test function button that will confirm connectivity is correct and for additional monitoring purposes there shall be LED indication for the following: power, conference mode, number of open microphones, microphone auto-off, speaker monitor, connection test, external control, setting lock, recording status, USB access status, USB memory status, internal memory status, remaining USB memory capacity warning, internal memory capacity warning, LINK/ACT and 10BASE-T/100BASE-TX indicators. The master control unit shall also provide RCA sockets to facilitate an external graphic equalizer, videoconference, a line output jack socket for external amplifier and a headphone mini jack socket.
Power requirement shall be 100-240 VAC, 50/60 Hz with a 60 W or less power consumption using the provided AC Power Supply.
The master unit shall have the option of being a stand-alone unit or rack-mountable using optional brackets and shall use four EIA component rack spaces. Dimensions shall be 361 (W) x 100.4 (H) x 179.8 (D) mm (14.21" x 3.95" x 7.08") weighing 2.2 kg (4.85 lbs.) and finished in treated steel plate with black metallic paint.
Optional extras: TS-D1000-SU Sub control unit, TS-D1000-EX Extension unit that will allow the increase in cable lengths, MB-TS920 Rack mounting brackets manufactured by TOA Corporation.Manufacturer: TOA Corporation
Model: TS-D1100-MU
Model: TS-D1100-MU
