TS-D1000-SU

擴充單元

TS-D1000-SU

TS-D1000-SU 子控制單元專門設計用於數位會議系統。透過將會議系統連接到 TS-D1000-MU 或 TS-D1100-MU 主控制單元，可以輕鬆擴展會議系統。每個子控制單元可使用 CAT5e STP LAN 電纜連接最多 48 個主席和代表單元。使用隨附的 LAN 電纜最多可將 5 個子控制單元連接到主控制單元。透過使用選購的機架安裝支架，可以將其安裝在 EIA 標準配備機架（1 單位尺寸）中。

控制最多48 個會議裝置
最多5 個子控制裝置，可透過隨附的LAN 電纜連接到主控制裝置。

規格 A&E規格下載

電源

100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter)

消耗功率

80 W or less

LED指示燈

Power indicator

可連接席數

48 units

線材長度

50 m (164.04 ft) (between Sub control unit and terminal Chairman/Delegate unit at end of daisy chain) (*1)

擴充單元連接端子

RJ45 connector x2

工作溫度

0 °C to +40 °C (32 °F to 104 °F)

工作濕度

90 %RH or less (no condensation)

外觀

Panel: Aluminum, black, 30 % gloss, paint
Case: Surface-treated steel plate, black, 30 % gloss, paint

尺寸

210 (W) x 45.8 (H) x 294.8 (D) mm (8.27 x 1.8" x 11.61")

重量

1.6 kg (3.53 lb)

附屬品

AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable AC cord) x 1, Connection cable (Cat5e STP, 1 m (3.28 ft) x 1

選配品

Rack mounting bracket: MB-15B-BK (for rack mounting one TS-D1000-SU unit), MB-15B-J (for rack mounting two TS-D1000-SU units)

(*1) Cable lengths can be extended to a maximum of 100 m (328.08 ft) with the use of the Extension Unit.

請下載資料以獲取完整規格。

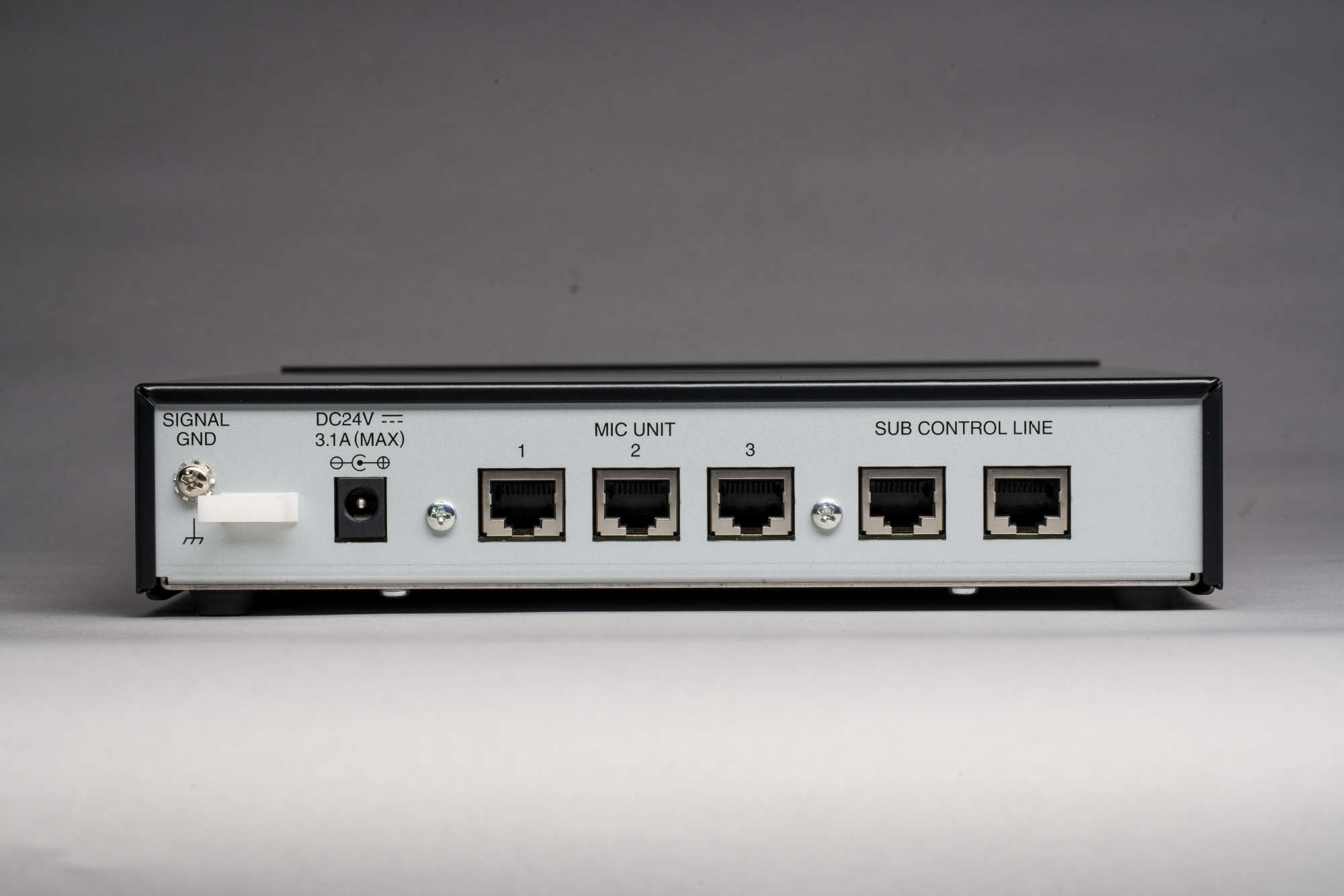

The sub-control unit shall perform the task of expanding the amount of conference units when using the TS-D1100 digital conference system manufactured by TOA Corporation. Up to five sub-control units shall be able to connect to the master control unit utilizing a standard CAT5e STP LAN cable allowing up to 48 conference units to be used per each sub-control unit. The system shall be connected using digital communication technology. The sub-control unit shall provide three RJ45 ports for conference units and two RJ45 sub-control for line ports making installation quick and easy.

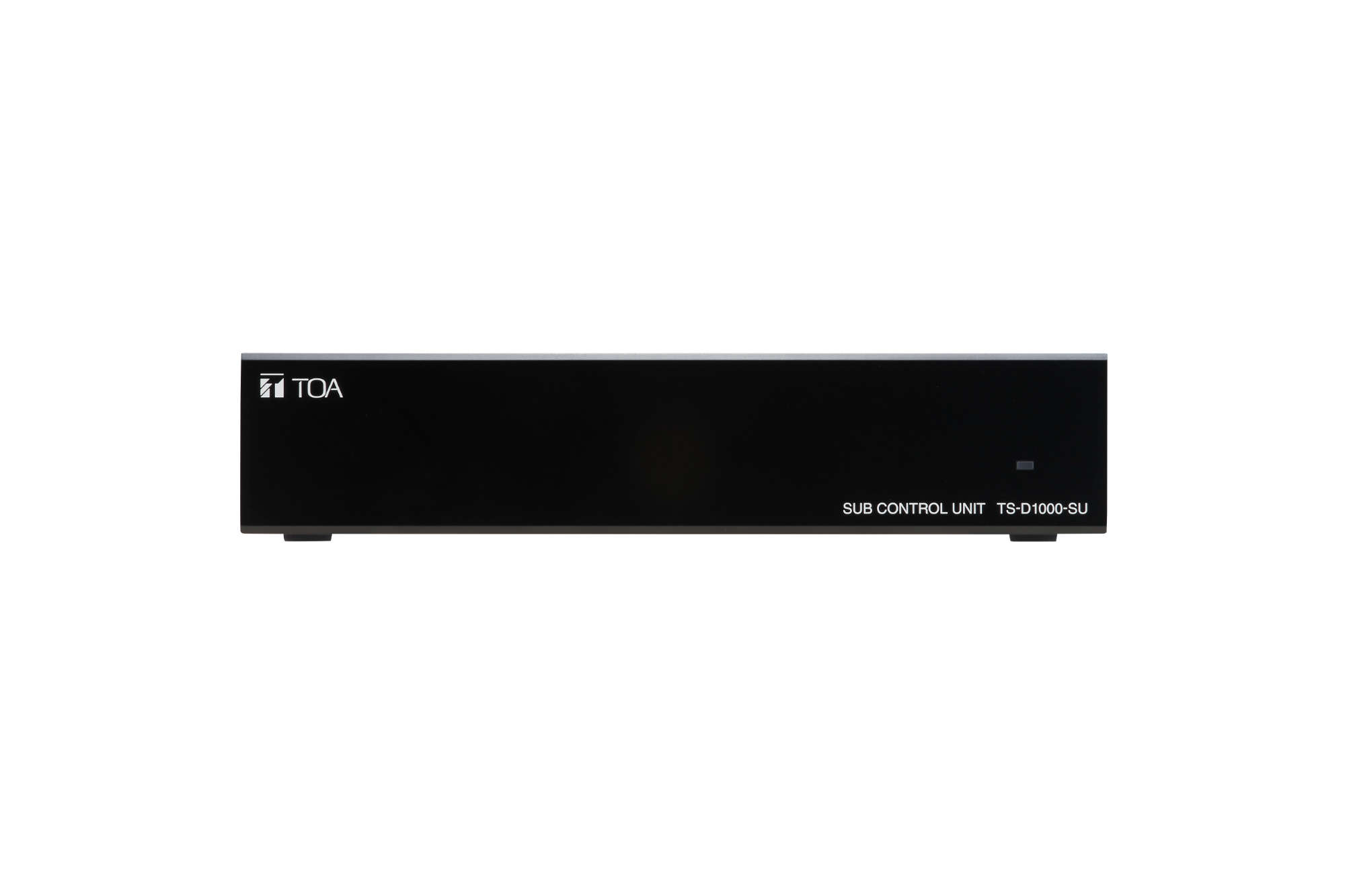

Power requirement shall be 100-240 VAC, 50/60 Hz with an 80 W or less power consumption using the provided AC power supply. The sub-control unit shall have the flexibility of being rack mounted utilizing one EIA component rack space using the optional mounting brackets. Dimensions of the sub-control unit shall be 210 (W) x 45.8 (H) x 294.8 (D) mm (8.27” x 1.8” x 11.61”) and finished in a black surface-treated steel plate enclosure with a black aluminum front panel, and shall weigh 1.6 kg (3.53 lb.)
Optional extras: MB-15B-BK rack mounting bracket for one unit, MB-15-B-J rack mounting bracket for two units to be mounted side by side manufactured by TOA Corporation
Manufacturer: TOA Corporation
Model: TS-D1000-SU
