TS-D1000-M1
麥克風(標準型)
TS-D1000-M1

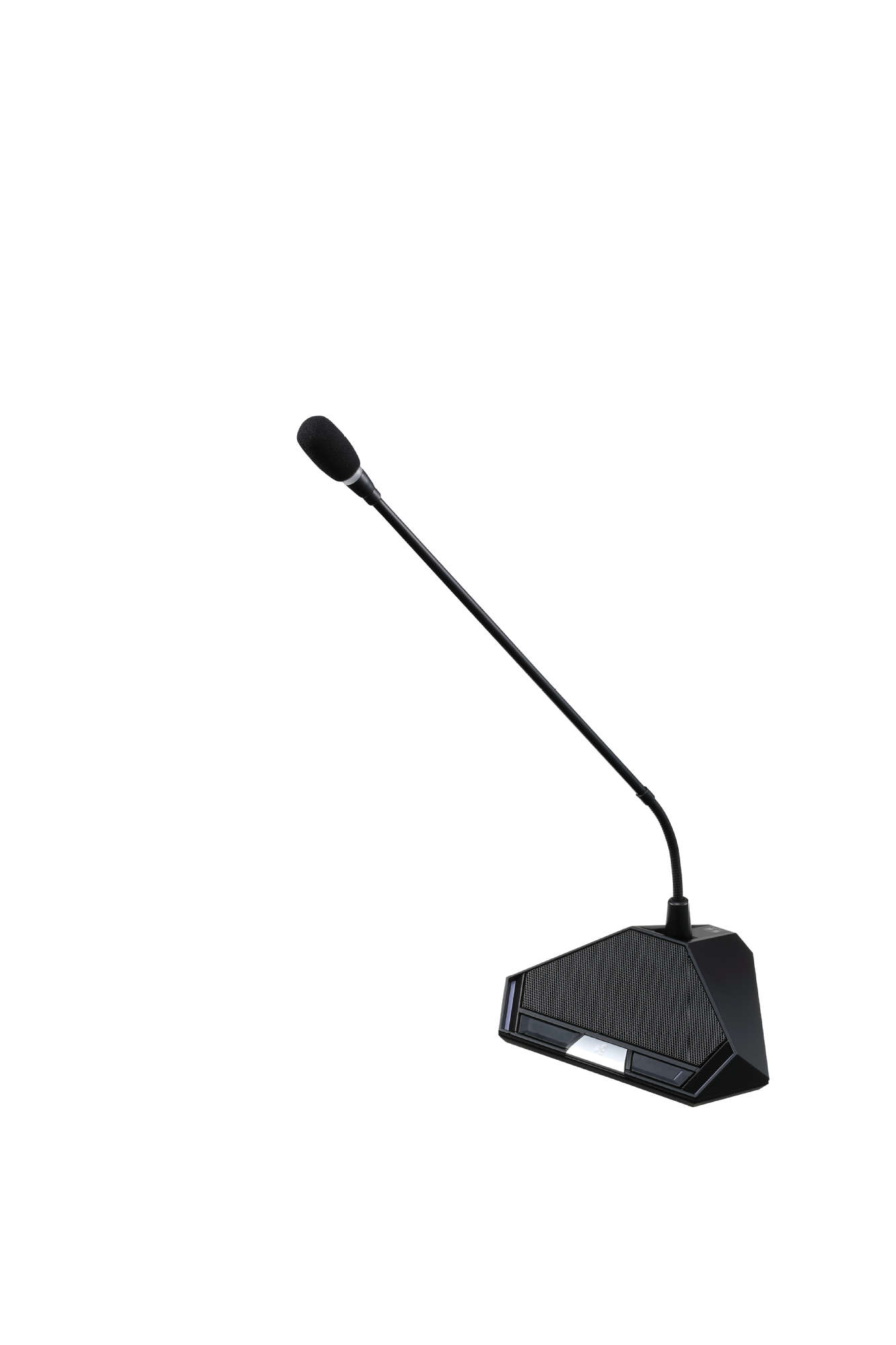

TS-D1000-M1麥克風是數位會議系統主席單元和代表單元的專用組件。其麥克風頭配有發光顯示環，可一目了然地監控使用中的設備狀態。
- 鵝頸麥克風
- 單向駐極體電容麥克風
- LED 顯示麥克風狀態
- XLR-3-12C 連接器
- 靈敏度：-37 dB（1 kHz，0 dB = 1 V / PA）
- 頻率響應：100 Hz - 13 kHz
- 長度：518 毫米（1.7 英尺）
類型
Electret condenser microphone
指向性
Unidirectional
阻抗
1.4 kΩ
Rated Sensitivity Level
-37 dB (1 kHz 0 dB = 1 V/Pa)
頻率響應
100 Hz - 13 kHz
Output Connector
Equivalent to XLR-3-12C
LED指示燈
Speech indicator (ring type) Red
工作溫度
0 °C to 40 °C (32 ºF to 104 ºF)
工作濕度
90%RH or less (no condensation)
外觀
Gooseneck: Stainless steel, black
Other: ABS resin, black
Other: ABS resin, black
Length
518 mm (1.7 ft)
重量
110 g (0.24 lb)
Compatible Unit
Chairman unit: TS-D1000-CU
Delegate unit: TS-D1000-DU
Delegate unit: TS-D1000-DU
請下載資料以獲取完整規格。
可選配件
The ergonomically designed short stem microphone shall be able to simply plug into an associated chairman or delegate unit via the built-in XLR connector and shall have a frequency response of 100 Hz – 13 kHz with a sensitivity of -37dB.
The microphone shall be of an electret condenser type that will provide optimum performance.
The microphone shall have a red ring at the top that shall illuminate when active indicating its status to others.
The microphone shall be finished with a black stainless steel gooseneck with an overall length of 518 mm (1.7’) and shall weigh 110 g (0.24 lb.)
Applicable units: TS-1000-CU chairman unit, TS-1000-DU delegate unit manufactured by TOA Corporation
Manufacturer: TOA Corporation
Model: TS-D1000-M1
