TS-922
議席單元
TS-922

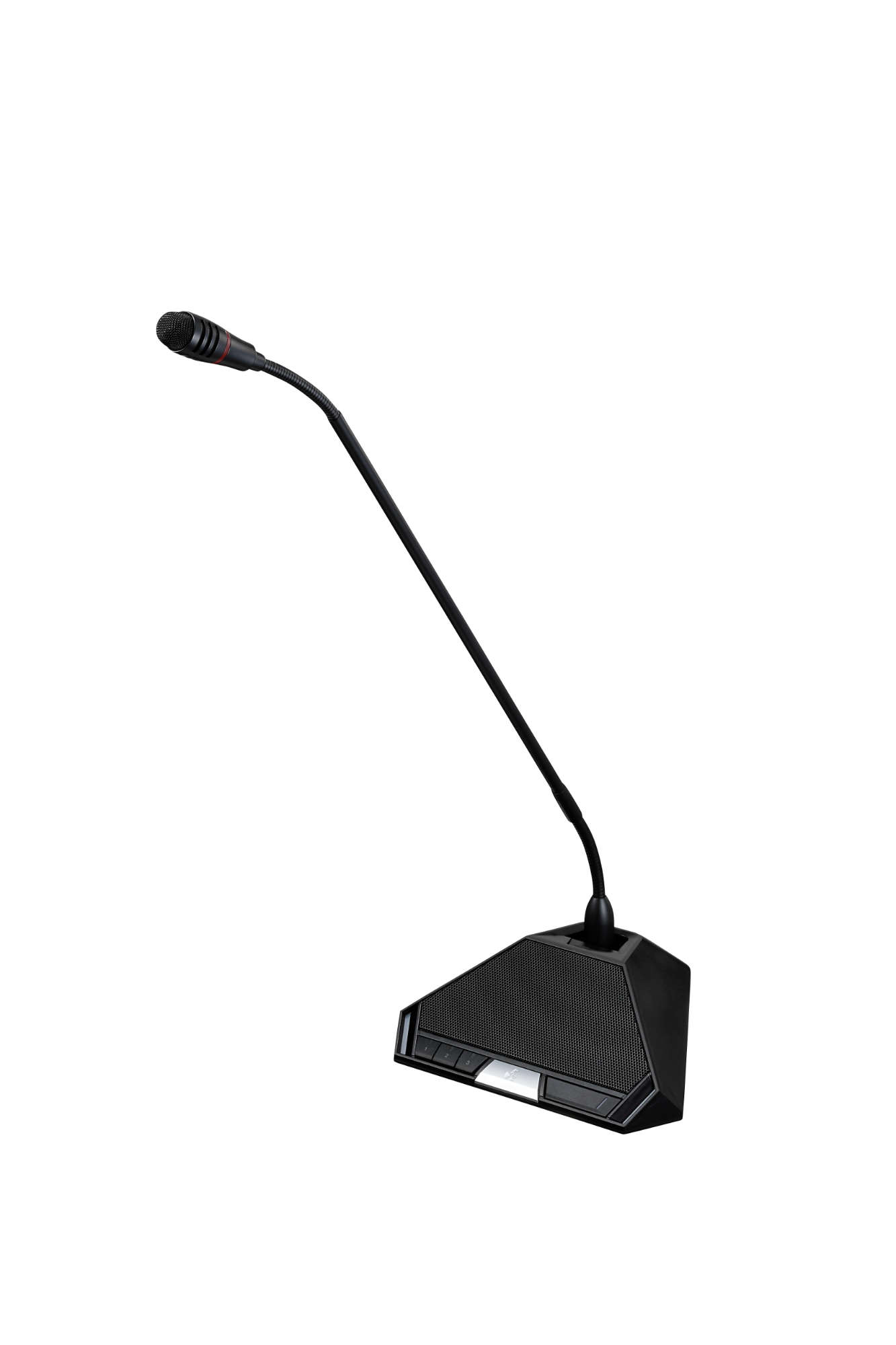

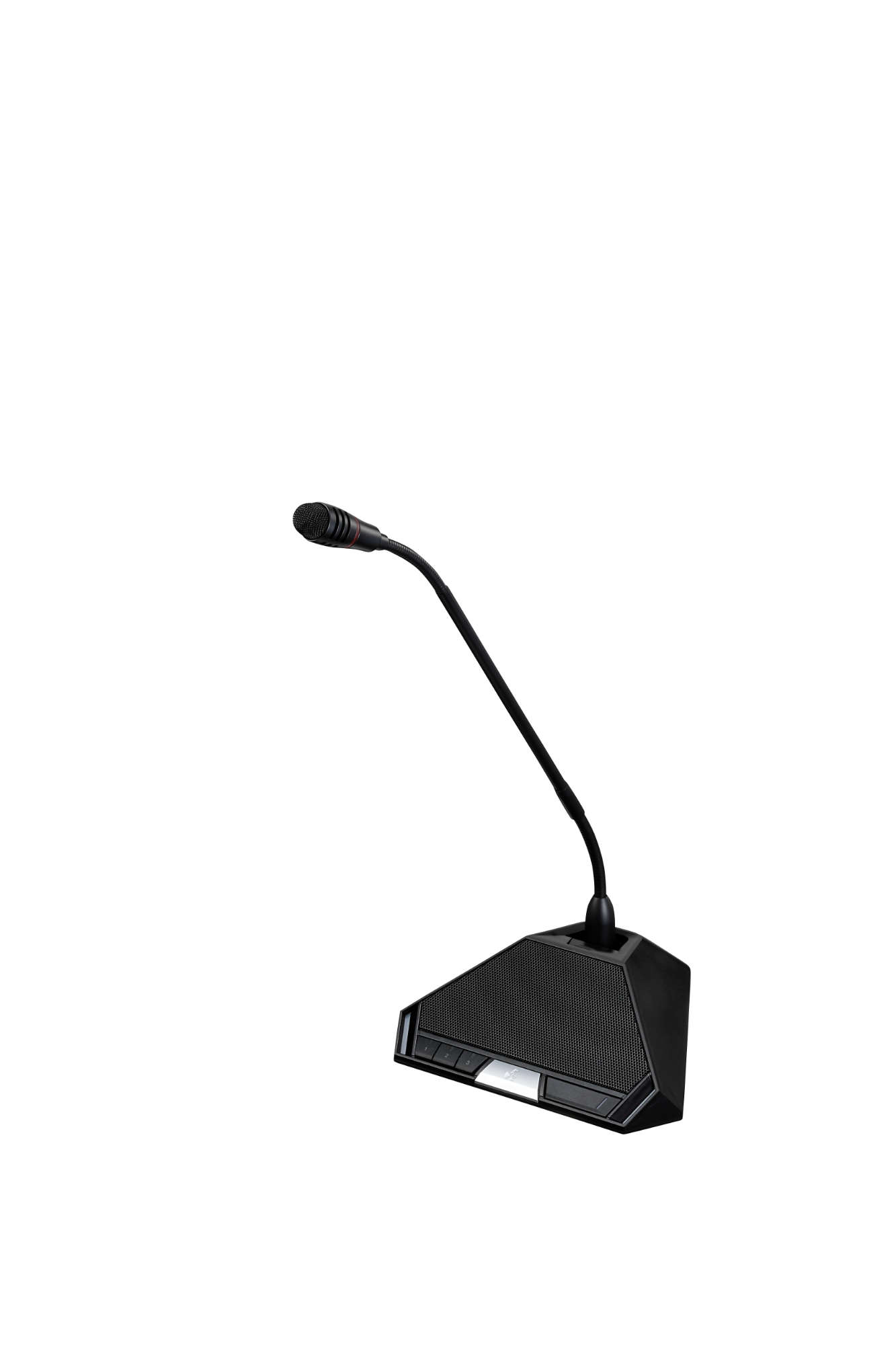

TS-922是紅外線會議系統的代表單元。由於該系統是無線的，因此可以輕鬆安裝和拆卸。它可以使用 AD-0910 交流電適配器或 BP-900A 鋰離子電池進行操作。它配備了剩餘電量指示器。 TS-922 有兩種類型的專用麥克風作為可選產品：TS-923、TS-903 標準型和 TS-924、TS-904 長型。
- 基本討論代表單元
- 配備投票功能
- 0.2W監聽音箱
- 音頻監聽開關（主副）
- 2 個帶有獨立音量控制的耳機插孔
- 約。使用選購的可充電鋰離子電池可連續運作 10 小時
電源
7.2 V DC (supplied from optional lithium-ion battery), 9 V DC (supplied from optional AC adapter)
消耗電流
Max. 390 mA
Infrared Emitter/Detector
Infrared Emitter/Detector
輸入
Microphone terminal: XLR-4-31 type
輸出
Monitor speaker: 8 Ω, 0.2 W
Headphone: Ø3.5 mm mini Jack (3P:monaural) x 2
Headphone: Ø3.5 mm mini Jack (3P:monaural) x 2
LED指示燈
Speech indicator, Voting status indicators 1 -3, Power indicator
功能
Monitor volume control, Headphone volume control, Voting function, Monitor selector switch (MAIN/SUB)
電池使用壽命
Approx. 10 hours
工作溫度
0 °C to +40 °C (32 °F to 104 °F)
工作濕度
90 %RH or less (no condensation)
外觀
Case: PC resin, black
Speaker net: black, mat finish, paint
Speaker net: black, mat finish, paint
尺寸
205.7 (W) x 70.3 (H) x 164.2 (D) mm (8.1 x 2.77" x 6.46")
重量
525 g (1.16 lb)
選配品
Microphone: TS-923, TS-903, TS-924, TS-904 (Select either one.)
請下載資料以獲取完整規格。
The Delegate Unit shall have base language/translation language selection function. The Delegate Unit shall provide microphone-input terminal using the combined type of XLR-4-31 connector for the (optional) standard microphone or the (optional) long microphone. The Delegate Unit shall include a monitor speaker (8 ohms, 0.2 watts) and two of headphone mini jacks. The monitor speaker volume and two headphone outputs volume shall be adjustable. The Delegate Unit shall include an LED indicator, which shall provide a speech indicator, power indicator / low battery indicator and out of communication range indicator. The Delegate Unit shall operate on 7.2V DC (using the optional Lithium-Ion Battery) or 9V DC (using the optional AC Power Supply). Two types of dedicated microphones shall be available as optional products: the standard type and the long type. The Delegate Unit shall weigh 525g (1.16 lbs) and be constructed of PC resin with black finish. The dimensions shall be 205.7 (W) x 70.3 (H) x 164.2 (D) mm (8.10" x 2.77" x 6.46").
The Delegate Unit shall be the TOA model TS-922.
The standard microphone shall be the TOA model TS-923.
The long microphone shall be the TOA model TS-924.
The AC Power Supply shall be the TOA model AD-0910.
The Lithium-Ion Battery shall be the TOA model BP-900A.
