TS-921
主席單元
TS-921

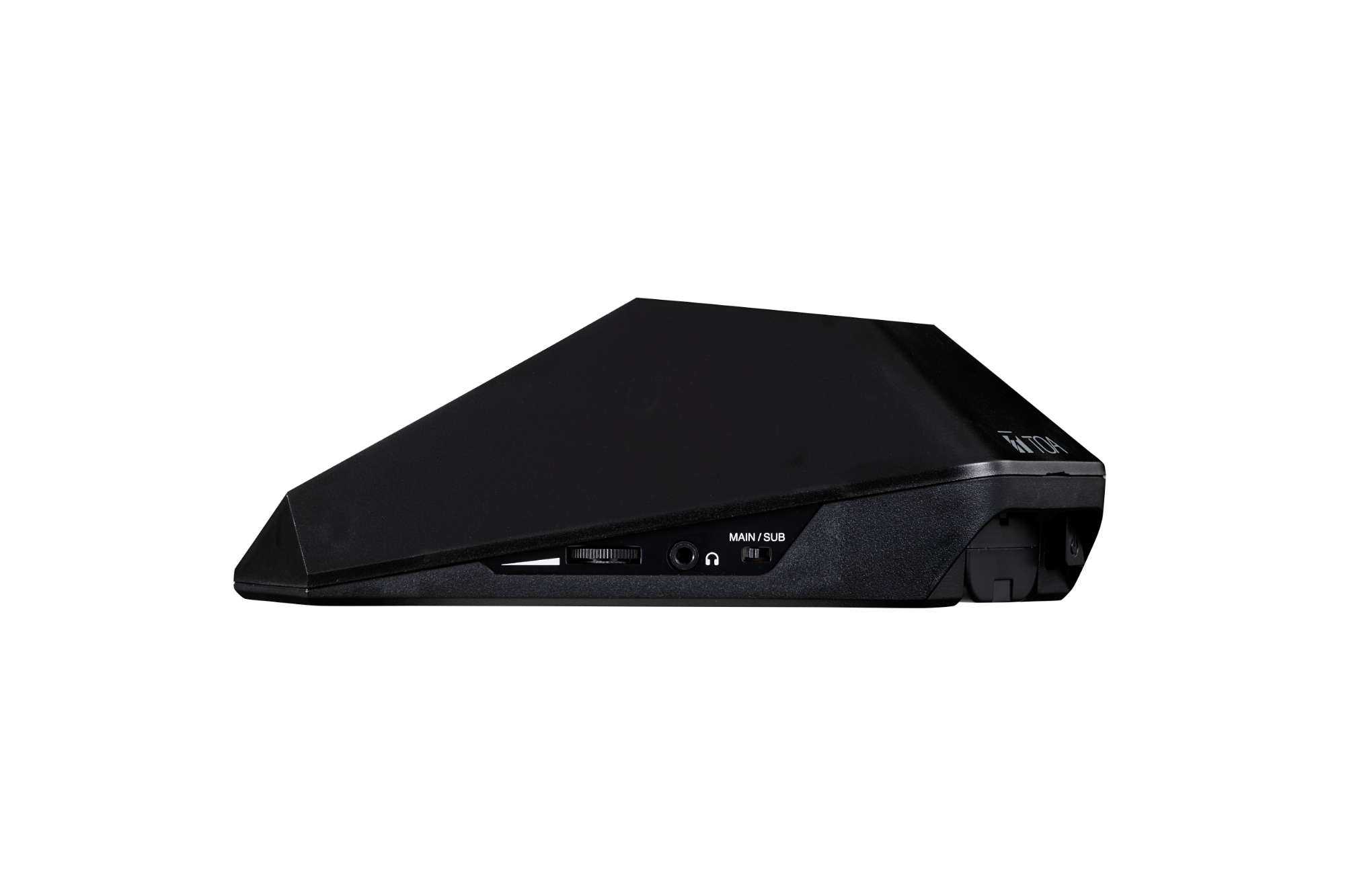

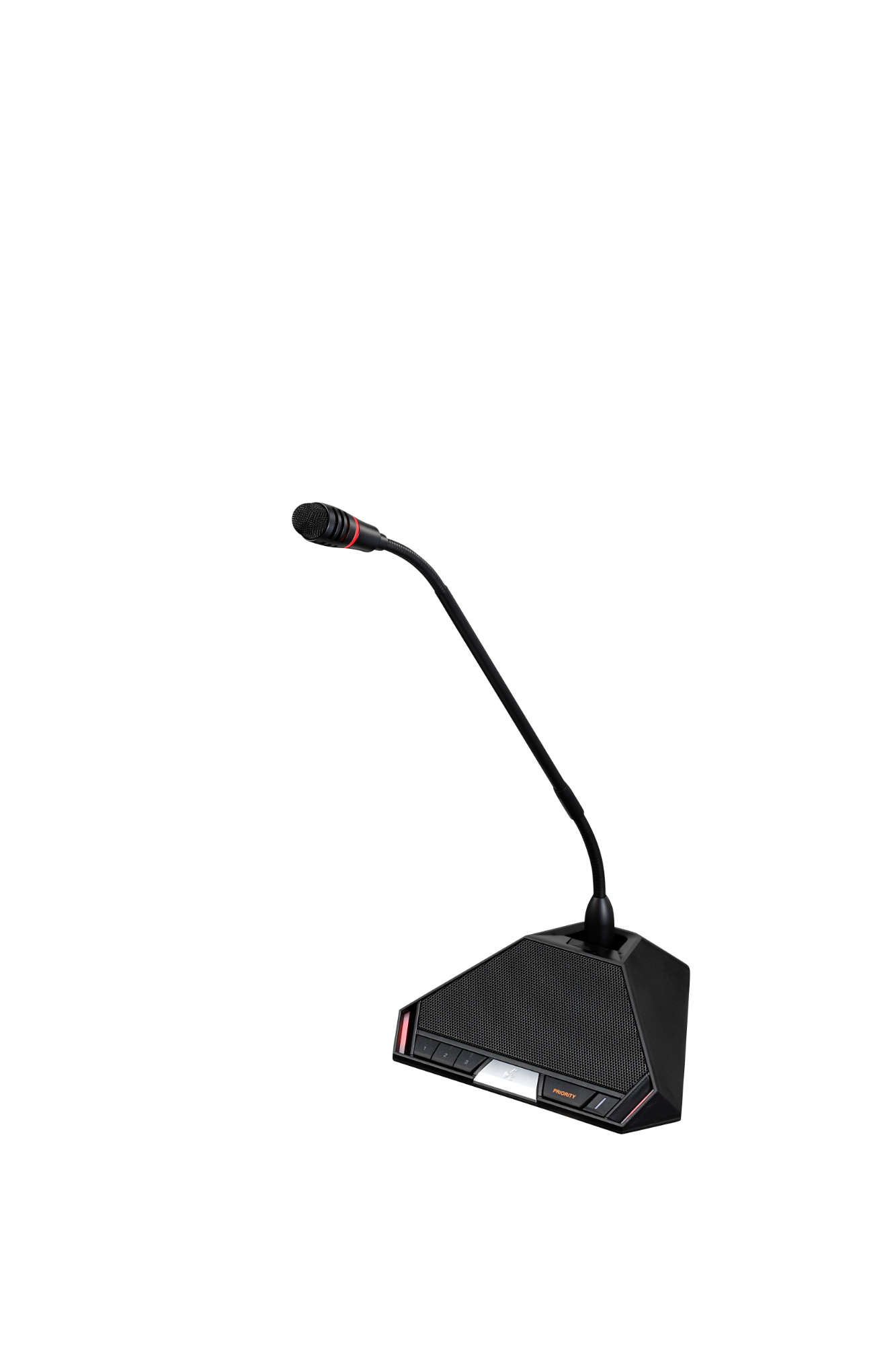

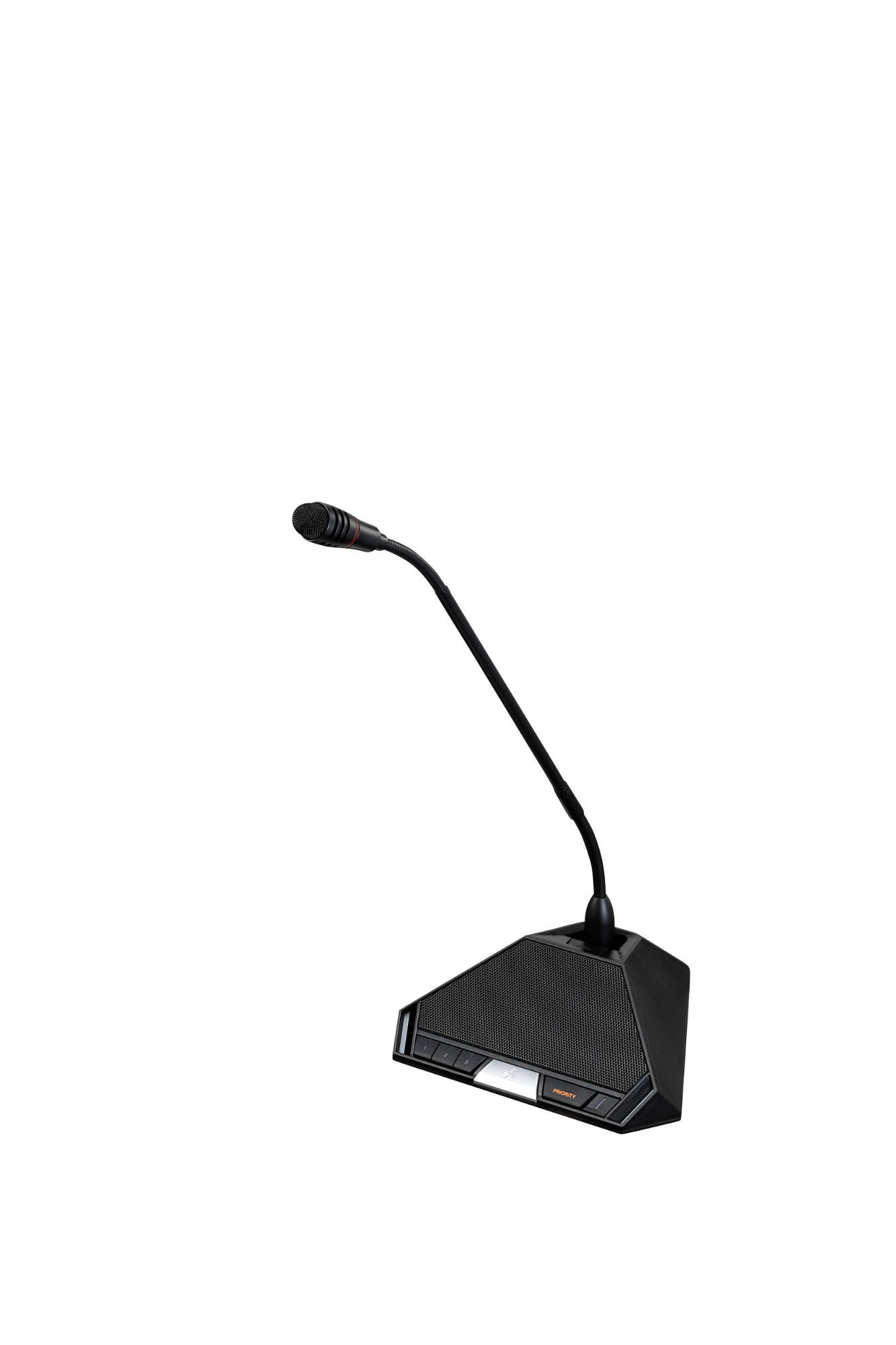

TS-921是紅外線會議系統的主席單元。由於該系統是無線的，因此可以輕鬆安裝和拆卸。主席單元具有優先發言鍵，使其在發言時優先於 TS-922 代表單元。它可以使用 AD-0910 交流電適配器或 BP-900A 鋰離子電池進行操作。它配備了剩餘電量指示器。 TS-921 有兩種類型的專用麥克風作為可選產品：TS-923、TS-903 標準型和 TS-924、TS-904 長型。
- 主席單元進行基本討論
- 優先按鈕
- 配備投票功能
- 0.2W監聽音箱
- 音訊監聽開關（主或副
- 2 個附獨立音量控制的耳機插孔
- 約2 個耳機插孔使用選購的可充電鋰離子電池可連續運作 10 小時
電源
7.2 V DC (supplied from optional lithium-ion battery), 9 V DC (supplied from optional AC adapter)
消耗電流
Max. 390 mA
Infrared Emitter/Detector
Infrared Emitter/Detector
輸入
Microphone terminal: XLR-4-31 type
輸出
Monitor speaker: 8 Ω, 0.2 W
Headphone: Ø3.5 mm mini Jack (3P:monaural) x 2
Headphone: Ø3.5 mm mini Jack (3P:monaural) x 2
LED指示燈
Speech indicator, Voting status indicators 1 -3, Power indicator
功能
Monitor volume control, Headphone volume control, Priority speech function, Voting function, Monitor selector switch (MAIN/SUB)
電池使用壽命
Approx. 10 hours
工作溫度
0 °C to +40 °C (32 °F to 104 °F)
工作濕度
90 %RH or less (no condensation)
外觀
Case: PC resin, black
Speaker net: black, mat finish, paint
Speaker net: black, mat finish, paint
尺寸
205.7 (W) x 70.3 (H) x 164.2 (D) mm (8.1 x 2.77" x 6.46")
重量
525 g (1.16 lb)
選配品
Microphone: TS-923, TS-903, TS-924, TS-904 (Select either one.)
請下載資料以獲取完整規格。
The Chairman Unit shall feature a priority speech key, which allows it to take precedence over the Delegate Unit when speaking. The unit shall have base language/translation language selection function. The Chairman Unit shall provide microphone-input terminal using the combined type of XLR-4-31 connector for the (optional) standard microphone or the (optional) long microphone. The Chairman Unit shall include a monitor speaker (8 ohms, 0.2 watts) and two of headphone mini jacks. The monitor speaker volume and two headphone outputs volume shall be adjustable. The Chairman Unit shall include an LED indicator, which shall provide a speech indicator, power indicator / low battery indicator and out of communication range indicator. Built-in DIP switch on its bottom shall enable the following settings: Priority operation setting, Priority chime mute setting, and Priority speech key operation setting. The Chairman Unit shall operate on 7.2V DC (using the optional Lithium-Ion Battery) or 9V DC (using the optional AC Power Supply). Two types of dedicated microphones shall be available as optional products: the standard type and the long type. The Chairman Unit shall weigh 525g (1.16 lbs) and be constructed of PC resin with black finish. The dimensions shall be 205.7 (W) x 70.3 (H) x 164.2 (D) mm (8.10" x 2.77" x 6.46").
The Chairman Unit shall be the TOA model TS-921.
The standard microphone shall be the TOA model TS-923.

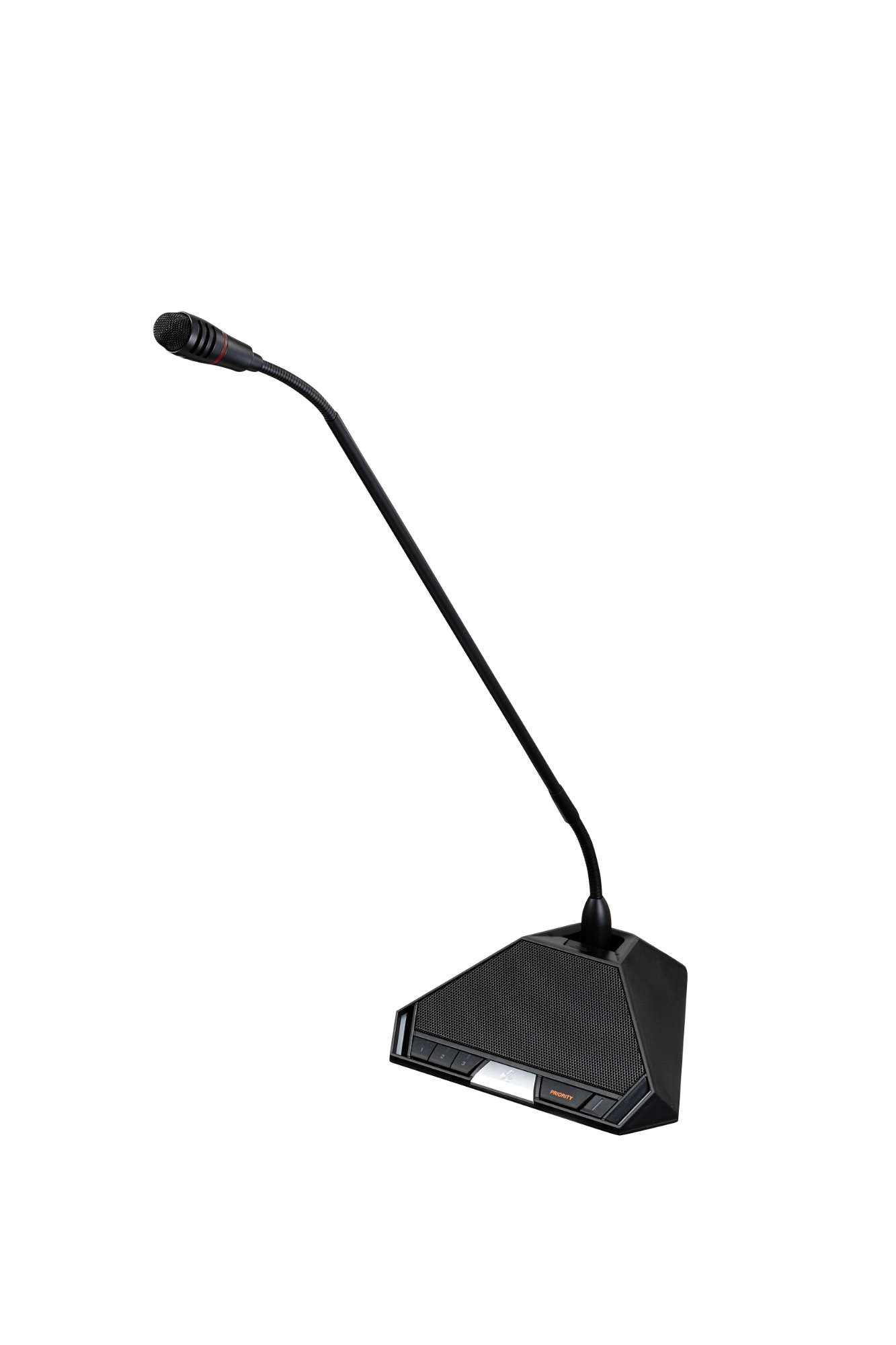

The long microphone shall be the TOA model TS-924.
The AC Power Supply shall be the TOA model AD-0910.
The Lithium-Ion Battery shall be the TOA model BP-900A.
