TS-920RC
中央控制單元
TS-920RC
TS-920RC是紅外線會議系統的中央單元，安裝方便，佈局靈活。透過連接 TS-905/907 紅外線發射器/接收器，TS-920RC 可以透過無線紅外線訊號控制主席單元和代表單元。它具有安裝確認功能，可驗證紅外線發射器/接收器和主席/代表單元的連接狀態，以及投票功能。 TS-920RC還配備了FBS（回饋抑制），可以有效控制聲音回饋。此外，該裝置還採用 MP3 錄音機，可將所有會議內容錄製到連接的 USB 儲存驅動器或內部記憶體中。此系統可由PC（*1）控制。透過使用選購的機架安裝支架，可以將其安裝在 EIA 標準配備機架（4 單元尺寸）中。
- TS-920 系列會議系統主機
- 最多可控制 192 個會議單元
- 2 個麥克風輸入（主/副）、3 個AUX 輸入（主/副/主和副）線路輸出、錄音輸出、耳機監聽輸出、EQ 輸入/輸出
- 功能設定–開啟麥克風的數量、自動關閉麥克風功能、語音優先選擇器、反饋抑制器
- USB 和內存錄音功能
- 投票結果指示器
- 可透過MB-TS920 選用支架安裝在機架上
電源
100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter)
消耗功率
72 W
消耗電流
Max. 3 A DC (when 24 V DC is supplied from the accessory AC adapter)
輸入
MIC 1 (Base Language): -60 dB (*2) , 600 Ω, unbalanced, Ø6.3 mm phone jack (2P)
MIC 2 (Translation Language): -60 dB (*2) , 600 Ω, unbalanced, Ø6.3 mm phone jack (2P)
AUX 1 (Base Language): -20 dB (*2) , 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
AUX 2 (Translation Language): -20 dB (*2) , 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
AUX 3 (Base and Translation Language): -20 dB (*2) , 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
MIC 2 (Translation Language): -60 dB (*2) , 600 Ω, unbalanced, Ø6.3 mm phone jack (2P)
AUX 1 (Base Language): -20 dB (*2) , 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
AUX 2 (Translation Language): -20 dB (*2) , 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
AUX 3 (Base and Translation Language): -20 dB (*2) , 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
輸出
LINE: -10 dB (*2), 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
REC: -10 dB (*2), 10 kΩ, unbalanced, RCA pin jack
HEADPHONES: Ø3.5 mm mini jack (3P:monaural)
REC: -10 dB (*2), 10 kΩ, unbalanced, RCA pin jack
HEADPHONES: Ø3.5 mm mini jack (3P:monaural)
外部EQ輸入/輸出
Input: -20 dB (*2), 10 kΩ, unbalanced, RCA pin jack
Output: -20 dB (*2), 10 kΩ, unbalanced, RCA pin jack
Output: -20 dB (*2), 10 kΩ, unbalanced, RCA pin jack
LED指示燈
Voting result indicators 1 - 3 (7-segment LED, 3 digits), Short-circuit indicator, Audio signal receiving indicators 1 - 4 CH, Data signal receiving indicator, External control priority indicator, External control communication indicator, Battery indicator (flashes when a Chairman/Delegate unit's battery nears complete discharge), Recording status indicator, Format in-progress indicator, Access Indicator, Internal memory status indicator, USB memory status indicator, Remaining internal memory capacity warning indicator, Remaining USB memory capacity warning indicator
可連接席數
192 units
Number of Connectable Infrared Transmitter/Receiver Units
Up to 4 units (with the use of distributor, up to 16 units connectable
when they are all TS-905, and up to 12 units when they are all TS-907, or TS-905 and TS-907 are used in combination)
when they are all TS-905, and up to 12 units when they are all TS-907, or TS-905 and TS-907 are used in combination)
Infrared Transmitter/Receiver I/O Terminal
BNC jacks
External Control Connection Terminal
D-sub connector (9P, male)/USB-B selectable
Record Switch
Recording start button, Recording stop button, Format button
Recording Port
USB-A (for USB memory devices) and USB Mini-B (for PCs)
錄音功能
Recordings can be made to a USB memory device (*3) or the internal memory.
Recording format: MP3 (MPEG-1 Audio Layer-3), monaural
Sampling frequency: 32 kHz, Bit rate: 128 kbps
Recording format: MP3 (MPEG-1 Audio Layer-3), monaural
Sampling frequency: 32 kHz, Bit rate: 128 kbps
Function Switch
Number of open microphones setting switch: 1/2/3/4
Mic-off setting switch: TIME OUT ON/OFF
Speech priority selector switch: FIRST (First-in-first-out priority)
LATEST (Last-in-first-out priority)
FIRST:FIXED NEXT:LATEST (Priority fixed for the first unit, and last-in-first-
out priority for all other subsequent units.)"
FBS switch: AUTO/OFF/EXT
Mic-off setting switch: TIME OUT ON/OFF
Speech priority selector switch: FIRST (First-in-first-out priority)
LATEST (Last-in-first-out priority)
FIRST:FIXED NEXT:LATEST (Priority fixed for the first unit, and last-in-first-
out priority for all other subsequent units.)"
FBS switch: AUTO/OFF/EXT
工作溫度
0 °C to +40 °C (32 °F to 104 °F)
工作濕度
90 %RH or less (no condensation)
外觀
面板:表面處理的鋼板，黑色，噴塗，三分光澤
重量
2.8 kg (6.17 lb)
選配品
Rack mounting bracket: MB-TS920
(*2) 0 dB = 1 V
(*3) A USB 2.0-compatible FAT32-formatted flash memory device of up to 32 GB in capacity can be used. There may be cases in which a USB flash drive cannot be used with the TS-920RC, depending on the drive's attributes or recording conditions.
(*3) A USB 2.0-compatible FAT32-formatted flash memory device of up to 32 GB in capacity can be used. There may be cases in which a USB flash drive cannot be used with the TS-920RC, depending on the drive's attributes or recording conditions.
請下載資料以獲取完整規格。
可選配件
The Central Unit shall include the following functionalities: “Number of Open Microphones Setting” shall support a well-organized meeting. One, two, three or four persons can be allowed to talk at the same time to prevent the confusion that could result from multiple participants all speaking at once. “Speech Priority Setting Function” shall operate as follows: when the Talk Keys on the conference units are activated exceeding the set number of authorized speakers, microphone ON/OFF operation can be set to any of the following: First-In-First-Out, Last-In-First-Out, or First-Fixed-Next-Latest (Priority fixed for the first unit). “Auto Mic-Off Function” shall prevent leaving the microphone on inadvertently. When this function is activated, the microphone shall automatically switch itself off after a 30-second period of silence. “Installation Status Checkup Function” shall allow a user to confirm the state of communication at a glance. If activated on the Central Unit, the microphone indicators in the Chairman/ Delegate Units light up. “Feedback Suppressor (FBS) Function” shall be able to locate up to seven feedback frequencies and set notch filters to eliminate them. “Recording Function” shall allow recording audio in mp3 format. Audio files shall be stored to a supplied 1 GB internal memory or additional USB drives (up to 32 GB). With the use of an optional rack mounting bracket, it can be mounted in an EIA standard equipment rack (4-unit size).
The conference system software is available. The software enables setup of Graphic User Interface configuration, camera control and audio. It is able to control 192 conference delegate units and up to 4 IP HD cameras. Clear image of the active speaker shall be captured by the camera.

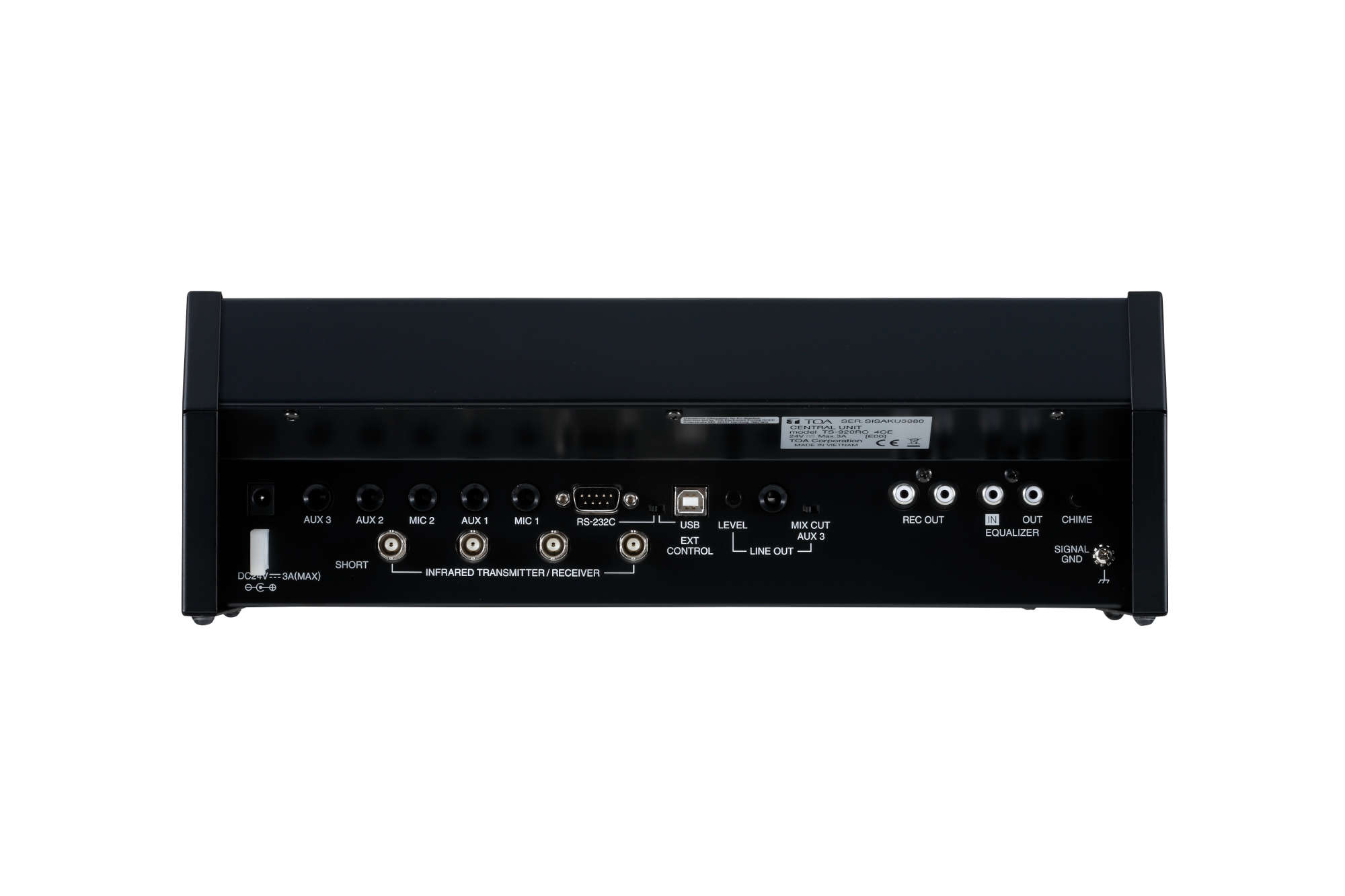

The Central Unit shall provide two external microphone inputs: phone jack (600 ohms, -60 dBV, unbalanced), three auxiliary inputs: phone jack (10k ohms, -20 dBV, unbalanced), auxiliary outputs: phone jack (10k ohms, -10 dBV, unbalanced), RCA jack (10k ohms, -10 dBV, unbalanced), headphone mini jack, and external control terminal: D-sub connector 9P or USB-B.

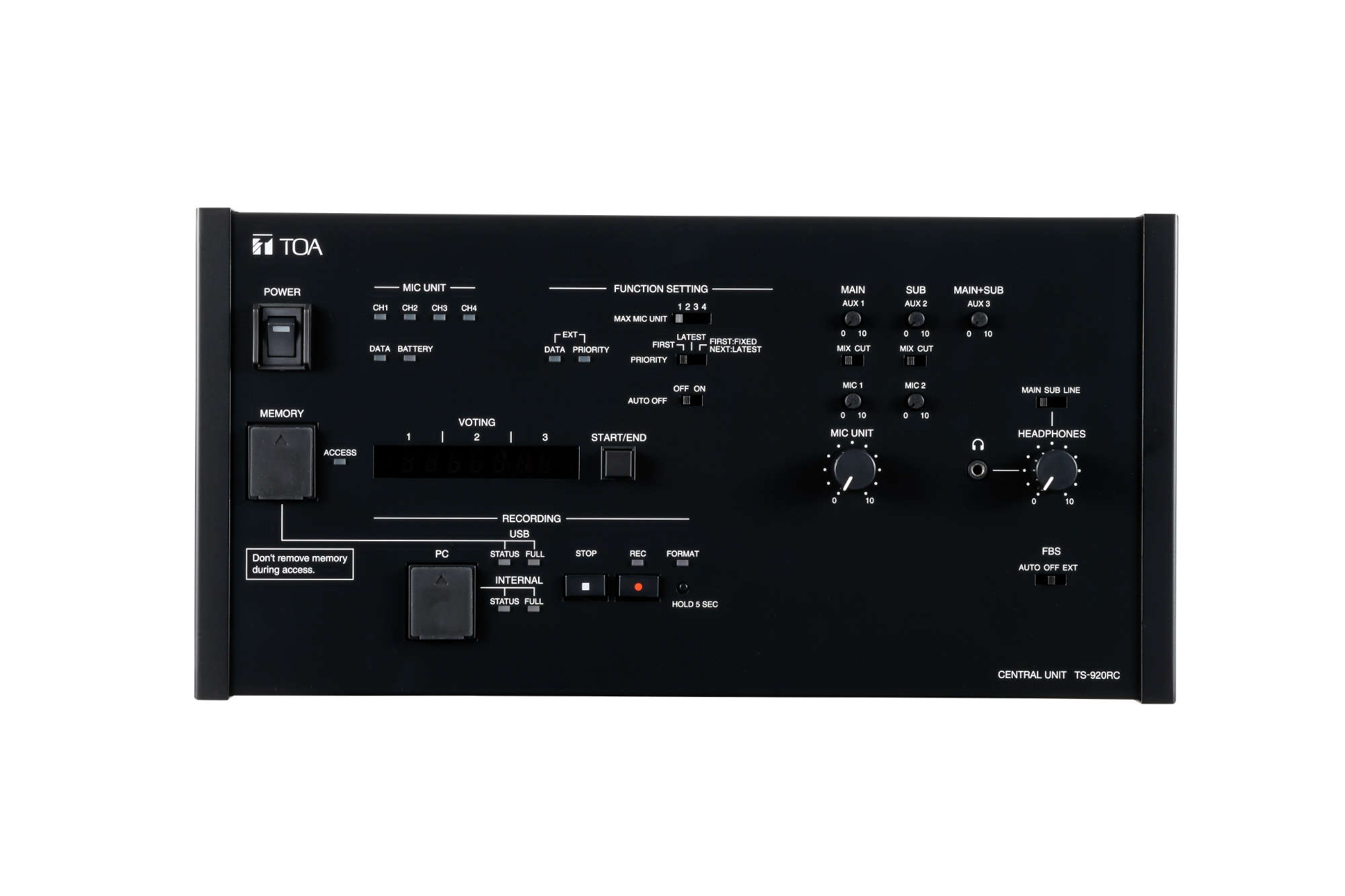

The optional Infrared Transmitter/Receiver shall be connectable to the BNC jacks on the rear panel. Speech volume control shall be located on the front panel and adjust the microphone volume of the Chairman Unit and Delegate Unit.
Priority chime volume control shall adjust the output volume of the chime tone that sounds when the Priority Speech Key on the Central Unit is pressed.
Power requirement shall be 100-240 VAC, 50/60 Hz, maximum 72 W power consumption (using the provided AC Power Supply). Operating temperature range shall be 0°C to 40°C (32°F to 104°F).
The Central Unit shall weigh 2.8 kg (6.17 lbs) and be constructed of surface-treated steel plate with black metallic paint, semi-gloss finish. The dimensions shall be 361 (W) x 122.6 (H) x 179.8 (D) mm (14.21" x 4.83" x 7.08").
The Central Unit shall be the TOA model TS-920RC.
The rack mounting bracket shall be the TOA model MB-TS920.
The Infrared Transmitter/Receiver shall be the TOA model TS-905 or TS-907.
