SX-2000CO
控制輸出裝置
SX-2000CO

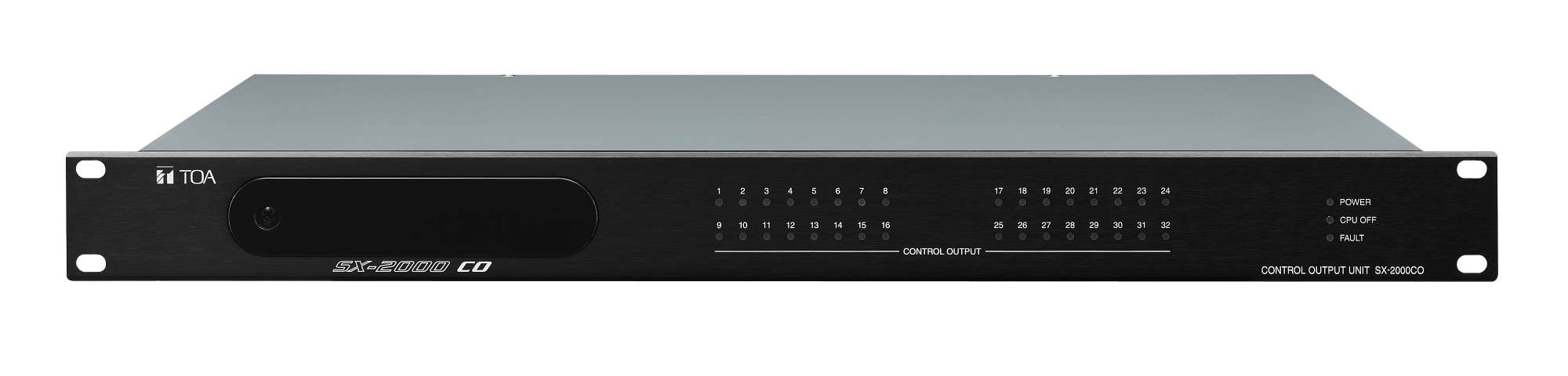

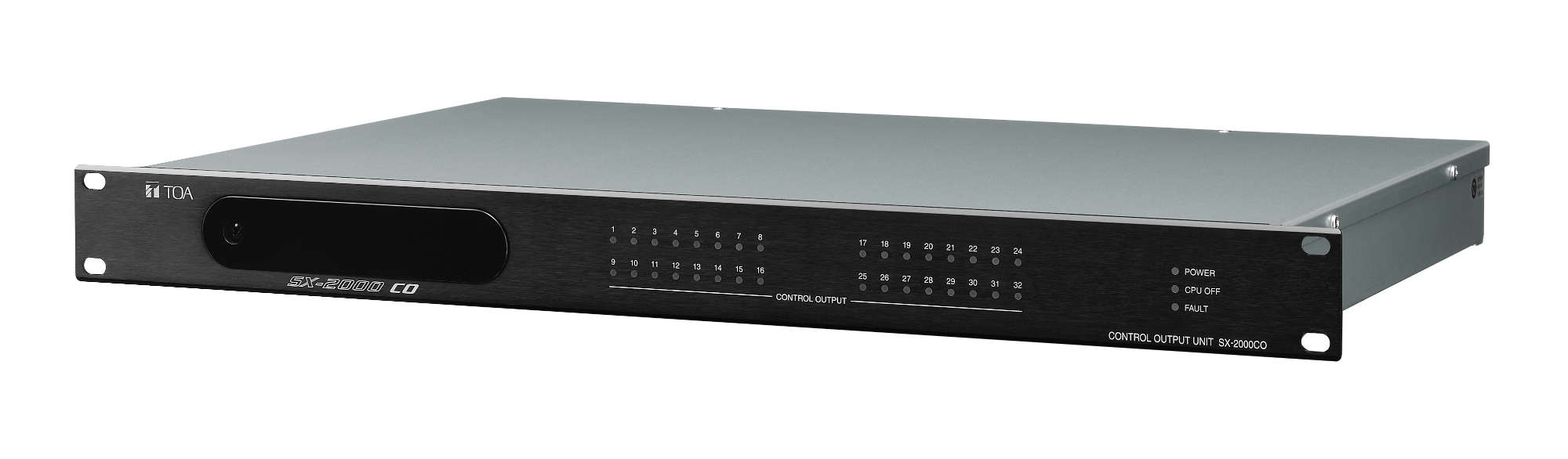

SX-2000CO 是矩陣系統的控制輸出，可安裝在 EIA 設備機架（1 U 尺寸）。多個單元可以分散在整個系統中。配備32個控制輸出通道。前面板上的指示燈監視控制輸出線的狀態。 SX-2000CO有兩個電源輸入，可以支援雙冗餘電源系統。採用單機模式，系統只需配置SX-2000CO、SX-2000CI控制輸入單元和電源單元，即可透過簡單的接線將多個通道的接點資料傳輸到遠端位置。
- 32 個控制輸出
- 前面板LED 用於監控線路狀態
- 提供穩定的24 V DC 電源
- 2 個獨立電源輸入
- 可以分散安裝多個單元
- RJ45 連接器

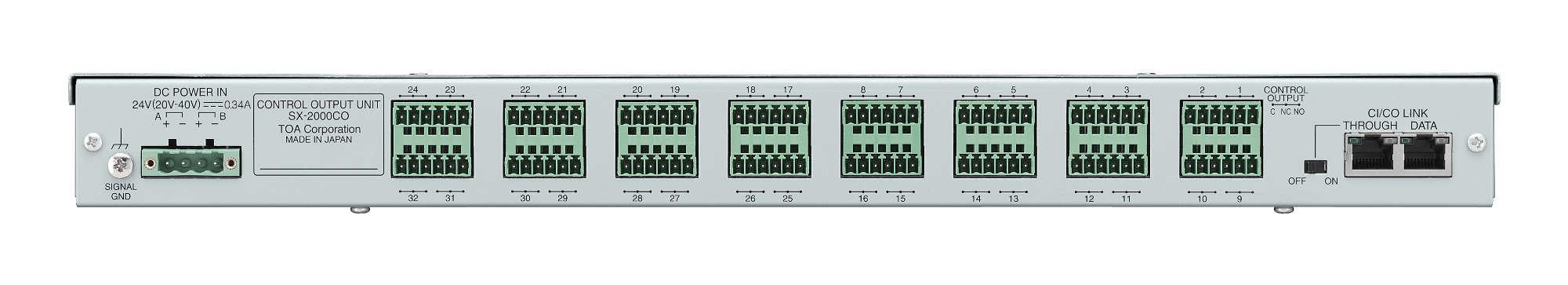

Control output unit for installation in 19-inch cabinet racks (IEC 60297) with 32 control outputs via relay changeover contacts, so that normally closed and normally open can be used. The activation of each single control output will be shown at the front by means of LEDs. The connection is via detachable connectors. Redundant power supply for reliable power supply. Supervised access to the system via RJ45 jacks. Additional RJ45 connector for control input unit. More ads for supply voltage, collective fault signal and activated analog reserve way.
