SR-S4LWP
室外用陣列喇叭
SR-WB4WP
Wall Mounting Bracket
SR-WB4WP
The SR-WB4WP bracket is used to mount the SR-S4LWP Line array speaker upright to the wall.
- outdoor use
Number of Speakers to be Mounted
Max. 2 (when jointed with an optional SR-EP4WP)
外觀
Stainless steel
重量
4.3 kg (including accessories)
附屬品
Bracket assembling screw (M8 upset head) …8
Product Composition

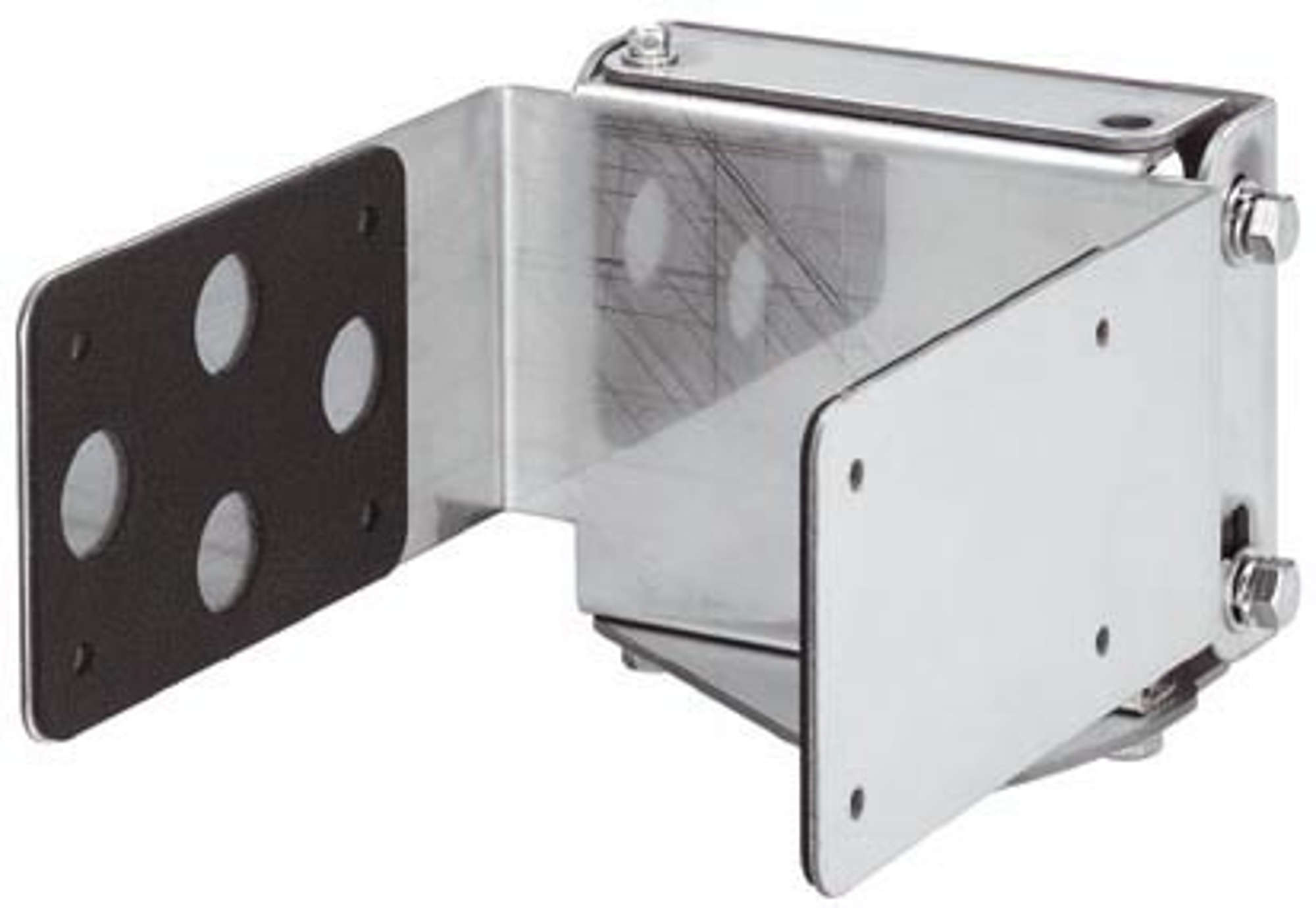

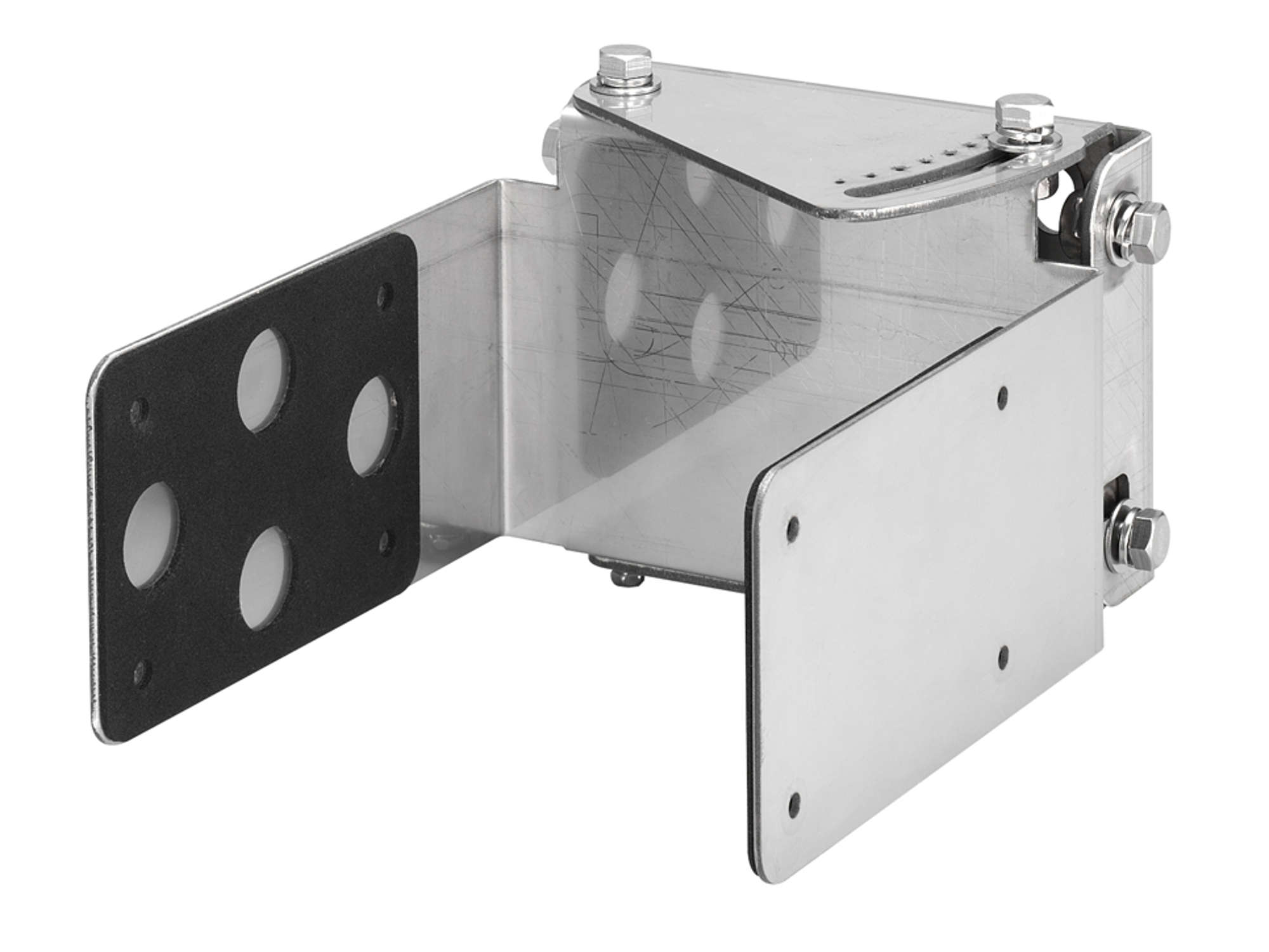

Speaker mounting bracket A …1, Speaker mounting bracket B …1,
Bracket base …2
Bracket base …2
選配品
Extension plate: SR-EP4WP
Note: The speaker fixing screws are not supplied with the unit. Use the attached screws on both sides of speaker.
請下載資料以獲取完整規格。
支援產品
Weatherproof wall mounting kit for one or two (with SR EP4WP) slim line array speaker SR S4LWP, swiveling according to mounting horizontally to 30 ° to the left or right, including all accessories for mounting the speaker. Solid construction made of stainless steel.
