SR-T5
陣列式喇叭(防撞擊型)
SR-T5

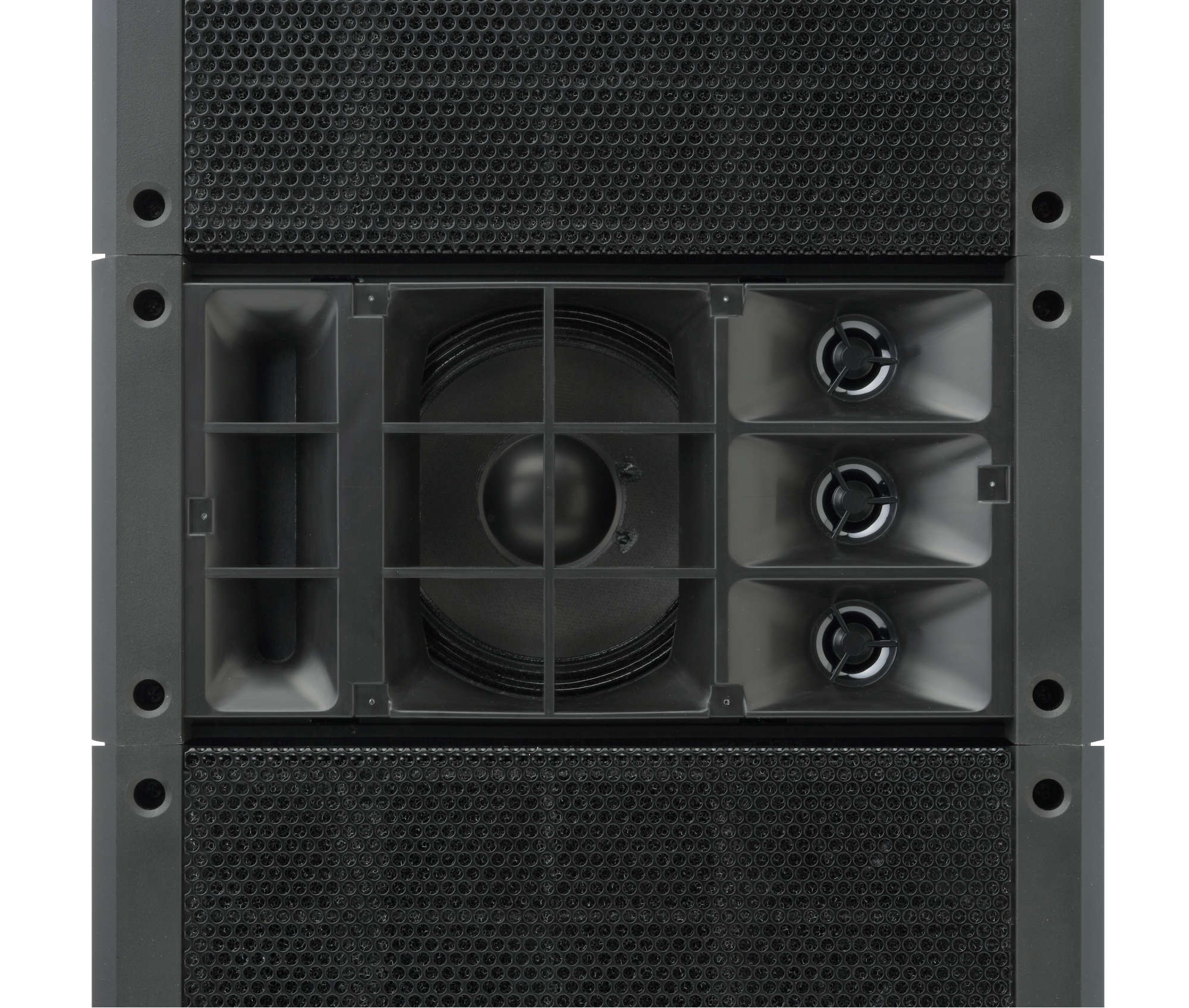

SR-T5 是一款 2 路線陣列揚聲器，其中低音揚聲器和高音揚聲器垂直排列，彼此靠近。其出色的語音清晰度使其非常適合安裝在混響較強的體育設施中，例如體育館。堅固的抗衝擊結構使該揚聲器可用作中小型室內運動設施的主揚聲器。
- 均勻的音量和清晰的音訊輸出
- 堅固的抗衝擊結構
- 內部兩路被動分頻網路電路，適用於單放大器操作
- 堅固的抗衝擊結構
- 內部兩路被動分頻網路電路，適用於單擴大機操作
- 揚聲器的向下角度可透過配件安裝支架進行調整。
外箱型式
Bass-reflex type
輸入功率
Continuous pink noise: 250 W
Continuous program: 750 W
Continuous program: 750 W
額定阻抗
8 Ω
輸出音壓電平
96 dB (1 W, 1 m equivalent, measured at 4 m)
頻率響應
70 Hz - 20 kHz
分音頻率
3 kHz
指向性角度
Horizontal: 100°
Vertical: 35°
Vertical: 35°
喇叭組成
Low frequency: 13 cm (5.12") cone-type x 8
High frequency: Balanced dome-type x 24
High frequency: Balanced dome-type x 24
Recommended Installation Height
4 - 5.5 m (13.12 - 18.04 ft)
(Speaker top, when installed in sport facilities 30 m (98.43 ft) in length)
(Speaker top, when installed in sport facilities 30 m (98.43 ft) in length)
Adjustable Angle Range
Downward: 0°, 1°, 2°, 3° (when the supplied mounting bracket is used)
Horizontal (left or right): 5°, 10° (when the optional SR-PB5 Wall Pan Bracket
Horizontal (left or right): 5°, 10° (when the optional SR-PB5 Wall Pan Bracket
輸入端子
M4 screw terminal, distance between barriers: 10.0 mm (0.39")
外觀
Enclosure: Plywood, black, urethane paint
Baffle: Polypropylene, black
Punched net: Steel plate, black, acrylic paint
Mounting bracket: Steel plate, black, acrylic paint
Baffle: Polypropylene, black
Punched net: Steel plate, black, acrylic paint
Mounting bracket: Steel plate, black, acrylic paint
尺寸
310 (W) x 1239 (H) x 341 (D) mm (12.2" x 48.78" x 13.43")
重量
29 kg (63.93 lb) (including accessories)
附屬品
Mounting bracket A x 1, Mounting bracket B x 1, Bracket mounting bolt x 6, Side cover x 5, Side cover mounting screw x 10, Eye bolt x 1, Safety wire x 1
選配品

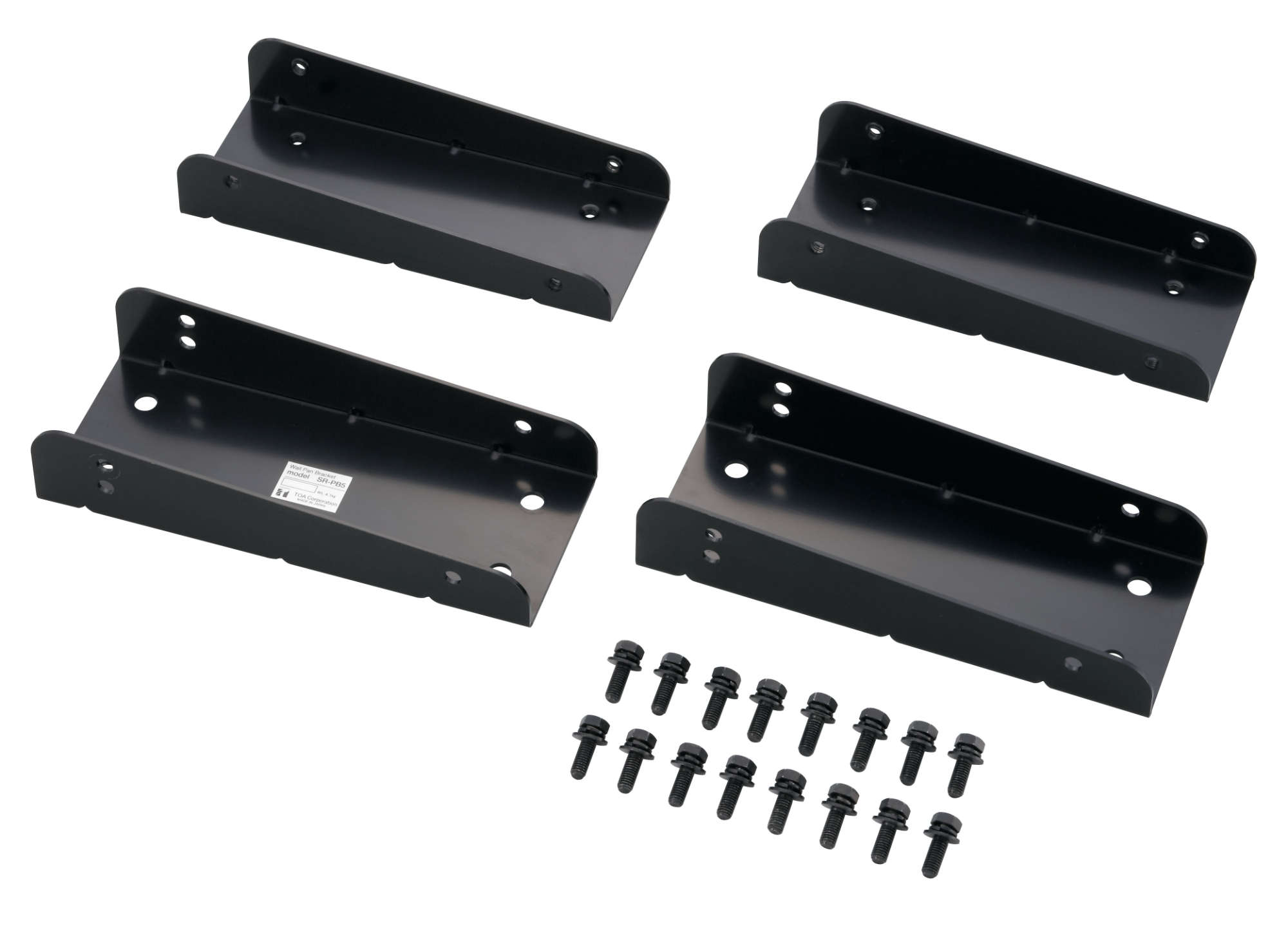

Wall pan bracket: SR-PB5
(to be used in conjunction with the supplied mounting bracket)
Matching transformer: MT-S0601
(to be used in conjunction with the supplied mounting bracket)
Matching transformer: MT-S0601
請下載資料以獲取完整規格。
可選配件
The line array speaker system shall incorporate 8 x 13 cm (5.2”) LF (low frequency) transducers and 24 small balanced dome type HF (high frequency) transducers, mounted vertically within close proximity of each other in a curved optimally vented enclosure with horizontal coverage of 100° and a vertical coverage of 35° and shall provide a true constant directivity.
The systems frequency response shall vary no more than ±3 dB from 70 Hz to 20 kHz measured on axis with an internal two-way passive crossover with a frequency crossover point of 3 kHz.
The loudspeaker shall produce a Sound Pressure Level (SPL) of 96 dB on axis at 1 meter with a power input of 1 watt equivalent, measured at 4 m (13.12 ft.) and shall be capable of producing 250 W (continuous pink noise) and 750 W (continuous program power) and shall have a nominal impedance of 8 Ohms.
The loudspeaker enclosure shall have a maximum weight of 29 kg (63.93 lb.) (including accessories) and shall measure 310 (W) x 1239 (H) x 341 (D) tapering to 99 mm (12.2" x 48.78" x 13.43" tapering to 3.9”).
The structure of the enclosure shall be impact-resistant and constructed from plywood, finished in black urethane paint and the baffle shall be constructed in black polypropylene. A curved black steel grille shall protect components. A wall-mounting bracket shall be included as well as a safety wire to prevent the loudspeaker from falling during and after installation. The loudspeaker cable connection shall be M5 screw terminal.
Optional extras Wall Pan Bracket: SR-PB5, Matching Transformer: MT-S0601, manufactured by TOA Corporation
Manufacturer: TOA Corporation
Model: SR-T5
