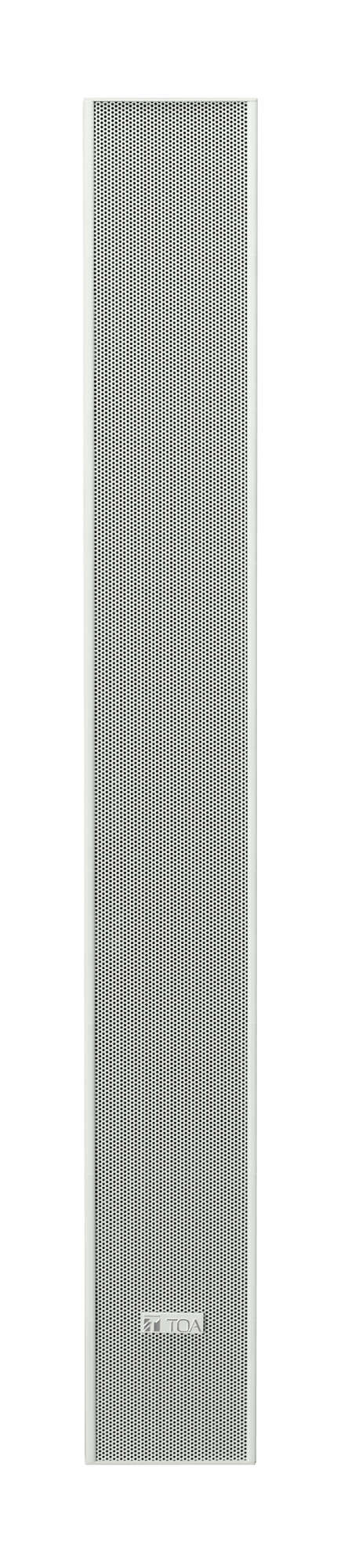

SR-H2S
室內用陣列喇叭
SR-H2S
SR-H2S 線性陣列揚聲器透過垂直排列的內部揚聲器單元形成線性聲源。透過安裝可選的 MT-S0301 匹配變壓器，它可用於高阻抗應用。
- 細長的線陣列，具有出色的指向性
- 84毫米的窄設計使揚聲器能夠很好地融入場地的室內裝飾
- Sync-Drive技術可創造理想的線性聲源
- 清晰的聲音，減少隨距離的衰減
- 無反射且抗回授
- 彎曲揚聲器模型可改善垂直分散
外箱型式
Bass-reflex type
輸入功率
Continuous program: 180 W
額定阻抗
8 Ω
輸出音壓電平
90 dB (1 W, 1 m equivalent, measured at 4 m)
頻率響應
90 Hz - 17 kHz (when recommended parameters are applied by the optional DP-SP3)
指向性角度
Horizontal: 90°, Vertical: 20°
喇叭組成
7 cm (2.8) cone-type x 9"
輸入端子
Removable input connector
外觀
Enclosure: MDF, white, urethane paint
Front grille: Punched steel plate, white, acrylic paint
Front grille: Punched steel plate, white, acrylic paint
尺寸
84 (W) x 663.4 (H) x 115 (D) mm (3.31 x 26.12" x 4.53")
重量
4.2 kg (9.26 lb)
選配品
Matching transformer: MT-S0301
請下載資料以獲取完整規格。

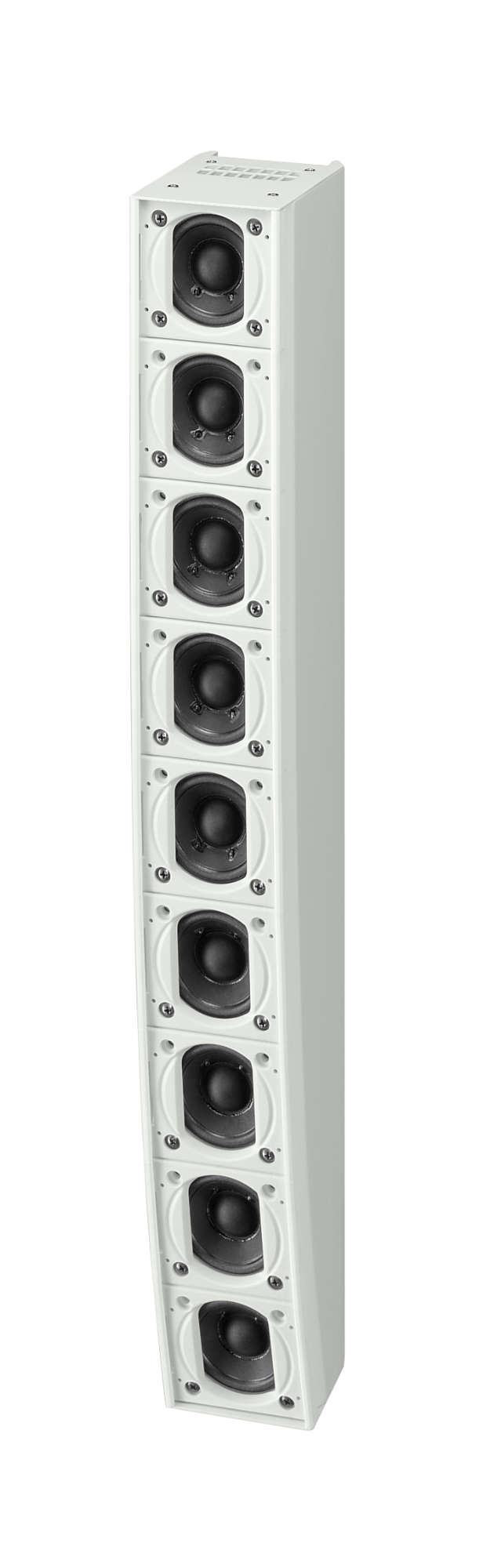

The [short throw] speaker shall be a slim profile design (84 mm in width). The speaker shall consist of nine direct-radiating 7 cm (2.8") cone-type drivers arranged in a vertical line and housed in a ported enclosure. The speaker shall have a removable input connector.
Its unique aperture front grille structure shall enhance the horizontal frequency vs. beam width response for more focused horizontal dispersion. The horizontal coverage shall be 90 degrees. The vertical coverage shall be 20 degrees. The speaker shall meet the following performance criteria. Power handling: 180 W continuous program. Frequency response (10 dB below rated sensitivity, with recommended equalization): 90 Hz to 17 kHz. Sensitivity (1 W, 1 m equivalent, measured at 4 m): 90 dB. Impedance: 8 ohms nominal. When the optional line matching transformer model MT-S0301 is installed, the available power taps shall be: for 100 V line applications :10 and 30 W (330 and 1k ohms respectively) ; for 70 V line application: 5, 15 and 30 W (170, 330 and 1k ohms respectively). The speaker enclosure shall be made of medium density fiberboard and finished with white urethane paint. The speaker grille shall be made from a single punched steel plate and finished with white acrylic paint. The dimensions (W x H x D) shall be 84 x 663.4 x 115 mm (3.31" x 26.12" x 4.53") and weight shall be 4.2 kg (9.26lb). The mounting screws shall be equipped on the rear side of the product to prevent the screws from being prominent. Available brackets for flying, and for wall, ceiling and stand mounting shall be made of steel.
The loudspeaker shall be TOA model SR-H2S.
The matching transformer shall be TOA model MT-S0301.
The flying bracket shall be TOA model SR-FB3.
The wall tilt bracket shall be TOA model SR-TB3.
The wall mounting bracket shall be TOA model SR-WB3.
The stand adapter shall be TOA model SR-SA3.
