SR-F08
二音路高效率喇叭
SR-F08
SR-F08是一款室內使用的2分頻被動揚聲器系統。該揚聲器可用於多種應用，如永久安裝和臨時安裝。
- 強大的被動式兩路揚聲器系統
- 配有全面的安裝配件，可在固定和移動安裝中設置揚聲器系統

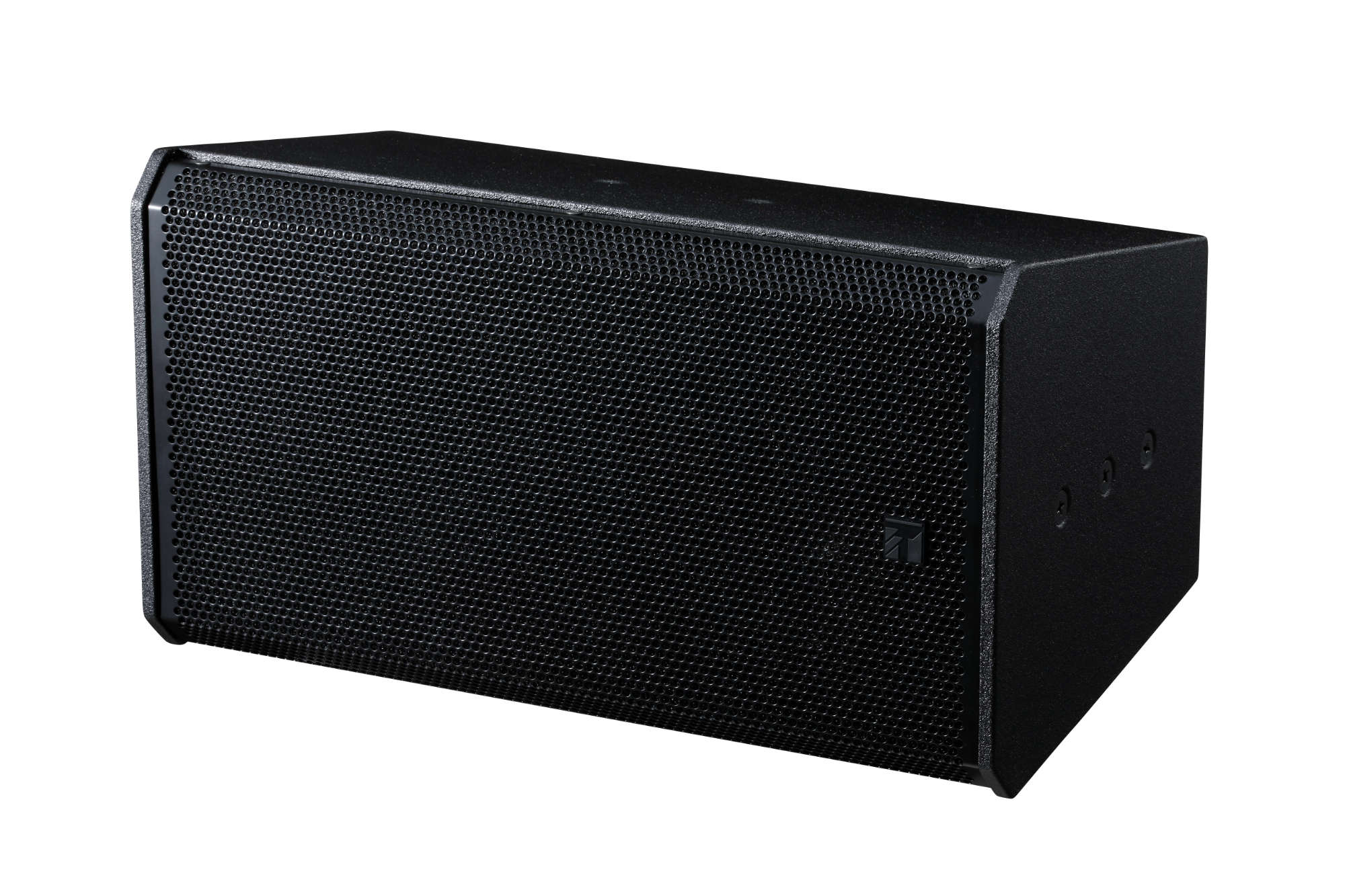

- 喇叭可旋轉90 度，根據應用水平或垂直安裝

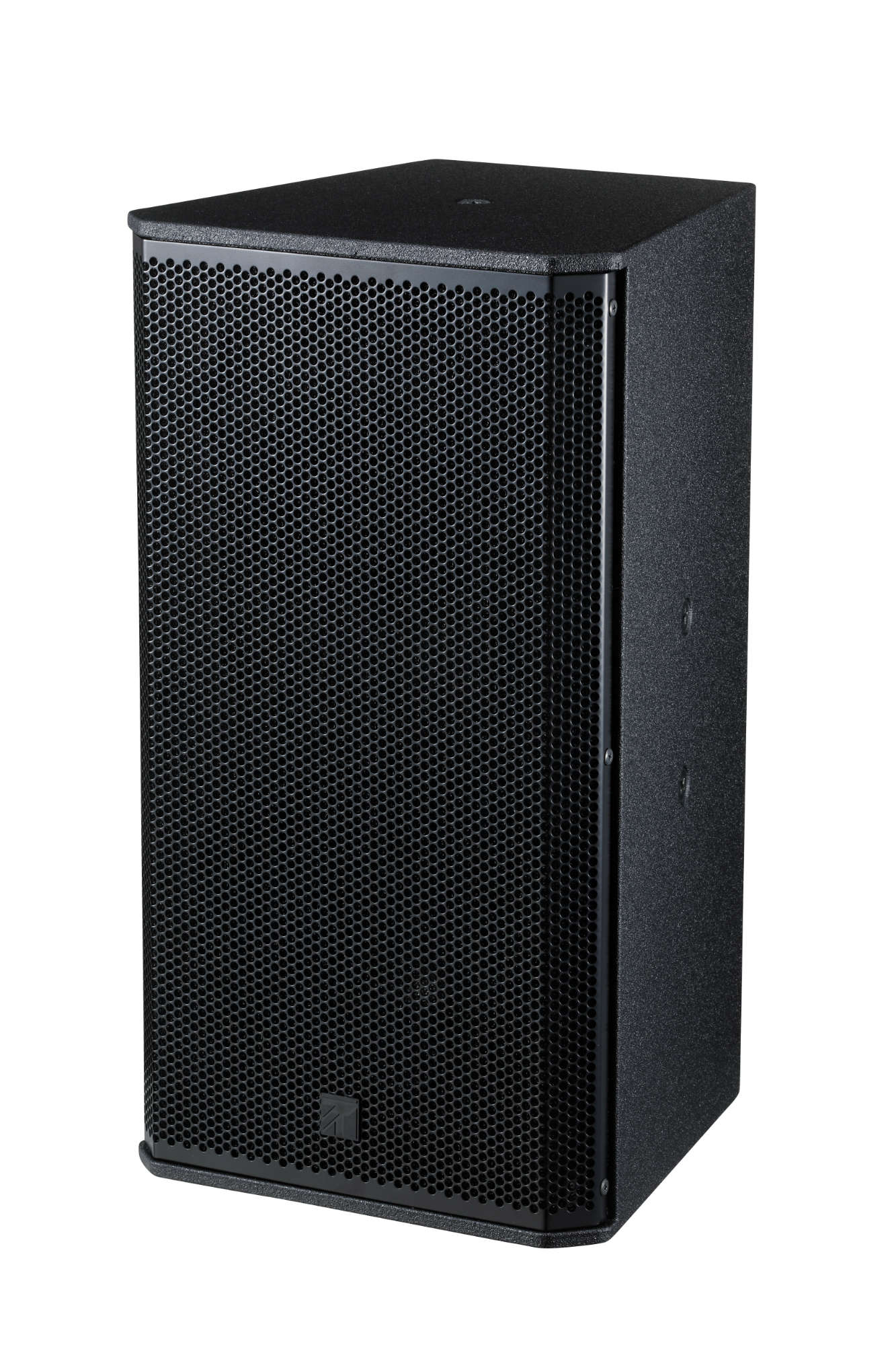

- 緊湊時尚的梯形外殼，適合任何地方
- 壓鑄鋁揚聲器框架，具有良好的剛度和強度重量比
- 樺木合板，最大限度地減少箱體本身的共振
- 聚脲塗層，可以很好地保護揚聲器表面
- 用作中小型禮堂和會議室的主揚聲器
- 用作大型音樂廳和禮拜堂的輔助揚聲器
System Type
2-way, Passive type, Bass-reflex type
輸入功率
Continuous pink noise: 120 W
Continuous program: 360 W
Continuous program: 360 W
額定阻抗
8 Ω
輸出音壓電平
91 dB (1 W, 1 m)
頻率響應
65 Hz - 20 kHz
分音頻率
1.5 kHz
指向性角度
Horizontal: 90°, Vertical: 60° (Horn at 90° Rotation, Horizontal: 60°, Vertical: 90°)

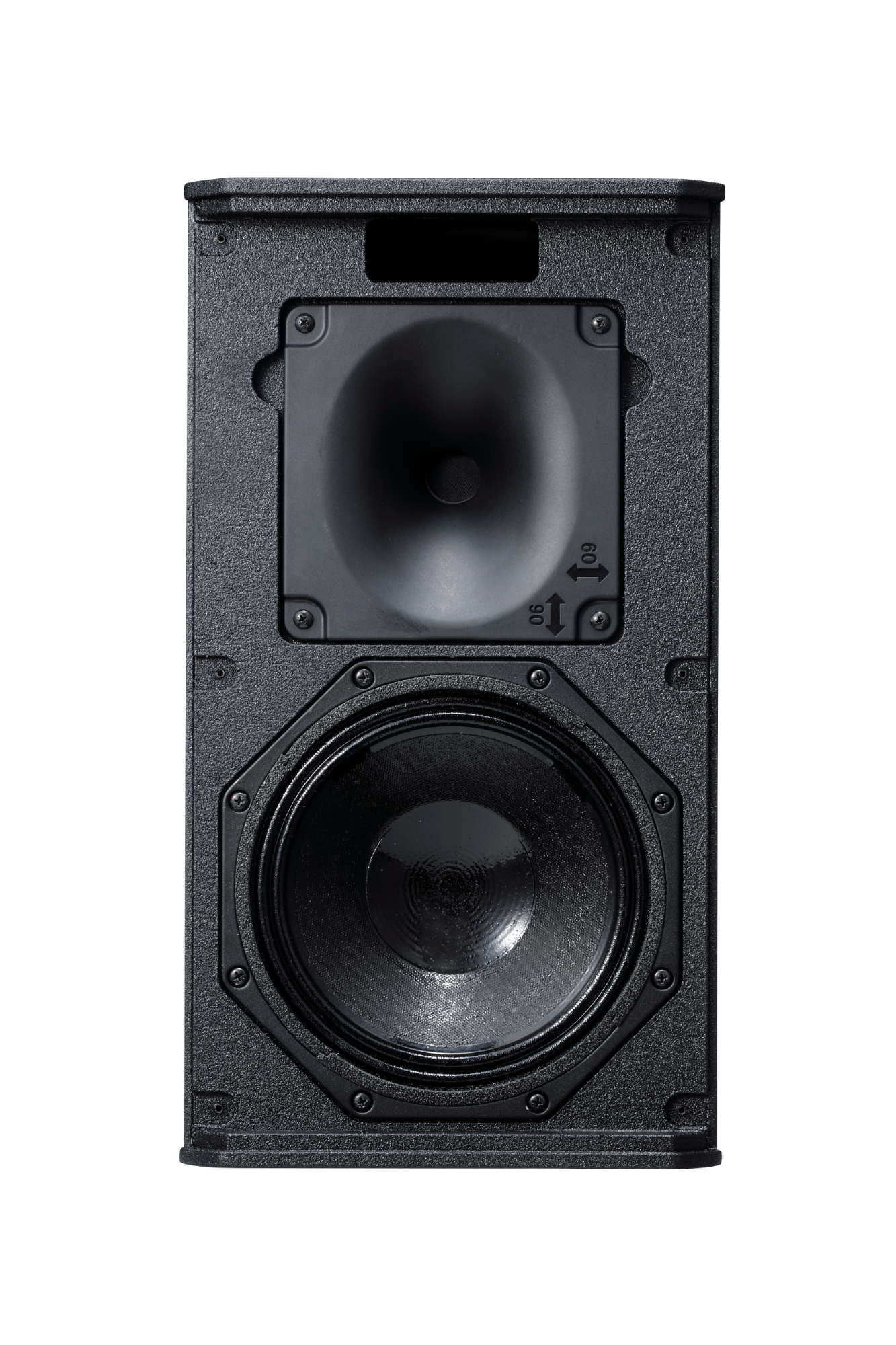

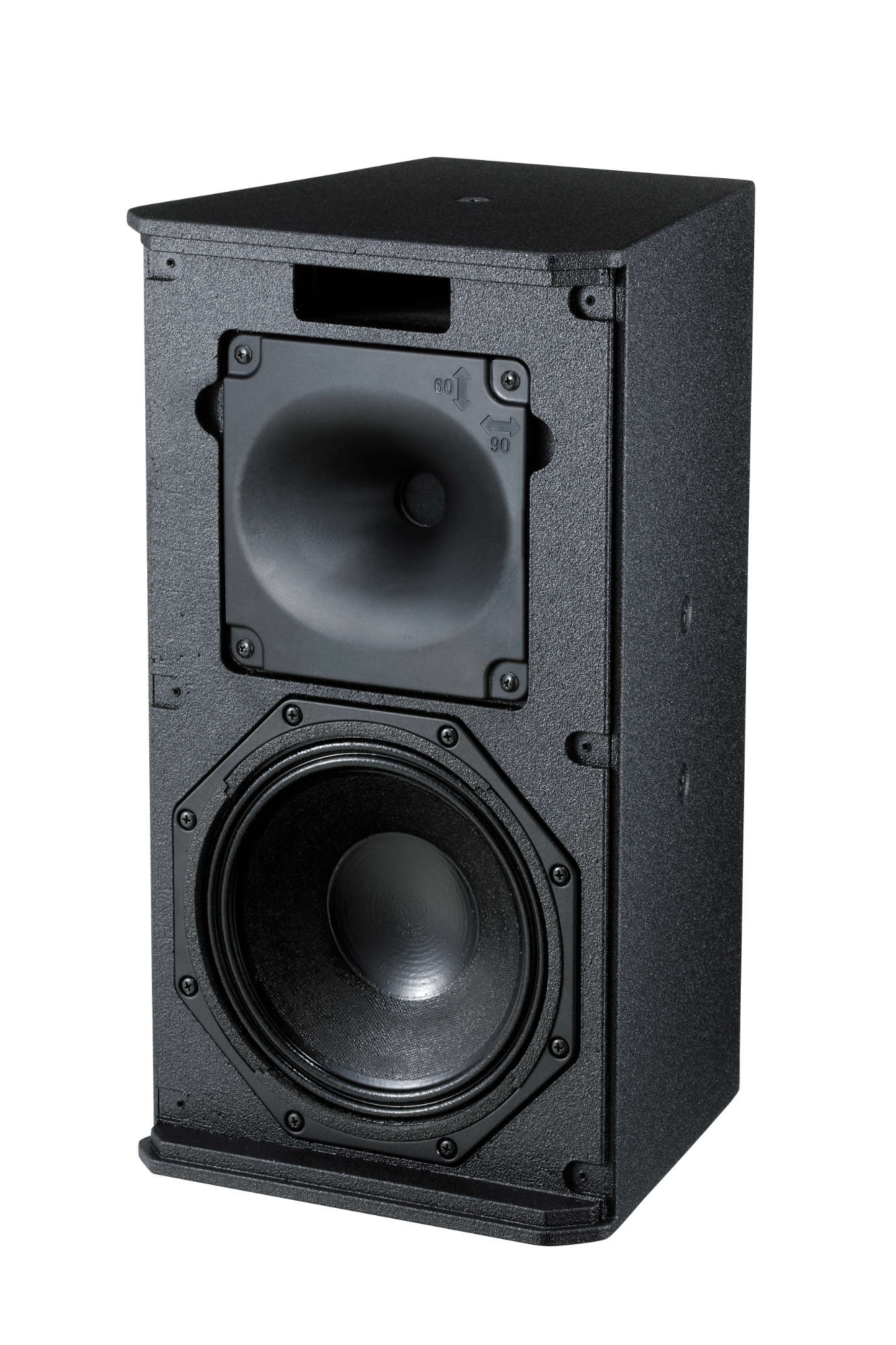

喇叭組成
Low frequency: 20 cm (8) cone-type
High frequency: Compression driver fitted with CD horn
High frequency: Compression driver fitted with CD horn
輸入端子
Neutrik NL4MPXX x 2, M4 screw terminal, distance between barriers: 11 mm (0.43)
外觀
Enclosure: Birch plywood, black, polyurea coating
Grille: Steel plate, black, 40 % gloss, paint
Grille: Steel plate, black, 40 % gloss, paint
尺寸
249 (W) x 450 (H) x 243 (D) mm (9.8 x 17.72" x 9.57")
重量
11 kg (24.25 lb)
選配品
Speaker mounting bracket: HY-B0801, HY-UH08, HY-UV08
請下載資料以獲取完整規格。
The 2-way passive loudspeaker shall consist of an 8 inches (20cm) low frequency transducer and a single high frequency compression driver with CD horn that can be rotated to allow dispersion angles of 90° horizontally and 60° vertically, or 60° horizontally and 90° vertically with a cross over point of 1.5 kHz.
System frequency response shall be from 65 Hz to 20 kHz measured on axis.
The loudspeaker shall produce a Sound Pressure Level (SPL) of 91 dB on axis at 1 meter with a power input of 1 Watt, and shall be capable of producing 360 watts of continuous power and have a nominal impedance of 8 Ohms.

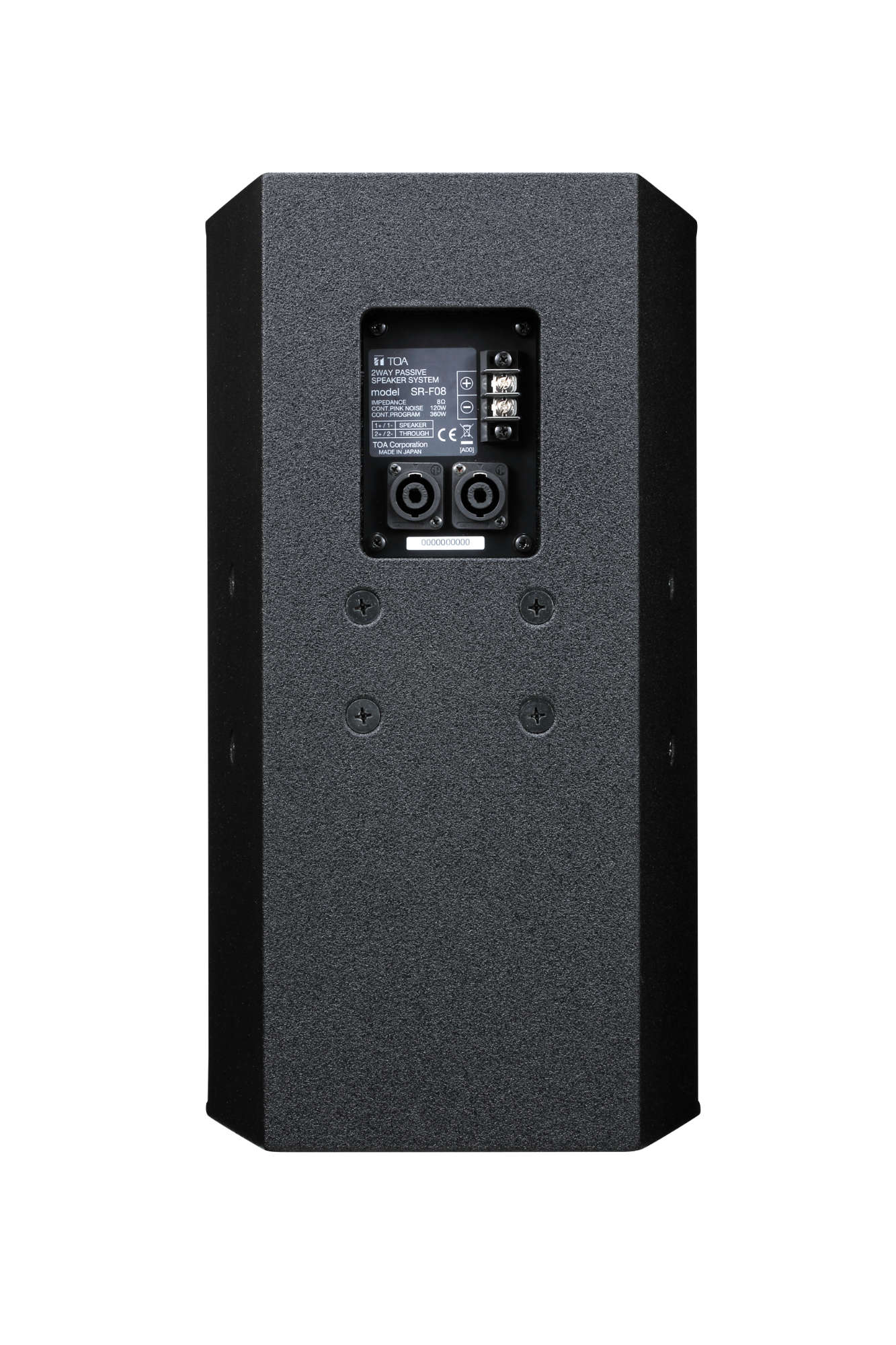

The input connectors, located on the rear of the enclosure, shall be two Neutrik NL4 MP and a two screw-type barrier strip.
The cabinet shall allow the deployment of a wide range of brackets to achieve optimal coverage angles from ceilings, walls, pipes and speaker stands.
The loudspeaker enclosure shall be trapezoidal in shape and will be of a birch plywood construction with an impact protected PCP (Polyurea Cabinet Protection) black finish with a steel front grille measuring 249 (w) x 450 (h) x 243 (d) mm (9.8" x
17.72" x 9.57").
The weight of the loudspeaker shall be 11 kg (24.25 lb.)
Optional extras: Speaker mounting brackets: HY-B0801, HY-UH08, HY-UV08
Ceiling mount bracket: HY-C0801
Speaker wall mount bracket: HY-WM08, HY-W0801
Speaker stand: ST-34B
Manufacturer: TOA Corporation
Model: SR-F08
