SR-F04
二音路高效率喇叭
SR-F04
SR-F04是一款室內使用的2路被動式揚聲器系統。該揚聲器可用於多種應用，如永久安裝和臨時安裝。
- 強大的被動式兩路揚聲器系統
- 配有全面的安裝配件，可在固定和移動安裝中設置揚聲器系統

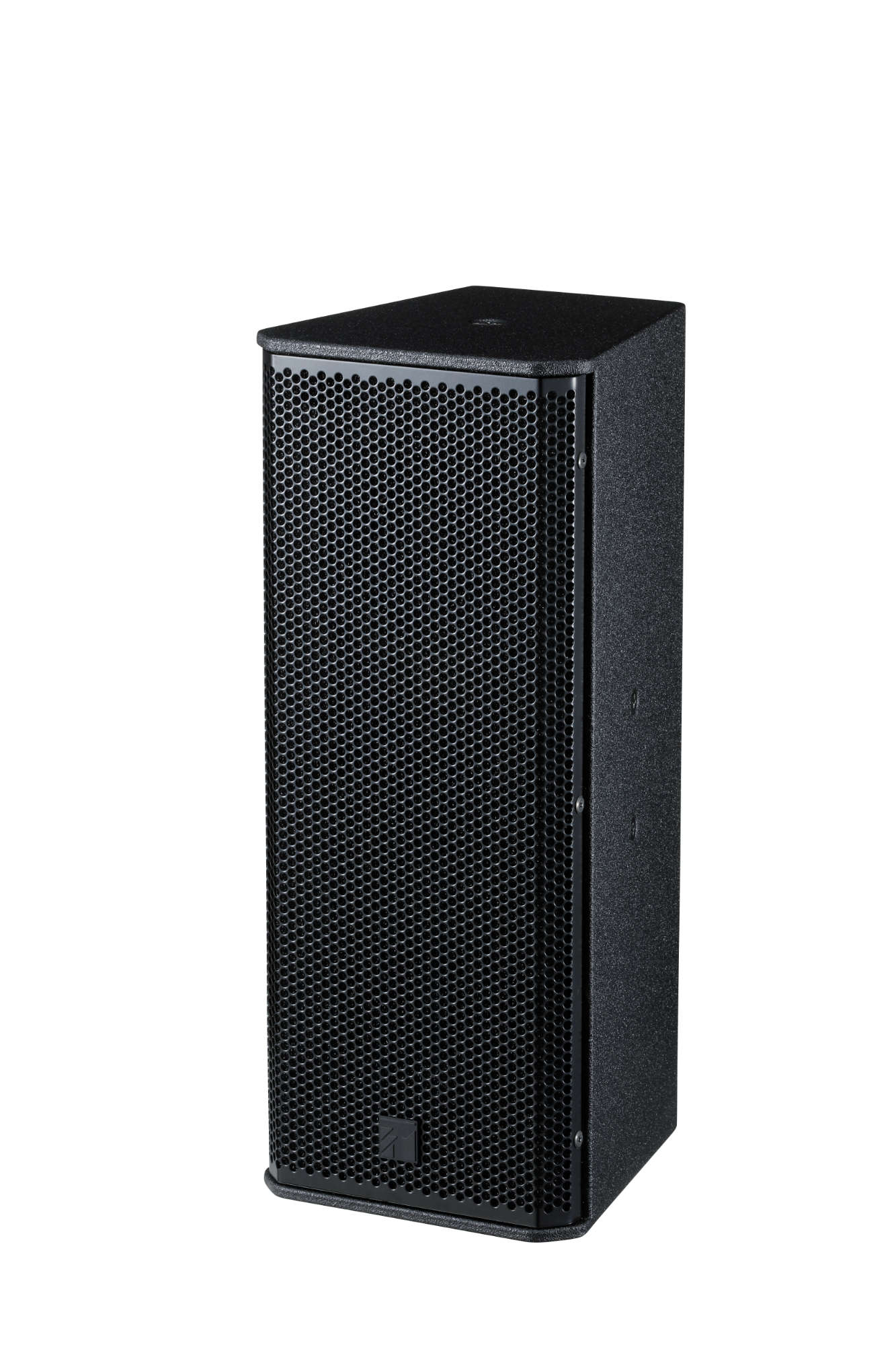

- 緊湊時尚的梯形外殼適合任何地方
- 壓鑄鋁揚聲器框架具有良好的剛度和強度重量比
- 樺木膠合板可最大限度地減少外殼的共振本身俱有聚脲塗層，可以很好地保護揚聲器表面
- 用作中小型禮堂、會議室的主揚聲器
- 用作輔助揚聲器在大型音樂廳和禮拜堂
System Type
2-way, Passive type, Bass-reflex type
輸入功率
Continuous pink noise: 80 W
Continuous program: 240 W
Continuous program: 240 W
額定阻抗
8 Ω
輸出音壓電平
88 dB (1 W, 1 m)
頻率響應
80 Hz - 20 kHz
分音頻率
3 kHz
指向性角度
70° Conical
喇叭組成
Low frequency: 10 cm (4) cone-type x 2"
High frequency: Compression driver fitted with CD horn
High frequency: Compression driver fitted with CD horn
輸入端子
Neutrik NL4MPXX x 2, M4 screw terminal, distance between barriers: 11 mm (0.43)
外觀
Enclosure: Birch plywood, black, polyurea coating
Grille: Steel plate, black, 40 % gloss, paint
Grille: Steel plate, black, 40 % gloss, paint
尺寸
165 (W) x 400 (H) x 177 (D) mm (6.5 x 15.75" x 6.97")
重量
5.8 kg (12.79 lb)
選配品
Speaker mounting bracket: HY-B0801, HY-UH04, HY-UV04
請下載資料以獲取完整規格。

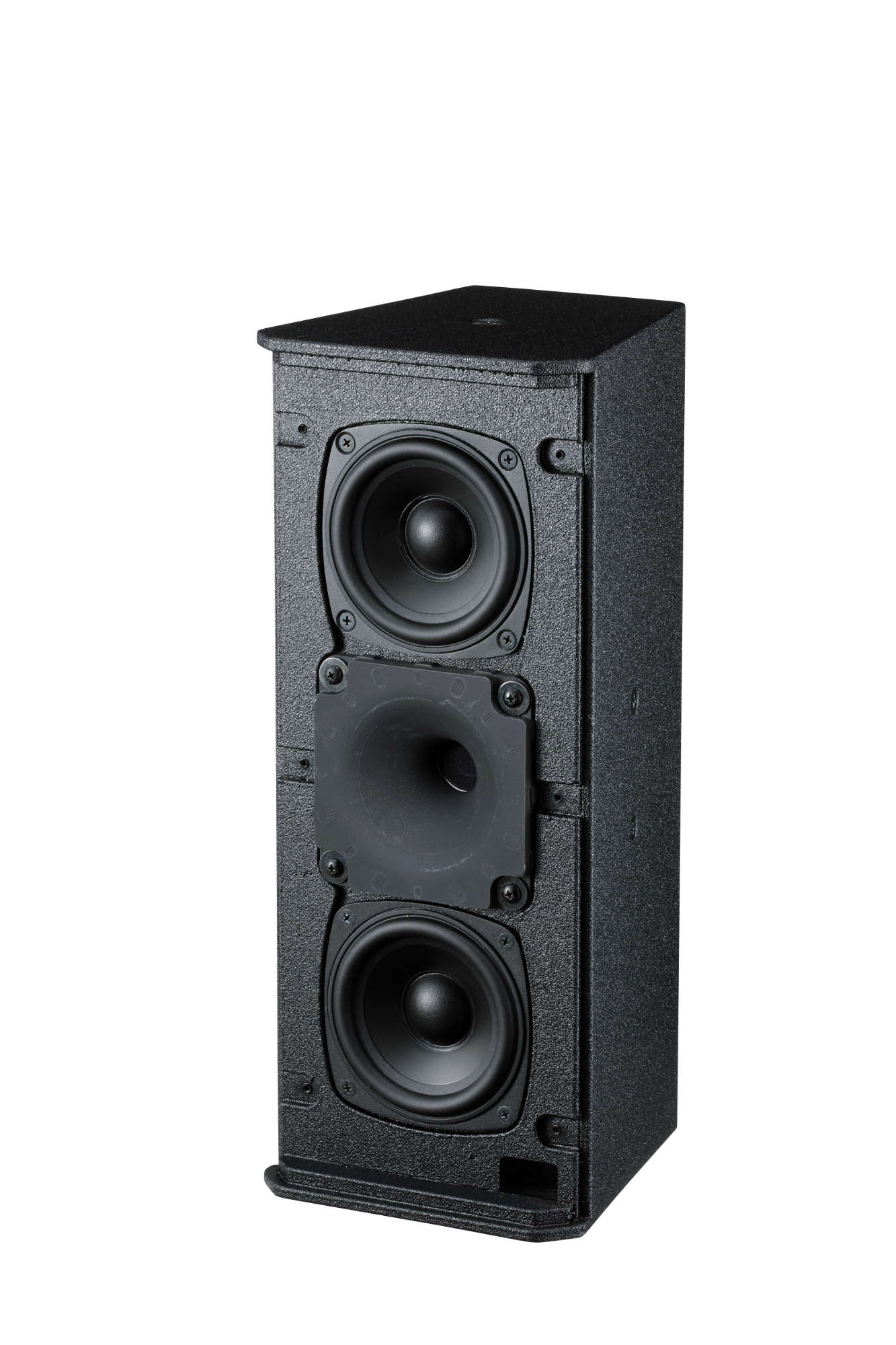

The 2-way passive loudspeaker shall consist of two 4 inches (10cm) low-frequency transducers and a single high-frequency compression driver with CD horn with a conical dispersion angle of 70° with a cross over point of 3 kHz.
System frequency response shall be 80 Hz to 20 kHz measured on-axis.
The loudspeaker shall produce a Sound Pressure Level (SPL) of 88 dB on axis at 1 meter with a power input of 1 Watt, and shall be capable of producing 240 watts of continuous power and have a nominal impedance of 8 Ohms.

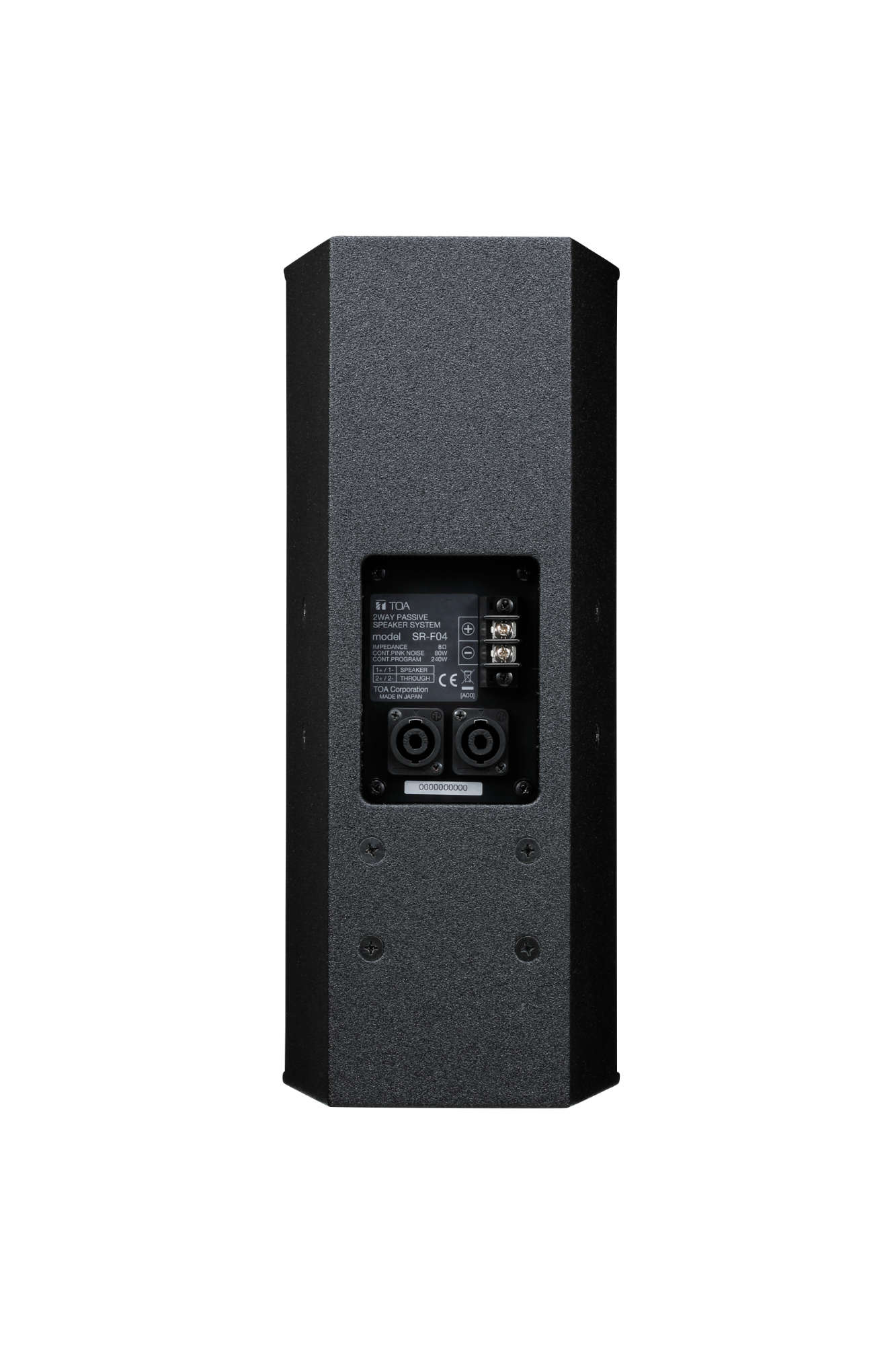

The input connectors, located on the rear of the enclosure, shall be two Neutrik NL4 MP and a two screw-type barrier strip.
The cabinet shall allow the deployment of a wide range of brackets to achieve optimal coverage angles from ceilings, walls, pipes and speaker stands.
The loudspeaker enclosure shall be trapezoidal in shape and will be of a birch plywood construction with an impact protected PCP (Polyurea Cabinet Protection) black finish with a steel front grille measuring 165 (w) x 400 (h) x 177 (d) mm (6.5” ×
15.75” × 6.97”).
The weight of the loudspeaker shall be 5.8 kg (12.79 lb.)
Optional extras;
Speaker mounting bracket: HY-B0801, HY-UH04, HY-UV04
Ceiling mount bracket: HY-C0801
Speaker wall mount bracket: HY-W0801, HY-WM04
Speaker stand adapter: HY-ST04
Speaker stand: ST-34B
Manufacturer: TOA Corporation
Model: SR-F04
