SR-C15BWP
超低音喇叭(室外用)
SR-C15BWP
SR-C15B 重低音系統設計為與 SR-C8L 或 SR-C8S 線陣列揚聲器搭配使用。建議的數位揚聲器處理器是 DP-SP3（可選）。
- 38cm (15“) 重低音
- 輸入連接器包括螺絲端子連接和兩個Neutrik NL4 型插座
- 高功率處理能力
- 配備外殼帶 M8 螺紋鋼板，用於牢固連接選用配件支架
- 用於懸掛和支架安裝的配件支架
外箱型式
Bass-reflex type
輸入功率
Continuous program: 450 W
額定阻抗
8 Ω
輸出音壓電平
93 dB (1 W, 1 m)
頻率響應
40 - 400 Hz (when recommended parameters are applied by the optional DP-SP3)
分音頻率
125 Hz (when recommended parameters are applied by the optional DP-SP3)
喇叭組成
38 cm (15) cone-type

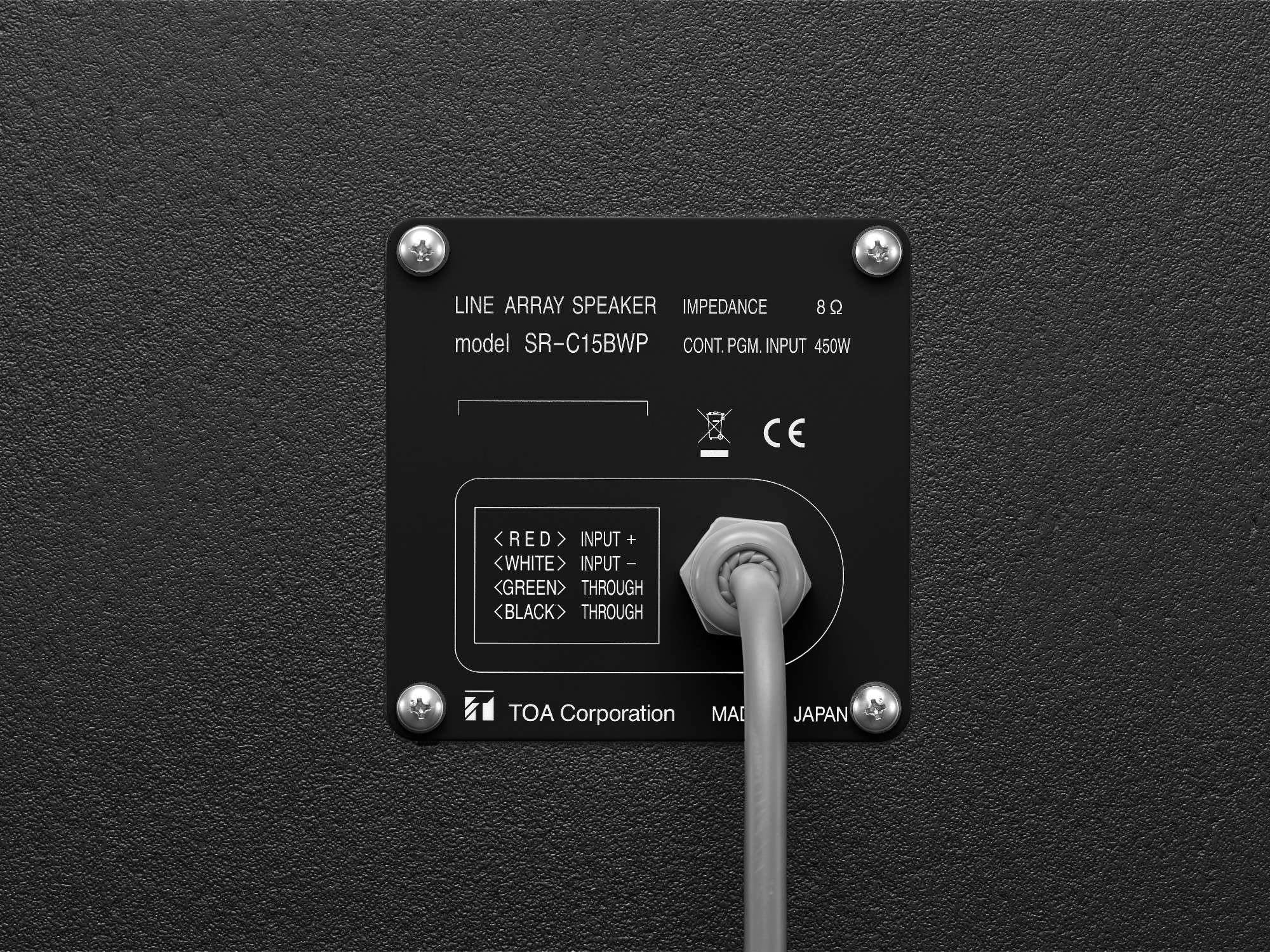

Connected Cable
Direct cable withdrawal from internal speaker: Φ8.6 mm (Φ0.34)
Water Protection
IPX4
工作溫度
-10℃ to +50℃ (14℉ to 122℉)
外觀
Enclosure: Plywood, black, urethane coating

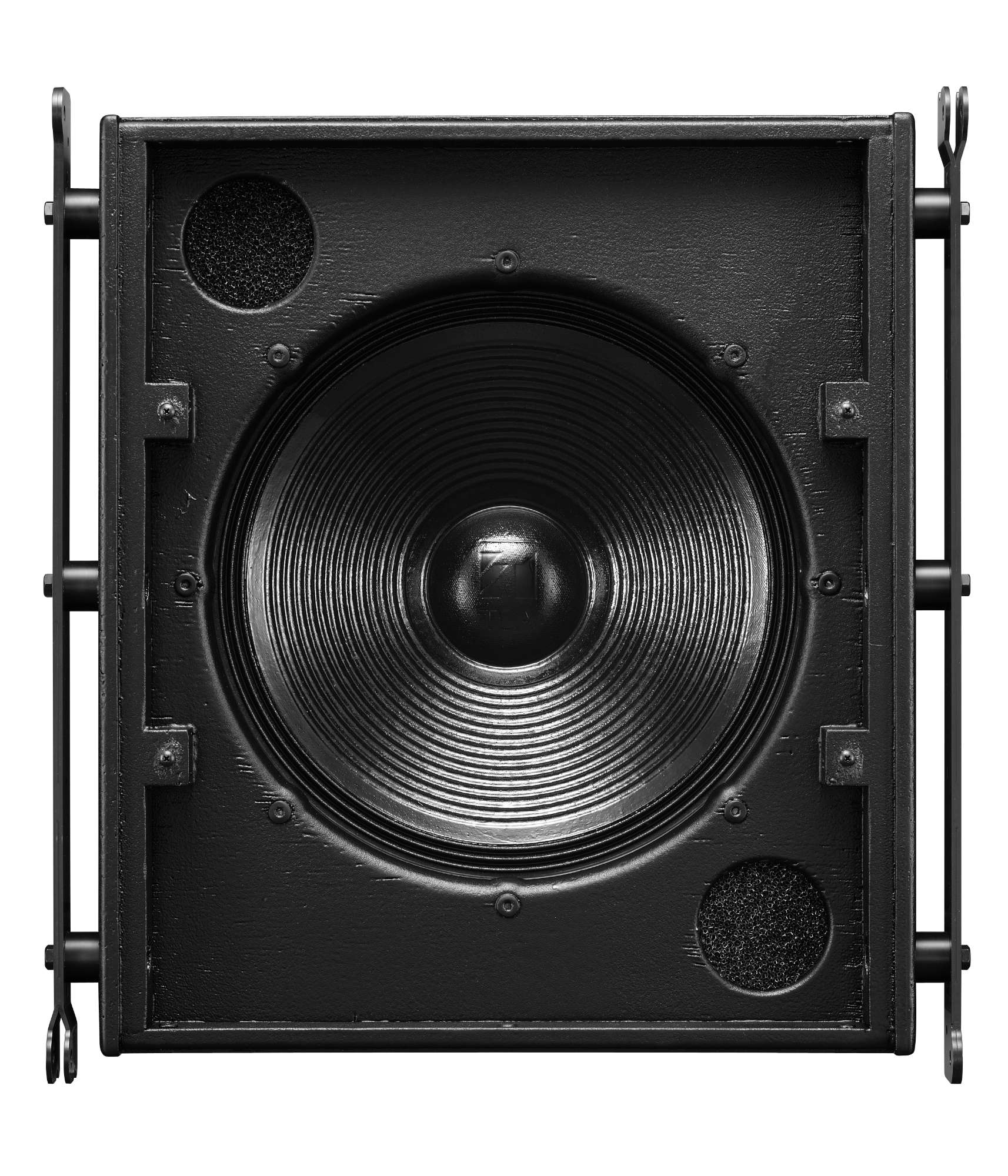

Front grille: Punched stainless steel, black, paint
Front grille: Punched stainless steel, black, paint
尺寸
526.6 (W) x 594.8 (H) x 550 (D) mm (20.73 x 23.42" x 21.65")
重量
41 kg (90.39 lb)
附屬品
M8 connection bolt …4
選配品
Rigging frame: SR-RF8WP
請下載資料以獲取完整規格。
可選配件
The speaker shall be sub-woofer system. The component shall consist one 15" (38 cm) woofer. The speaker shall include an integral input connection cable, 8.6 mm (0.34") outside diameter, 4-conductor, 3 m (9.84") long. The speaker shall meet the following performance criteria. Power handling: 450 W continuous program. Frequency response (10 dB below rated pressure sensitivity, with recommended crossover and equalization) 40 to 400 Hz. Sensitivity (1 W at 1 m): 93 dB. Impedance: 8 ohms nominal.
The speaker enclosure shall be made of plywood and finished with black urethane coating. The speaker grille shall be made from a single punched stainless steel plate and finished with black paint. The speaker shall comply with the IEC IPX4 standard for dust and water resistance and operate within a temperature range from -10°C to +50°C (14°F to 122°F). The dimensions (W x H x D) shall be 526.6 x 594.8 x 550 mm (20.73" x 23.42" x 21.65") and weight (including accessory brackets) shall be 41 kg (90.39 lbs.). The speaker enclosure shall be equipped with M8 threaded steel plates for the secure attachment of optional accessory brackets. Available accessory brackets for suspension and stand mounting shall be made of steel.
The loudspeaker shall be TOA model SR-C15BWP.
The rigging frame shall be TOA model SR-RF8WP.
