RU-2002
放大控制器(PM-660D)附音樂鈴
RU-2002

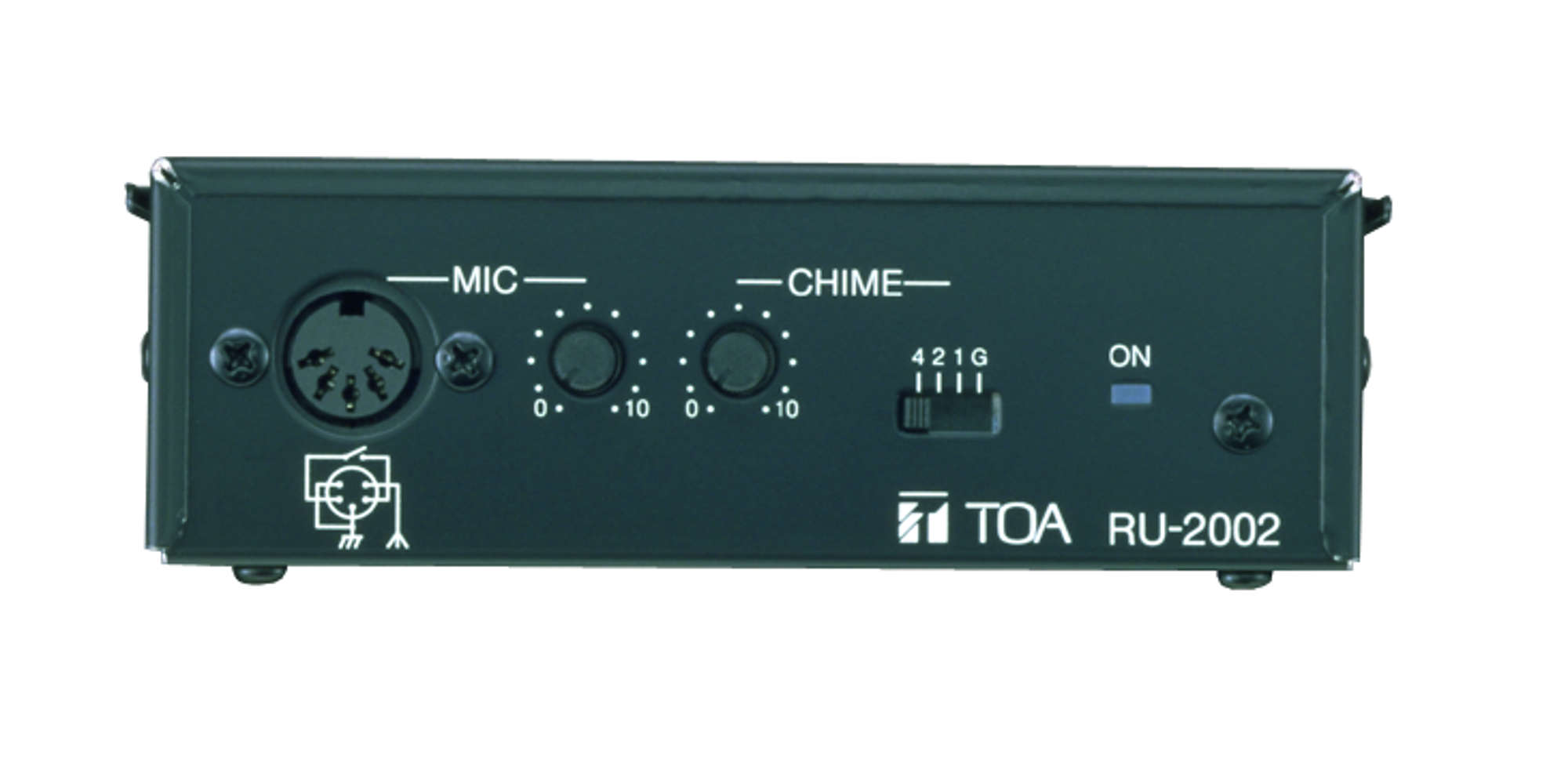

RU-2002 是一款適用於 PM-660D 尋呼麥克風的麥克風放大器，具有遙控開關和 5 針 DIN 插座。 PM-660D 內部功率放大器的功率和全域揚聲器輸出可透過 RU-2002 進行遠端控制。 RU-2002 有一個內部提示音單元。
- 用於主擴大機的遠端電源控制和發起全呼叫
- 麥克風音量控制、通話指示燈
- 透過選用交流電轉接器供電</ li>
- li>
- 隨附用於壁掛式安裝的安裝支架
- 按下通話開關時，RU-2002 會啟動4 聲、2 聲或單音鈴聲和鑼聲
電源
12 – 24 V DC or 12V AC adapter
消耗電流
60 mA
麥克風輸入
-62 dB*, 600 Ω, unbalanced, 5-pin DIN socket
輸出
0 dB*, 600 Ω, balanced, M3 screw terminal, distance between barriers: 6.4 mm (0.25")
音樂鈴
4-tone chiome, 2-tone chime, and single-tone chime
Compatible Microphone
PM-660D
工作溫度
-10 °C to +50 °C (14 °F to 122 °F)
工作濕度
90 % RH or less (no condensation)
外觀
Pre-coated steel plate, black
尺寸
124 (W) x 42.5 (H) x 159 (D) mm (4.88" x 1.67" x 6.26")
重量
600 g (1.32 lb)
附屬品
Mounting bracket x 1
請下載資料以獲取完整規格。
可選配件
The TOA RU-2001 and RU-2002 are remote control units having a microphone amplifier designed for use with the PM-660D Paging Microphone (5-pin DIN termination). The RU-2002 has built-in 3 selectable chime tones. • Can be installed on a desk or wall with the supplied mounting bracket. • A chime selected from 4-tone chime, 2-tone chime, and single-tone chime can be sounded by pressing the talk switch of the microphone with remote switch before making the microphone announcement. (RU-2002 only) • Remote output (make contact output, contact capacity: 30 V DC, under 0.5 A) permits control of equipment having control input terminals interlocked with the talk switch on the paging microphone with remote switch (e.g. PM-660D)
