RM-200SA
遙控麥克風

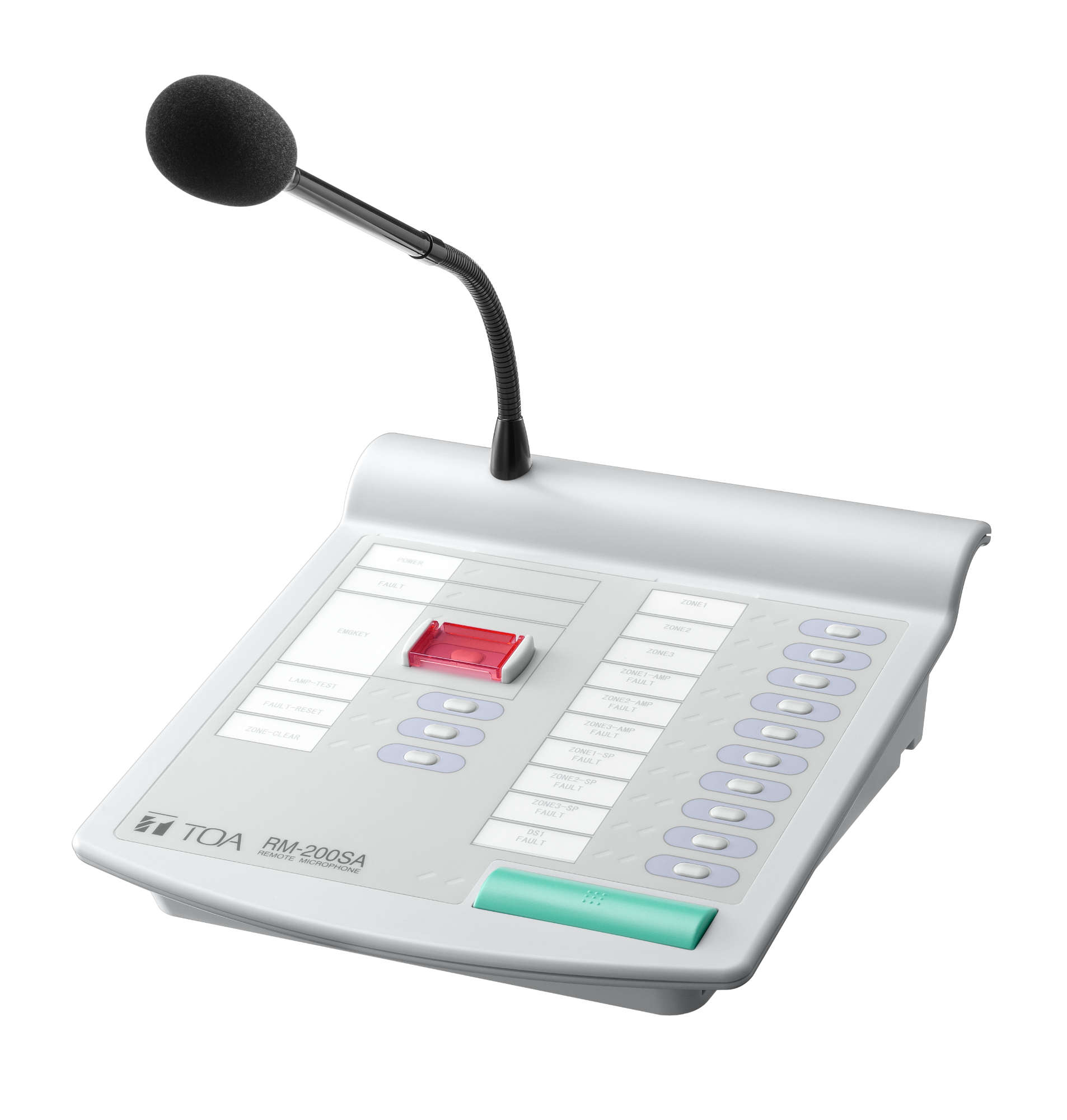

RM-200SA
RM-200SA 是專為矩陣系統設計的遠端麥克風。它配備了 13 個功能開關，可用於選擇單一區域或區域組、有蓋開關和相應的指示燈。可選的 RM-210 遠端麥克風擴充允許以 10 件為單位擴展開關和指示。
- 13個功能開關
- 區域、群組、全呼叫尋呼和啟動預先錄製的訊息
- 緊急序列可以透過被覆蓋的警報按鈕啟動鉸鏈蓋
- 指示系統故障、線路故障、繁忙區域等。
- 附蓋開關可防止意外使用
電源
24 V DC (operating range: 15 – 40 V DC, supplied from the SX-200RM) or
DC input power supply connector (when the optional AD-246 AC adapter used).
Usable DC power supply plug: 5.5 mm outer diameter, 2.1 mm inner diameter, 9.5 mm long, and non-polarity type
DC input power supply connector (when the optional AD-246 AC adapter used).
Usable DC power supply plug: 5.5 mm outer diameter, 2.1 mm inner diameter, 9.5 mm long, and non-polarity type
Operation
Function keys, General urgency all-call key (covered), Talk key
消耗電流
Under 240 mA
音聲輸出
0 dB*, 600 Ω, balanced
External Microphone Input
–40 dB*, 2.2 kΩ, unbalanced, mini jack
失真率
Under 1%
頻率響應
100 Hz – 20 kHz
S/N比
Over 60 dB
麥克風
Undirectional electret condenser microphone with AGC (ON/OFF selectable)
音樂鈴
Built inside (PCM sound source), monitoring possible with built-in speaker
Volume Control
Microphone volume control, monitor speaker volume control,
chime (adjustable using the SX-2000 Setting Software)
chime (adjustable using the SX-2000 Setting Software)
線材長度
800 m
Connection Cable and Connector
Main line: Shielded CPEV cable (1 pair of audio wire + 1 pair of data wire + 1 pair of monitor/control
wire + 1 pair of power supply wire) or
Shielded Category 5 twisted pair cable for LAN (CAT5-STP)
Branch line: Shielded Category 5 twisted pair cable for LAN (CAT5-STP), RJ45 connector
wire + 1 pair of power supply wire) or
Shielded Category 5 twisted pair cable for LAN (CAT5-STP)
Branch line: Shielded Category 5 twisted pair cable for LAN (CAT5-STP), RJ45 connector
監聽喇叭
Built inside
指示燈
Power indicator, Failure indicator, Status indicators,
Selection indicators, Microphone indicator
Selection indicators, Microphone indicator
工作溫度
0°C ~ 40°C
工作濕度
35% to 80% RH (no condensation)
外觀
ABS resin, blueish gray
尺寸
190 (w) x 76.5 (h) x 215 (d) mm (excluding microphone)
重量
880 g
請下載資料以獲取完整規格。
安裝支架配件
功能/操作擴充相關配件
Elegant station in desktop enclosure with a goose-neck microphone.13 programmable buttons, a button with folding safety cover for emergency functions and talk button, expandable to Max 55 keys. Due to controlled microphone the intercom can be used as emergency intercom. Very easy to use by the programmable functions: - Start of a pre-programmed emergency sequence with stored messages through the covered alarm key - Manual announcements are made into selectable areas, call - Select background music - Activation of preprogrammed transfers of any sources in any areas - Display specific error messages - Alarm acknowledge and reset When used as a emergency microphone the following additional functions: - Start, pause, skip and stop alarm sequences in specific sections of the fire - Lamp test Ready light, General failure indicator and VU-meter. Built-in speaker to listen with the possibly programmed fast forward or post gongs. Adjustable microphone and speaker levels. Monitoring of control and audio paths, as well as the preamplifier according to EN 60849, EN54-16 and ISO 7240-16.
