NX-100
網路音聲傳輸器
NX-100

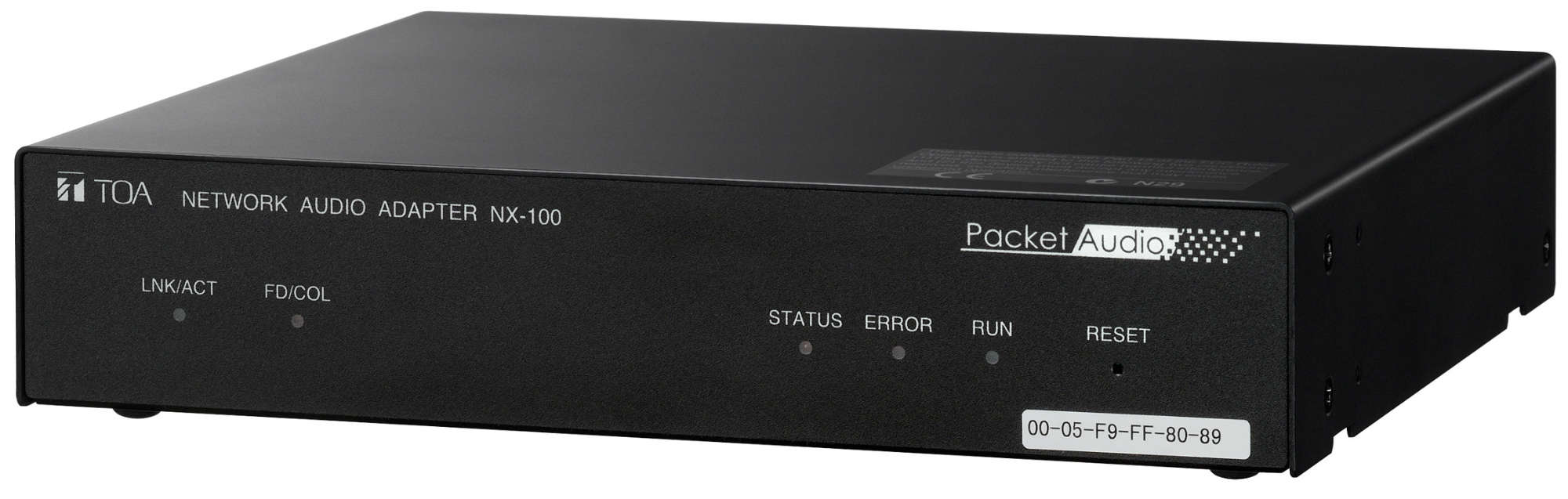

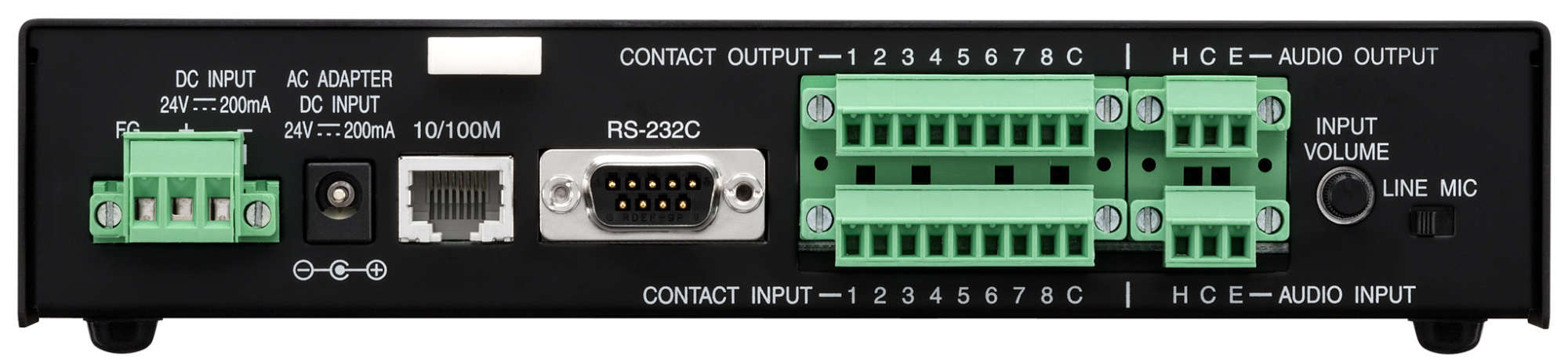

NX-100網路音訊轉接器可以透過IP網路（例如LAN或Internet）即時傳輸高品質的音訊訊號和串列資料等控制資料。運行成本低於使用專用線路。透過使用選購的機架安裝支架，可以將其安裝在 EIA 標準機架（1 單位尺寸）中。
- 音訊網路轉接器，用於透過LAN 傳輸音訊和控制訊號
- 單播：最多4 個位置，多播：最多64 個位置
- 低成本運行
- 交流和直流工作
* 0 dB = 1 V
電源
24 V DC (removable terminal block (3 pins) or
AC adapter AD-246 (optional) or the equivalent
AC adapter AD-246 (optional) or the equivalent
消耗電流
200 mA (DC operation)
音聲輸入
1 channel (transformer-isolated), -58 dB* to 0 dB*,
balanced (MIC/LINE changeable, volume adjustable with volume control),
2 kΩ, removable terminal block (3 pins)
balanced (MIC/LINE changeable, volume adjustable with volume control),
2 kΩ, removable terminal block (3 pins)
音聲輸出
1 channel (transformer-isolated), balanced, 600 Ω,
removable terminal block (3 pins)
removable terminal block (3 pins)
頻率響應
50 - 14,000 Hz (when sampling frequency is 32 kHz)
失真率
Under 0.3% (1 kHz, when sampling frequency is 32 kHz)
控制輸入
8 channels, no-voltage make contact input, open voltage: 12 V DC,
short-circuit current: 10 mA, removable terminal block (9 pins)
short-circuit current: 10 mA, removable terminal block (9 pins)
控制輸出
8 channels, open collector output (polarized), withstand voltage: 30 V DC,
control current: 50 mA max., removable terminal block (9 pins)
control current: 50 mA max., removable terminal block (9 pins)
網絡I/F
10BASE-T/100BASE-TX, Auto-Negotiation
Serial I/F
RS-232C (DCE I/F), D-sub connector (9P, male), 9600bps - 115200bps
網路通訊協定
TCP, UDP, ARP, ICMP, HTTP, RTP, IGMP
Audio Packet Transmission System
Unicast (Up to 4 simultaneous transmissions),
Multicast (Up to 64 simultaneous transmissions)
Multicast (Up to 64 simultaneous transmissions)
工作溫度
0 °C to +50 °C (0 °C to +40 °C when AC adapter is in use)
工作濕度
Under 90% RH (no dew condensation should be produced)
外觀
Steel plate, black, 30% gloss
尺寸
210 (W) x 44.7 (H) x 188 (D) mm
重量
1.2 kg
選配品
Rack mounting bracket: MB-15B-BK (for rack mounting one NX-100 unit),
MB-15B-J (for rack mounting two NX-100 units)
AC adapter: AD-246
MB-15B-J (for rack mounting two NX-100 units)
AC adapter: AD-246
Note: When you need the AC adapter, be sure to consult your TOA dealer.
請下載資料以獲取完整規格。
可選配件
The network audio codec shall be IP-addressable and convert analog audio (mic or line level) to standard IP packets for transport over an IP-based network including local area, wide area and the Internet. The device shall be capable of simultaneous transport of audio, serial RS-232 data and contact closures. The device shall support three audio quality modes and have variable sample rate and audio bandwidth with a minimum latency/delay of 20 ms. Multiple error correction modes shall be available to address potential packet loss in high network traffic environments.
The network interface shall be 10BASE-T/100BASE-TX, Auto-Negotiation and utilize the network protocols TCP/IP, UDP, HTTP and RTP. The audio input shall be balanced, transformer-isolated, MIC/LINE switchable (-58 dBV to 0 dBV, 2k ohms) with adjustable volume control and plug-in screw connector. The audio output shall be balanced, transformer-isolated, (0 dBV, 600 ohms), with plug-in screw connector. Specifications shall include frequency response of 50 to 14k Hz and distortion of under 0.3% (1k Hz, sampling frequency 32k Hz).
The unit shall be capable of Unicast transmission to up to 4 simultaneous units/locations over LAN/WAN/Internet, and Multicast transmission to up to 64 simultaneous units/locations over LAN/WAN. The device shall include Java-based software for configuration, operation and management with password protected access. The device shall include a built-in web server for control and monitoring from any network-based PC with password protected access.
The control inputs shall include 8 channels, no-voltage make contact input, open voltage: 12 VDC, short-circuit current: 10mA with plug-in screw connector. The control inputs shall be individually programmable to initiate and terminate stored transmissions without the need for dedicated PC-based or other control equipment. Each unit shall have twenty programmable distribution presets. The control outputs shall include 8 channels, open collector output, withstand voltage: 30 VDC, control current: 50 mA max. with plug-in screw connector. Adjustable contact off delay time shall be available.
The front panel shall include Link/Active, Full-Duplex/Collision, Status, Error, Run LED indicators plus recessed Reset button. Firmware shall be FLASH-type and upgradeable from any network PC. Power requirements shall be 24 VDC (plug-in screw connector) or AC adapter (optional) with current consumption of 200 mA. The finish shall be black steel plate, 30% gloss. Dimensions (W x H x D) shall be 8.27” x 1.81” x 7.4” (210 x 46 x 188 mm) and weight shall be 2.65 lbs. (1.2 kg).
The network audio adapter shall be TOA model NX-100.
The AC power supply shall be TOA model AD-246.
The rack-mount kits shall be TOA model MB-15B-BK (1 NX-100).
The rack-mount kits shall be TOA model MB-15B-J (2 NX-100).
