N-8000DI
直接選擇單元
N-8000DI
N-8000DI 是一款直接選擇裝置，設計用於採用分組音訊技術的 TOA 分組對講系統（IP 網路相容對講系統）。配備各32個接點輸入輸出，前面板上的指示燈指示輸出狀態。將本機連接到LAN上，可實現主叫站顯示、外部設備控制、直接選擇功能。它可以使用附件機架安裝支架安裝在 EIA 設備機架（1U 尺寸）中，也可以使用選購的牆壁安裝支架安裝在牆壁上。
- 10 Base-T / 100 Base-TX 乙太網路連線
- 32x 觸點輸入/ 32x 觸點輸出
- 診斷系統線路和網路狀態的功能
short-circuit current: 5 mA or less, removable terminal block (20 pins)
(1 common terminal for 4 inputs)
removable terminal block (32 pins)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Connector: RJ45 connector
Channel indication lamps (32 channels)
Reset switch (front panel)
Removable terminal plug (10 pins) …4, Removable terminal plug (16 pins) …4,
Plastic foot …4, Screw for fitting plastic foot …4, Rack mounting bracket …2,
Screw for mounting bracket …8, Screw for rack mounting …4
請下載資料以獲取完整規格。
The direct select unit is designed for use with TOA's packet intercom system (IP network compatible intercom system) that employs the packet audio technology and can be connected to an existing local area network (LAN) or wide area network (WAN).
Network shall be made possible using RJ45 connection via a switching hub. Network interface shall be I/F 10BASE-T/100BASE-TX (Automatic-Negotiation) Auto MDI/MDI-X compatible Network Protocol TCP/IP, UDP, ARP, ICMP, HTTP, RTP, IGMP.

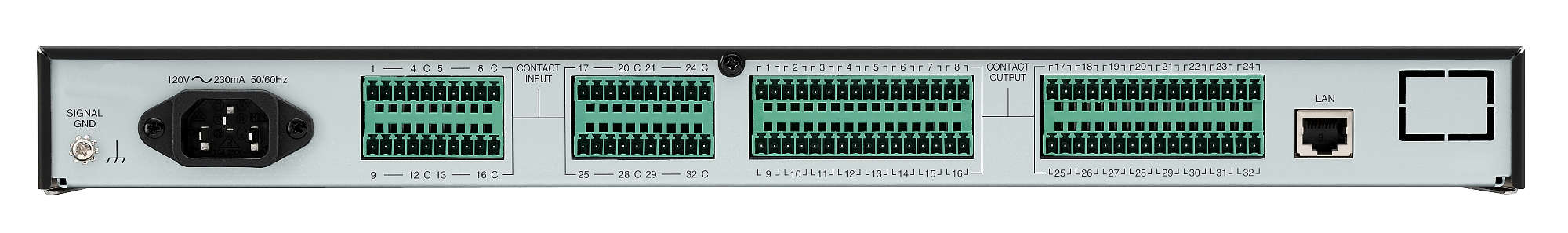

The direct select unit shall have 32 contact inputs and outputs via removable terminal plugs located at the rear of the unit and the relating indicator lamps on the front panel shall depict the output status. Connecting the unit to a LAN via its RJ45 connector permits the channel status indicator to display external control equipment and direct select function to be realised.
The direct select unit shall have additional indication lamps on the front panel displaying: LNK/ACT lights green when connected to a network, and flashes while transmitting or receiving data. STATUS continuously lights red while data is written to an internal storage medium. POWER lights green when power is supplied to the unit. CHANNEL STATUS INDICATOR lights green when contact output is on. There shall be a RESET key on the front panel to reactivate the unit. The direct select unit shall be able to interlock with an electronic lock system or CCTV surveillance system by way of the contact input/output control function.
The direct select unit shall have set time system diagnosis using contact control outputs to indicate the line and network status. Line status shall indicate; CPU failure, line synchronisation error and station number registered but not connected. While network status shall communicate with the network-connected equipment such as exchanges, interface units, or IP stations. No response will indicate in a failure. The direct select unit shall include dedicated software that will enable centralised control, log verification and system maintenance from a personal computer. Line supervision can also be performed using a personal computer and Internet browser. Power requirements shall be 220 – 240V AC.
It shall use only one EIA component rack space and its dimensions shall be 420 (W) × 44.3 (H) × 267 (D) mm (16.54" × 1.74" × 10.51") Weight shall be 2.8 kg (3.75 lb.) and finished in black pre-coated steel plate. Alternatively, the unit can be wall mounted
Optional extras: YC-850 wall mounting bracket manufactured by TOA Corporation.
