N-8000AL
類比電話介面單元

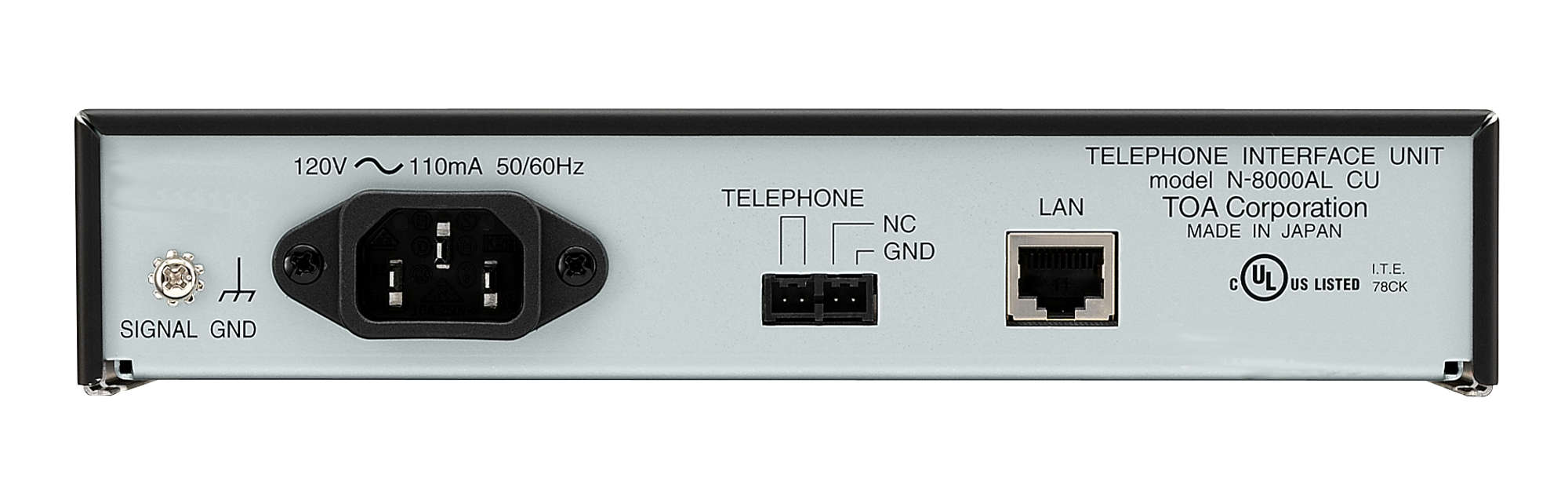

N-8000AL
N-8000AL 是一款電話介面單元，設計用於與採用分組音訊技術的 TOA 分組內通系統（IP 網路相容內通系統）搭配使用。它有一個電話線接口，允許連接模擬電話。將設備連接到LAN 允許類比電話以與內部通訊主站相同的方式操作。 ）中。
- 10 Base-T / 100 Base-TX 乙太網路連線
- 單一電話線可連接一部類比電話
電源
120 V AC, 50/60 Hz
消耗功率
8 W (max.)
Telephone Interface
Number of telephone line: 1 line
Selective signal type: DTMF signal
Monitoring function: Line Loop detection
Control function: Caller ID function
Wiring method: 1 pair of twisted pair cables
Short-circuit current: 120 mA
Open voltage: 24 V DC
Calling signal output voltage: Max. 80 V (0-p) AC (16 Hz)
Selective signal type: DTMF signal
Monitoring function: Line Loop detection
Control function: Caller ID function
Wiring method: 1 pair of twisted pair cables
Short-circuit current: 120 mA
Open voltage: 24 V DC
Calling signal output voltage: Max. 80 V (0-p) AC (16 Hz)
Network Section
Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 8), Multicast (max. 191)
Connector: RJ45 connector
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 8), Multicast (max. 191)
Connector: RJ45 connector
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
指示燈
Network LNK/ACT indication, Status lamp, Power-on indication lamp,
Telephone status lamp
Telephone status lamp
Other
Firmware update function, System data hold function, Time of day hold facility,
Reset switch (front panel)
Reset switch (front panel)
Installation Method
Rack, Desk, Surface mount
工作溫度
0 °C to +40 °C (32 °F to 104 °F)
工作濕度
90 %RH or less (no condensation)
外觀
Pre-coated steel plate, black, 30 % gloss
尺寸
210 (W) x 44.3 (H) x 267 (D) mm (8.27" x 1.74" x 10.51")
重量
1.7 kg (3.75 lb)
附屬品
Power cord (2 m (6.56 ft) …1, CD (for PC setting, maintenance use) …1,
Mini-clamp plug (2 pins) …2, Plastic foot …4, Screw for fitting plastic foot …4
Mini-clamp plug (2 pins) …2, Plastic foot …4, Screw for fitting plastic foot …4
選配品
Rack mounting bracket: MB-15B-BK (for rack mounting one N-8000AL unit)
MB-15B-J (for rack mounting two N-8000AL units)
Wall mounting bracket: YC-850
MB-15B-J (for rack mounting two N-8000AL units)
Wall mounting bracket: YC-850
請下載資料以獲取完整規格。
可選配件
The telephone interface unit is designed for use with TOA's packet intercom system (IP network compatible intercom system) that employs the packet audio technology and can be connected to an existing local area network (LAN) or wide area network (WAN).
Network shall be made possible using RJ45 connection via a switching hub. Network interface shall be I/F 10BASE-T/100BASE-TX (Automatic-Negotiation) Auto MDI/MDI-X compatible Network Protocol TCP/IP, UDP, ARP, ICMP, HTTP, RTP, IGMP.
The telephone interface unit shall have a single telephone socket allowing the connection of an analogue telephone, by connecting the telephone interface unit to a LAN via its RJ45 connector permits the analogue telephone to be operated in the same manner as an intercom master station.
The telephone interface unit shall have indication lamps on the front panel displaying:
LNK/ACT lights green when connected to a network, and flashes while transmitting or receiving data. STATUS continuously lights red while data is written to an internal storage medium. POWER lights green when power is supplied to the unit. LINE INDICATOR lights green when the connected telephone is off-hook.
The telephone interface unit shall include dedicated software that will enable centralised control, log verification and system maintenance from a personal computer. Line supervision can also be performed using a personal computer and Internet browser.
Power requirements shall be 220 – 240V AC.
It shall use only one-half EIA component rack space and its dimensions shall be 210 (W) × 44.3 (H) × 267 (D) mm (8.27" × 1.74" × 10.51") Weight shall be 1.7 kg (3.75 lb.) and finished in black pre-coated steel plate. Alternatively, the unit can be free standing or wall mounted
Optional extras: MB-15B-BK rack mounting bracket (for rack mounting one unit). MB-15B-J rack mounting bracket (for rack mounting two units). YC-850 wall mounting bracket manufactured by TOA Corporation.
