N-8000AF
音聲介面單元
N-8000AF

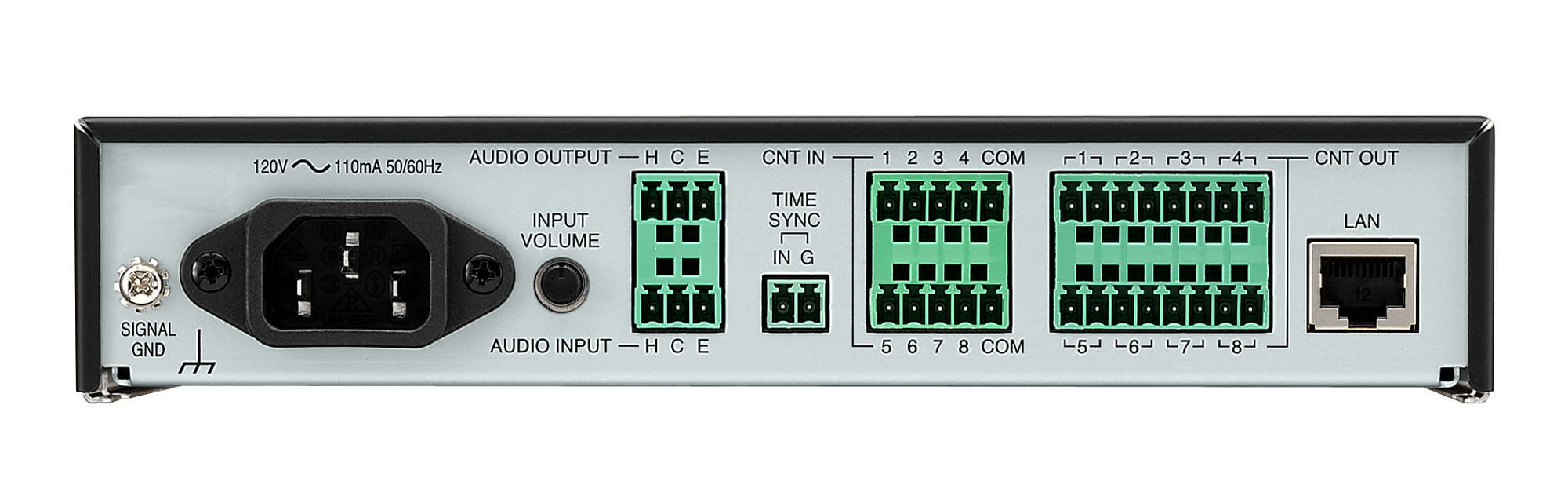

N-8000AF 是一款音訊介面單元，專為與採用分組音訊技術的 TOA 分組對講系統（IP 網路相容對講系統）一起使用而設計。它有一個類比音訊輸入和輸出，一個時間同步接點輸入，各8個接點輸入和輸出。將本機連接至 LAN 可實現通話錄音、定期提示音廣播（時間訊號）和尋呼廣播。它可以使用選購的機架安裝支架安裝在 EIA 設備機架（1U 尺寸）中，也可以使用選購的牆壁安裝支架安裝在牆上。
- 10 Base-T / 100 Base-TX 乙太網路連線
- 8x 觸點輸入/8x 觸點輸出
- 時間同步輸入
- 內建-in定時器和提示音
- 診斷系統線路和網路狀態的功能
- 音訊輸入：尋呼
- 音訊輸出：尋呼
* 0 dB = 1 V
電源
120 V AC, 50/60 Hz
消耗功率
7 W (max.)
音聲輸入
1 input (transformer isolated), -58 dB* to 0 dB*, 2 kΩ, balanced
(MIC/LINE input, controllable on the software)
with input volume control knob, removable terminal block (3 pins)
(MIC/LINE input, controllable on the software)
with input volume control knob, removable terminal block (3 pins)
音聲輸出
1 output (transformer isolated), 0 dB*, 600 Ω, balanced, removable terminal block (3 pins)
接點輸入
8 inputs, no-voltage make contact input, open voltage: 24 V DC,
short-circuit current: 5 mA or less, removable terminal block (10 pins),
(1 common terminal for 4 inputs)
short-circuit current: 5 mA or less, removable terminal block (10 pins),
(1 common terminal for 4 inputs)
接點輸出
8 outputs, relay contact output, contact capacity: 24 V DC/2 - 500 mA,
removable terminal block (16 pins)
removable terminal block (16 pins)
Time Sync Input
1 input, no-voltage make contact input, open voltage: 24 V DC,
short-circuit current: 5 mA or less, removable terminal block (2 pins)
short-circuit current: 5 mA or less, removable terminal block (2 pins)
Network Section
Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 8), Multicast (max. 191)
Connector: RJ45 connector
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 8), Multicast (max. 191)
Connector: RJ45 connector
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
指示燈
Network LNK/ACT indication, Status lamp, Power-on indication lamp, Signal lamp, Peak lamp
Other
Firmware update function, System data hold function, Time of day hold facility,
Reset switch (front panel)
Reset switch (front panel)
Installation Method
Rack, Desk, Surface mount
工作溫度
0 °C to +40 °C (32 °F to 104 °F)
工作濕度
90 %RH or less (no condensation)
外觀
Pre-coated steel plate, black, 30 % gloss
尺寸
210 (W) x 44.3 (H) x 267 (D) mm (8.27" x 1.74" x 10.51")
重量
1.7 kg (3.75 lb)
附屬品
Power cord (2 m (6.56 ft) …1, CD (for PC setting, maintenance use) …1,
Removable terminal plug (2 pins) …1, Removable terminal plug (3 pins) …2,
Removable terminal plug (5 pins) …2, Removable terminal plug (8 pins) …2,
Plastic foot…4, Screw for fitting plastic foot …4
Removable terminal plug (2 pins) …1, Removable terminal plug (3 pins) …2,
Removable terminal plug (5 pins) …2, Removable terminal plug (8 pins) …2,
Plastic foot…4, Screw for fitting plastic foot …4
選配品
Rack mounting bracket: MB-15B-BK (for rack mounting one N-8000AF unit)
MB-15B-J (for rack mounting two N-8000AF units)
Wall mounting bracket: YC-850
MB-15B-J (for rack mounting two N-8000AF units)
Wall mounting bracket: YC-850
請下載資料以獲取完整規格。
可選配件
The audio interface unit is designed for use with TOA's packet intercom system (IP network compatible intercom system) that employs the packet audio technology. It can be connected to an existing local area network (LAN) or wide area network (WAN).
Network shall be made possible using RJ45 connection via switching hub. Network interface shall be I/F 10BASE-T/100BASE-TX (Automatic-Negotiation) Auto MDI/MDI-X compatible Network Protocol TCP/IP, UDP, ARP, ICMP, HTTP, RTP, IGMP.
By connecting the audio interface unit to a LAN via its RJ45 connector shall make it possible to broadcast public announcements by interfacing to an existing public address system. Other audio signals can be broadcast, such as BGM (background music), signal tones and chimes via the MIC/LINE balanced input. The audio input shall have its own independent volume control. The recording of conversations and paging calls of master stations, intercom telephones, and outside telephone lines shall be made possible by interfacing to an external recording device by utilising the isolated audio balanced output connector and controlled by the output connector closed contact.
The unit shall have a time synchronisation input and 8 contact inputs and outputs for the purpose of broadcasting pre-recorded internal and external audio files at a predetermined time via it's built in timer.
The audio interface unit shall have indication lamps on the front panel displaying:
LNK/ACT lights green when connected to a network, and flashes while transmitting or receiving data. STATUS continuously lights red while data is written to an internal storage medium. POWER lights green when power is supplied to the unit. SIGNAL lights green when audio is present and PEAK lights red when audio input reaches its peak. There shall be a RESET key on the front panel to reactivate the unit.
The audio interface shall include dedicated software that will enable centralised control and log verification and system maintenance from a personal computer. Line supervision can also be performed using a personal computer and Internet browser. The unit shall be able to interlock with an electronic lock system or CCTV surveillance system by way of contact input/output control function.
Power requirements shall be 220 – 240V AC.
It shall use only one-half EIA component rack space and its dimensions shall be 210 (W) × 44.3 (H) × 267 (D) mm (8.27" × 1.74" × 10.51") Weight shall be 1.7 kg (3.75 lb.) and finished in black pre-coated steel plate. Alternatively, the unit can be free standing or wall mounted.
Optional extras: MB-15B-BK rack mounting bracket (for rack mounting one unit). MB-15B-J rack mounting bracket (for rack mounting two units). YC-850 wall mounting bracket manufactured by TOA Corporation.
