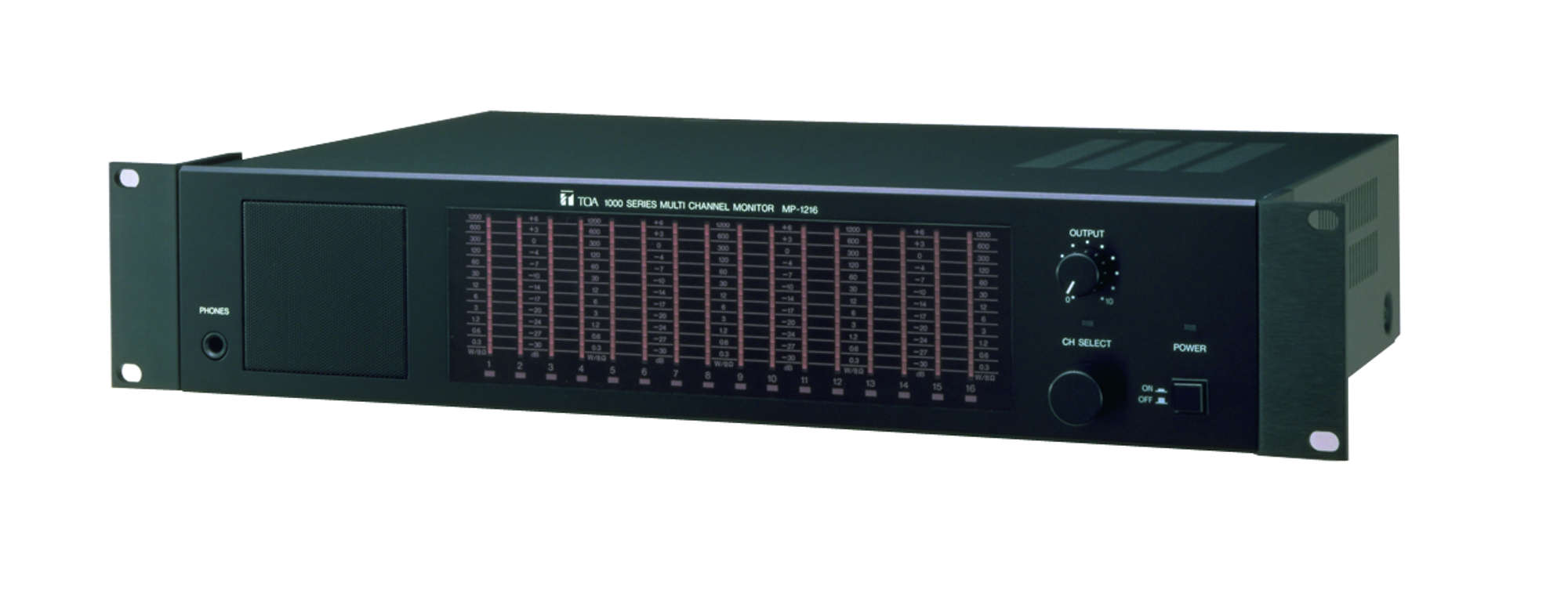

MP-1216
多頻道監聽面板
MP-1216
MP-1216為一款最多可監視16系統輸出之多頻道監視器
- 16 個通道的多通道監視器
- 允許視覺和聽覺監控
- 2 個裝置可連接最多32 個通道（使用可選電纜YA -8：1 個主監聽單元）
- 12 段LED 儀表，每個輸入均帶有校準刻度
- 透過內建選擇器開關和揚聲器對每個通道進行音訊監聽
- >
- 所有輸入均平衡且變壓器隔離
High impedance: 100V
Low impedance: 1200 W/8Ω
Line: +10 dB (2.45 V)
請下載資料以獲取完整規格。

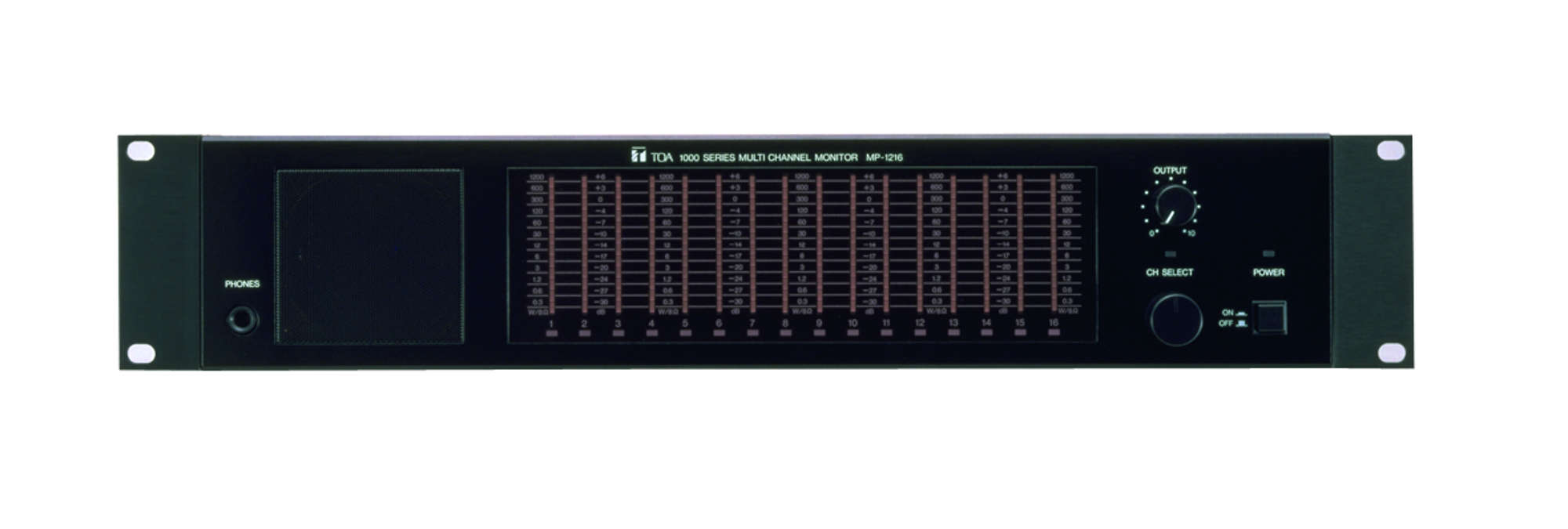

Control and monitor
unit for 16 floating inputs, designed for 19 "rack installation requiring
2 units height. 12-segment LED meter to
display the level of each channel, scaling in dB and W. Built-in 3 W monitoring
loudspeaker, automatic switchover to headphone when jack is plugged-in, volume
control, detent endless turntable to select the monitoring channel, control
panel cascadable to control more than 16 channels, while all channels can be
monitored via one device, each channel matched to three different levels inputs
Inputs: 16
Nominal level for display 0 dB: +4 dB
(Line) / 49V (300W to 8 ohms) /100V (for 100V technology)
Display range: -30 dB to +6 dB / 0.3W
to 1200W
Headphones: 6.3 mm jack, 10mW
Dimensions (W x H x D): 482.6
x 88.4 x 312.7 mm
Color: Black
Brand: TOA
Type: MP-1216
