IP-A1SC15

網路型號角喇叭(IP-A1系列)

IP-A1SC15

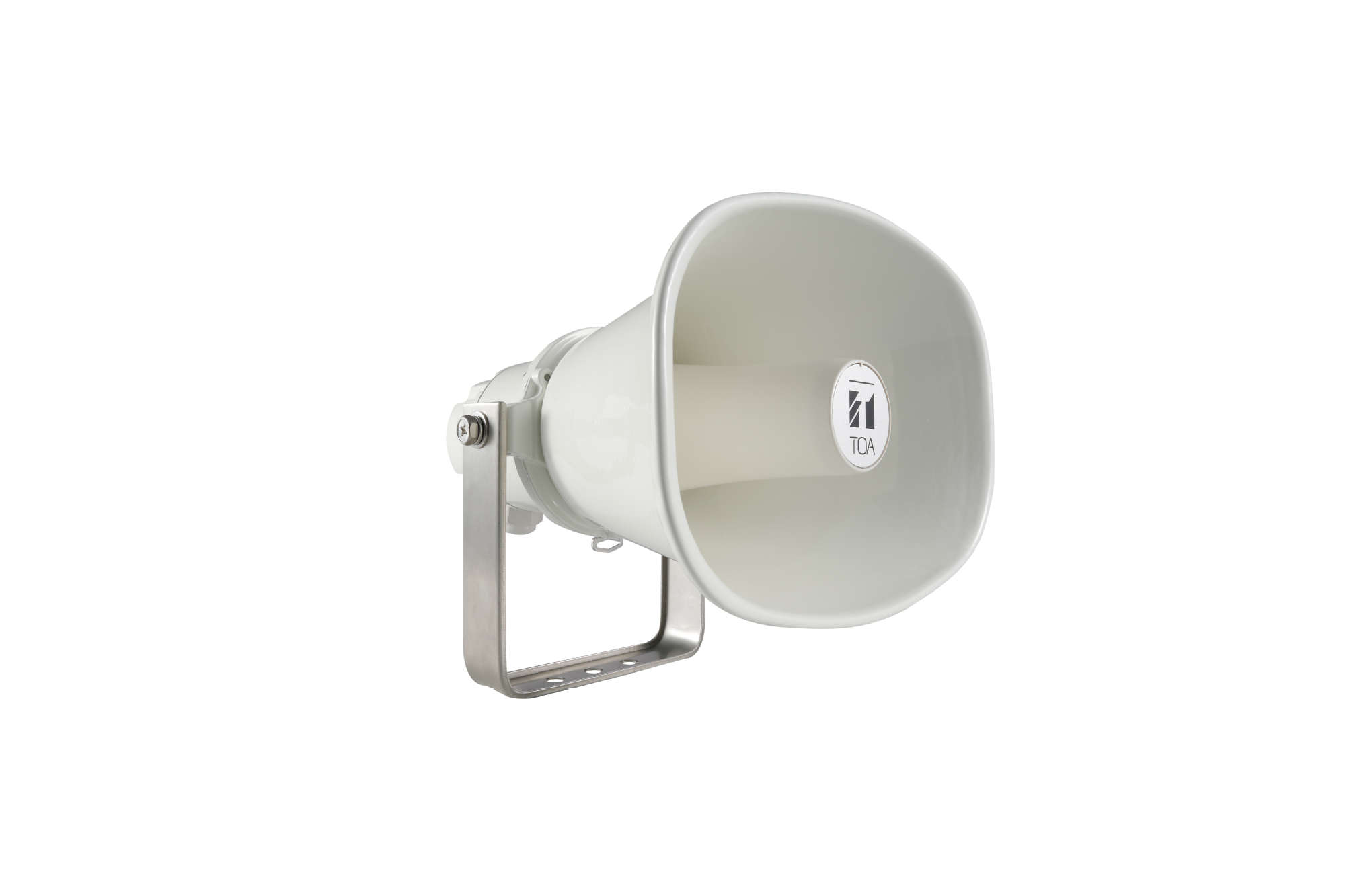

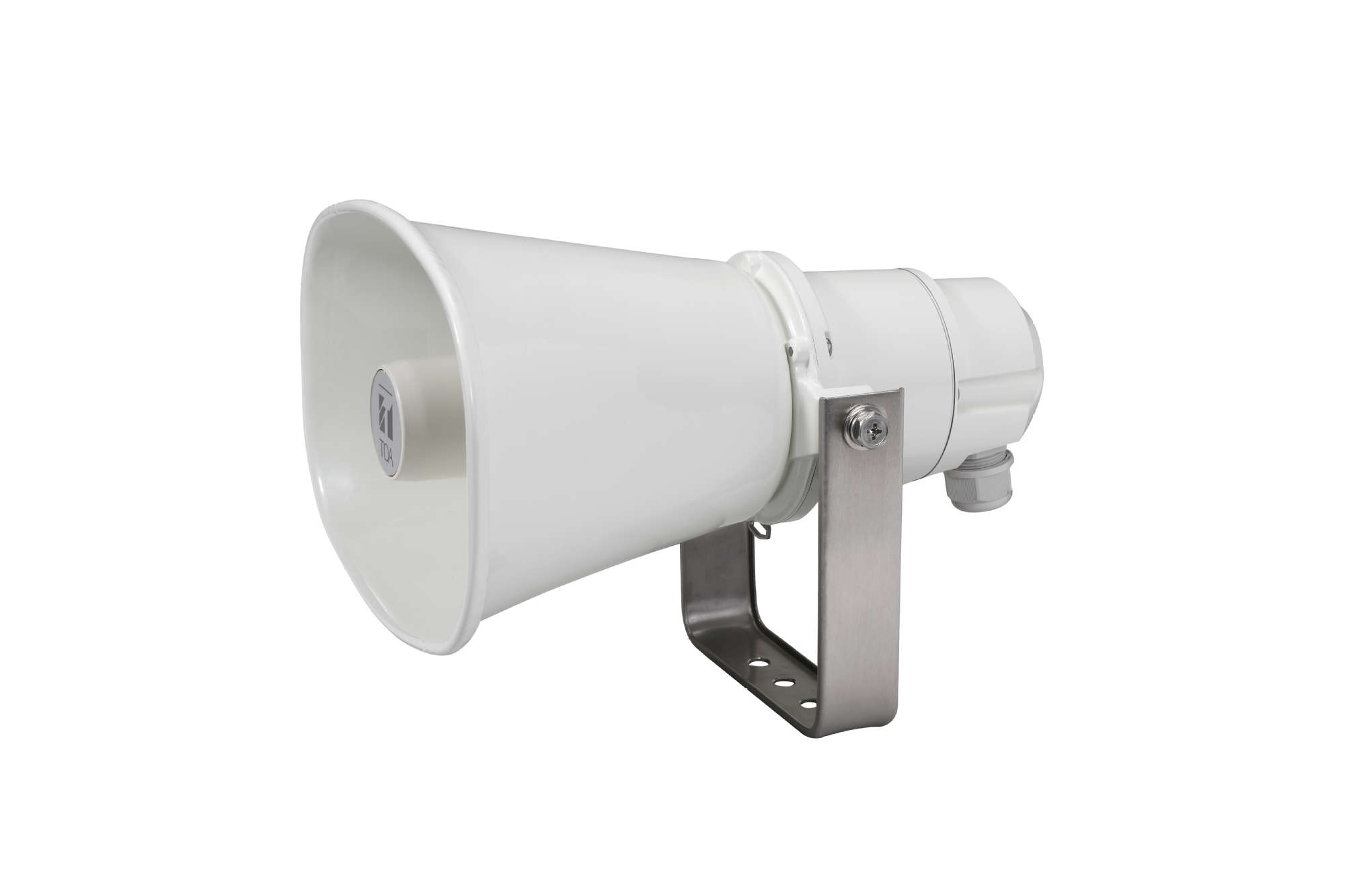

IP-A1SC15 是一款 IP 尋呼喇叭揚聲器，可透過網路提供清晰的通知，具有 124 dB 輸出能力，由 PoE+ 電源供電。其堅固的外殼符合 IP66 等級，適合戶外環境。 IP-A1SC15 支援通用網路協議，可輕鬆與視訊管理系統和其他 SIP 相容的 VoIP 系統和設備整合。群組尋呼功能可提供 20 個組播端口，滿足區域尋呼需求。內部聲音來源檔案儲存允許儲存預先錄製的訊息或音調，可以透過 2 個控制輸入或遠端 API (HTTP) 進行播放。

124dB（PoE+ 供電），IP66 防護等級，適合戶外安裝
接收SIP 音訊、ONVIF 音訊和組播
本地使用內部音訊檔案廣播
8W (PoE)/15W(PoE+)內建放大器，1 LINE音訊輸出
2個控制輸入和1個控制輸出
HTTP指令（接收）
音訊檔案儲存（20個文件，總計80MB 、WAV/MP3）
播放程式（重複、每週計時器）
PoE/PoE+供電

規格 A&E規格下載

電源

PoE+ (IEEE802.3at Class 4), PoE (IEEE802.3af Class 3)

消耗功率

22 W (at PoE+ powered, rated output)
12.95 W (at PoE powered, rated output)
5 W (IEC62368-1)

Amplifier Rated Output

15 W (at PoE+ powered), 8 W (at PoE powered)

輸出音壓電平

112 dB (1 W, 1 m) (500 Hz to 2.5 kHz, peak level)

Maximum Sound Pressure Level

124 dB (at PoE+ powered, 15 W, 1 m) (500 Hz to 2.5 kHz, peak level)
121 dB (at PoE powered, 8 W, 1 m) (500 Hz to 2.5 kHz, peak level)

頻率響應

280 Hz ~12.5 kHz

音聲壓縮方式

Opus, PCMU (G.711u), PCMA (G.711a), G.722

廣播模式

SIP Broadcasting Mode: Opus/PCMU/PCMA/G.722
Multicast Broadcasting Mode: Opus/PCMU/PCMA/G.722 Auto codec recognition, 20 ports
VMS Broadcasting Mode: PCMU
Internal Message Broadcasting Mode
Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function.

Sound Source Files

Max. 20 files (File storage capacity: 80 MB total)
Supported file formats
WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo
MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
Repeat playback: Playcount(1-10 times), Duration (5-3600 sec) or Timer (from Start time to End time)
Interval time: 0 - 99 sec, Delay time: 0 - 99 sec
Trigger: Control Input or Remote API (HTTP)

網絡I/F

100BASE-TX, MDI/MDI-X, RJ-45

網路通訊協定

TCP/IP, UDP, HTTP, RTP, ARP, ICMP, RTSP, SIP (RFC3261)

控制輸入

2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (3 pins)

控制輸出

1 channel, open collector output, withstand voltage: 30 V DC, control current: 50 mA or less, removable terminal block (3 pins)

指示燈

LAN LINK/ACT (green), STATUS (orange)

時間誤差

±13 seconds per month

時間校正

Manual time setting, Time adjustment by NTP server

斷電保護時間

24 hours (RTC time retention, at 40 °C (104 °F)

Dust/Water Protection

IP66

工作溫度

–30 °C to +55 °C (–22 °F to +131 °F)

工作濕度

90%RH or less (no condensation)

外觀

Horn flare and body: Aluminum, off-white (RAL 9010 equivalent), paint
Reflector horn: ABS resin, off-white (RAL 9010 equivalent)
Rear cover: PC resin, off-white (RAL 9010 equivalent), paint
Bracket, screws and bolts: Stainless steel

尺寸

222 (w) x 211 (h) x 276 (d) mm (8.74" x 8.31" x 10.87")

重量

1.4 kg (3.09 lb)

附屬品

Rear cover x 1, Removable terminal plug (3 pins) x 2

選配品

Speaker mount bracket: SP-131, SP-201, SP-301
Pole band: YS-60B

Note: Take special care to avoid mounting this speaker directly to structures (such as ski lift towers) that generate large amounts of vibration. Also, do not use this speaker in environments where it may be exposed to oil or other chemicals, as mounting parts could rapidly deteriorate, possibly resulting in personal injury or other accidents due to the speaker falling.
*ONVIF is a registered trademark of ONVIF Inc.
*These specifications apply to the firmware version 3.1.0 or later. For the latest specifications and firmware, please refer to the TOA DATA Library (https://www.toa-products.com/international/)

請下載資料以獲取完整規格。

The IP horn loudspeaker shall be able to support various standard network protocols and forums such as API (Application Programming Interface), and shall be able to complement VMS (Video Management System) and other network video integration systems.

For the deployment of multiple speakers, multi-cast paging shall be made possible via a SIP microphone or telephone.
The device shall be protected against the ingress of water and dust to IP 66 standards and shall be SIP compliant to broadcast clear and intelligible messages over a wide area via a single network cable.

There shall be two no-voltage control input and an open collector output for broadcast; internal audio source, calling to a SIP telephone and an external beacon, etc.
Remote settings of the IP horn loudspeaker shall be achieved by connection to a Windows® based personal computer and by using the PC’s browser, operational settings, functions, speaker volumes and system status can be achieved.

The frequency response of the loudspeaker shall be between 280 Hz – 12.5 kHz measured on axis with a Sound Pressure Level (SPL) of 124 dB measured at 1 meter with a power input of 15 watts or 121dB with a power input of 8 watts measured at 1 meter. The internal class-D amplifier shall be capable of producing up to 8 watts of power using PoE and up to 15 watts of power when using PoE+.

The IP horn loudspeaker shall operate in temperature conditions of between -30 to + 55 °C (-22 to 131 °F) and shall be constructed from aluminum with an ABS resin reflector horn finished in an off-white (RAL 9010 equivalent), bracket, screws and bolts shall be stainless steel. Dimensions shall be 222(W) ×211(H) ×276(D) mm (8.74“ × 8.31“ × 10.87 “) weighing 1.4kg (3.09 lb).

Optional extras:

Speaker Mount Bracket: SP-131, SP-201, SP-301

Pole Band: YS-60B

manufactured by TOA Corporation

Manufacturer: TOA Corporation
Model: IP-A1SC15
