IP-A1PC238

網路型天花板嵌頂喇叭(IP-A1系列)

IP-A1PC238

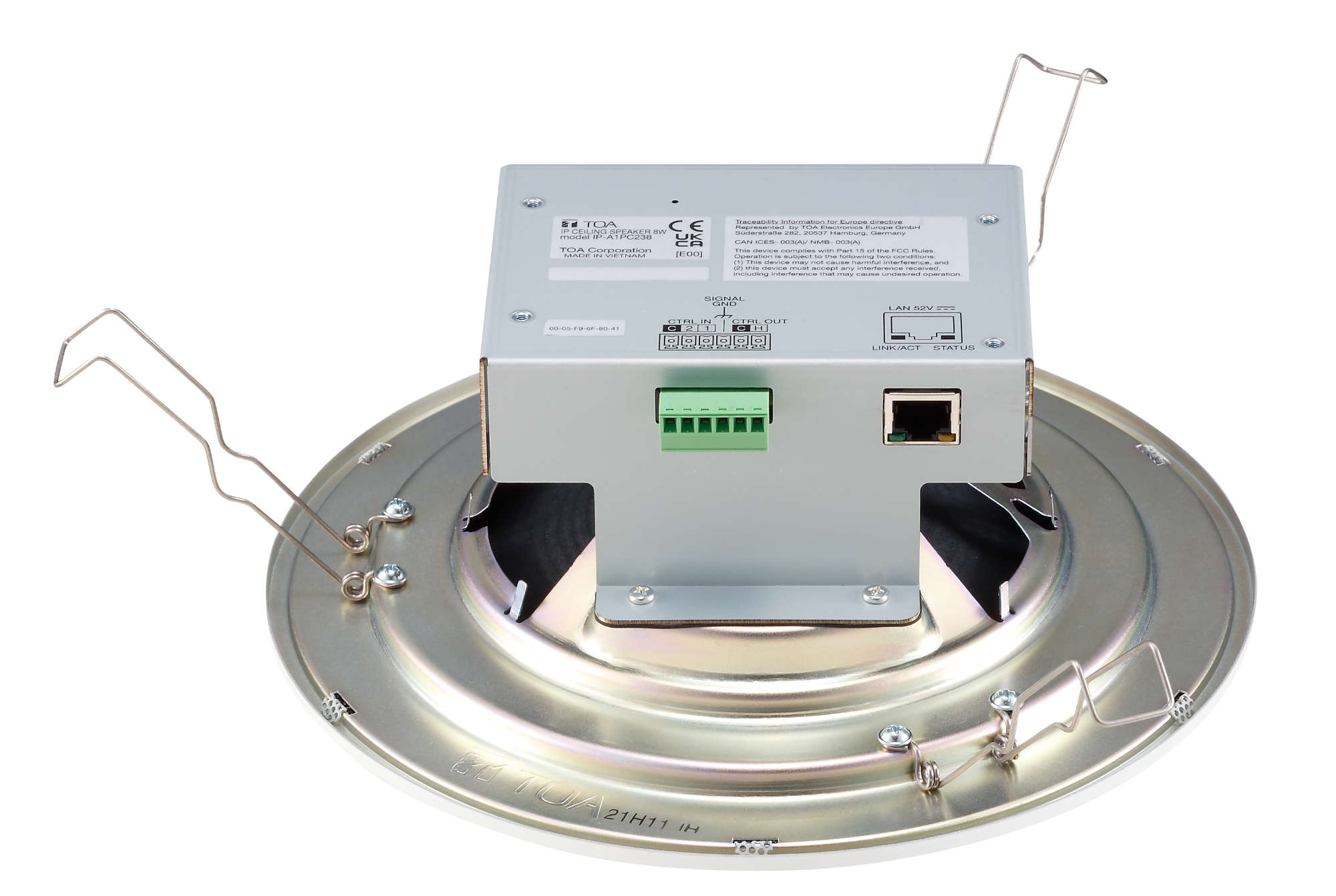

IP-A1PC238 是一款 PoE 供電的吸頂揚聲器，具有內建 8 W 擴大機和最多可儲存 20 個音訊檔案的內部資料儲存。它支援 SIP 協議，可與 VoIP 設備靈活集成，其 20 個組播連接埠可用於群組尋呼操作。它還可以使用 ONVIF 從視訊管理系統接收廣播。設備控制和進一步的系統整合可透過遠端 API (HTTP) 或本地控制輸入進行存取。

用於吸頂式安裝的16 公分（6 吋）錐形揚聲器
接收SIP 音訊、ONVIF 音訊和群組播
使用內部音訊檔案或本地音訊來源進行本地廣播
1 個音訊輸入（LINE/MIC 可選，幻象電源開/關)
8W內建功放，1路LINE音訊輸出
2個控制輸入和1個控制輸出
HTTP指令（接收）
音訊檔案儲存（20個文件，總計80MB，WAV/MP3）
播放程式（重複、每週定時器）
PoE 供電

規格 A&E規格下載

電源

PoE (IEEE802.3af Class 3)

消耗功率

12.95 W (rated output)
5 W (IEC62368-1)

Amplifier Rated Output

8 W

輸出音壓電平

94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)

Maximum Sound Pressure Level

103 dB (8 W, 1 m)

頻率響應

60 Hz - 20 kHz (peak - 20 dB)

喇叭組成

16 cm (6") cone-type

音聲壓縮方式

Opus, PCMU (G.711u), PCMA (G.711a), G.722

廣播模式

SIP Broadcasting/SIP calling Mode: Opus/PCMU/PCMA/G.722, P2P/SIP Server Connection
Multicast Broadcasting Mode: Opus/PCMU/PCMA/G.722 Auto codec recognition, 20 ports
VMS Broadcasting Mode: PCMU
Internal Message Broadcasting Mode
Local Broadcasting Mode: Output from LINE/MIC IN to SPEAKER OUT
Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function.

Sound Source Files

Max. 20 files (File storage capacity: 80 MB total)
Supported file formats
WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo
MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
Repeat playback: Playcount (1 - 10 times), Duration (5 - 3600 sec) or Timer (from Start time to End time)
Interval time: 0 - 60 sec, Delay time: 0 - 30 sec
Trigger: Control Input or Remote API (HTTP)

網絡I/F

100BASE-TX, Auto MDI/MDI-X, RJ45 connector

網路通訊協定

TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261)

控制輸入

2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins)

控制輸出

1 channel, open collector output, withstand voltage: 30 V DC, control current: 150 mA or less, removable terminal block (6 pins)

指示燈

STATUS (orange), LINK/ACT (green)

時間誤差

±13 seconds per month

時間校正

Manual time setting, Time adjustment by NTP server

斷電保護時間

24 hours (RTC time retention, at 40 °C (104 °F)

工作溫度

0 °C to +50 °C (32 °F to 122 °F)

工作濕度

90 %RH or less (no condensation)

Dimensions for Fixing Hole

Mounting hole: Ø200 ±2 mm (7.87" ±0.08")
Ceiling thickness: 5 - 25 mm (0.2" - 0.98")

Speaker Mounting Method

Spring clamp

外觀

Frame: Steel plate, white (RAL 9016 equivalent), paint
Grill: Steel net, white (RAL 9016 equivalent), paint

尺寸

Ø230 x 89 (D) mm (9.06" x 3.5")

重量

880 g (1.94 lb.)

附屬品

Pattern paper x 1,
Removable terminal plug (6 pins, preinstalled on the unit) x 1

NOTE: Please do not install the product near heat insulation material, or cover the product with heat insulation or acoustic absorbing materials to prevent fire risk. Please do not install the product in damp or wet locations or areas with high humidity (condensing) as it may cause damage to the product.
*ONVIF is a registered trademark of ONVIF Inc.
*These specifications apply to the firmware version 3.1.0 or later. For the latest specifications and firmware, please refer to the TOA DATA Library (https://www.toa-products.com/international/)

請下載資料以獲取完整規格。

The IP ceiling mount loudspeaker shall be of an in-ceiling type design, with a full lightweight metal construction with no visible fixings and a discreet outer bezel of only 5 mm. Installation shall be via pre-mounted springs allowing it to be mounted quickly and easily into ceilings with a thickness of between 5 – 25 mm (0.2" – 0.98"). The IP ceiling mount loudspeaker shall be SIP compatible to broadcast clear and intelligible VoIP messages via a single network cable and shall support various standard network protocols and forums such as ONVIF (Open Network Video Interface Forum) and shall be able to complement VMS (Video Management System) and other audio network integration systems.

Twenty multi-cast ports shall be available for group paging. The IP ceiling mount loudspeaker shall have the facility of storing up to twenty audio files with the code of WAV or MP3 format internally. The device shall have the flexibility of broadcasting these files at predetermined times by setting the start and end time along with the day(s) of the week or repeated when necessary and triggered from a control input, or remote API (HTTP). There shall be two controlled inputs and one controlled output. The IP ceiling mount loudspeaker shall be capable of being muted by TOA IP-A1PG Paging Gateway as the highest priority operation. Remote settings of the IP ceiling mount loudspeaker shall be achieved by connection to a Windows® based personal computer and by using the PC’s browser, operational settings, functions and system status can be established.

There shall be an internal class-D amplifier capable of producing up to 8 watts of power. The loudspeaker shall incorporate a single 16 cm (6”) full-range cone-type transducer with a smooth frequency response of 60 Hz to 20 kHz measured on axis with a Sound Pressure Level (SPL) of 94dB measured at 1 metre with a power input of 1 watt or 103dB with a power input of 8 watts measured at 1 metre. The power source shall be supplied from a PoE switching hub. The dimensions shall be Ø230 × 89 mm (d) (9.06" x 3.5") weighing 880 g (1.94 lbs). The finish of the loudspeaker shall be: Baffle: steel plate, white (RAL 9016 equivalent). Grille: Steel net, white (RAL 9016 or equivalent). Mounting bracket: steel plate.

Manufacturer: TOA Corporation Model: IP-A1PC238
