FB-2862C-EA
嵌入式超低音喇叭
FB-2862C-EA
吸頂重低音 FB-2862C-EA 具有由室內設計師設計的迷人外觀，可自然地融入任何建築空間，增強鄰近區域的和諧感。低音反射揚聲器系統旨在提供低頻範圍和高品質聲音輸出，非常適合天花板較高的場所或需要真實聲音的場所。

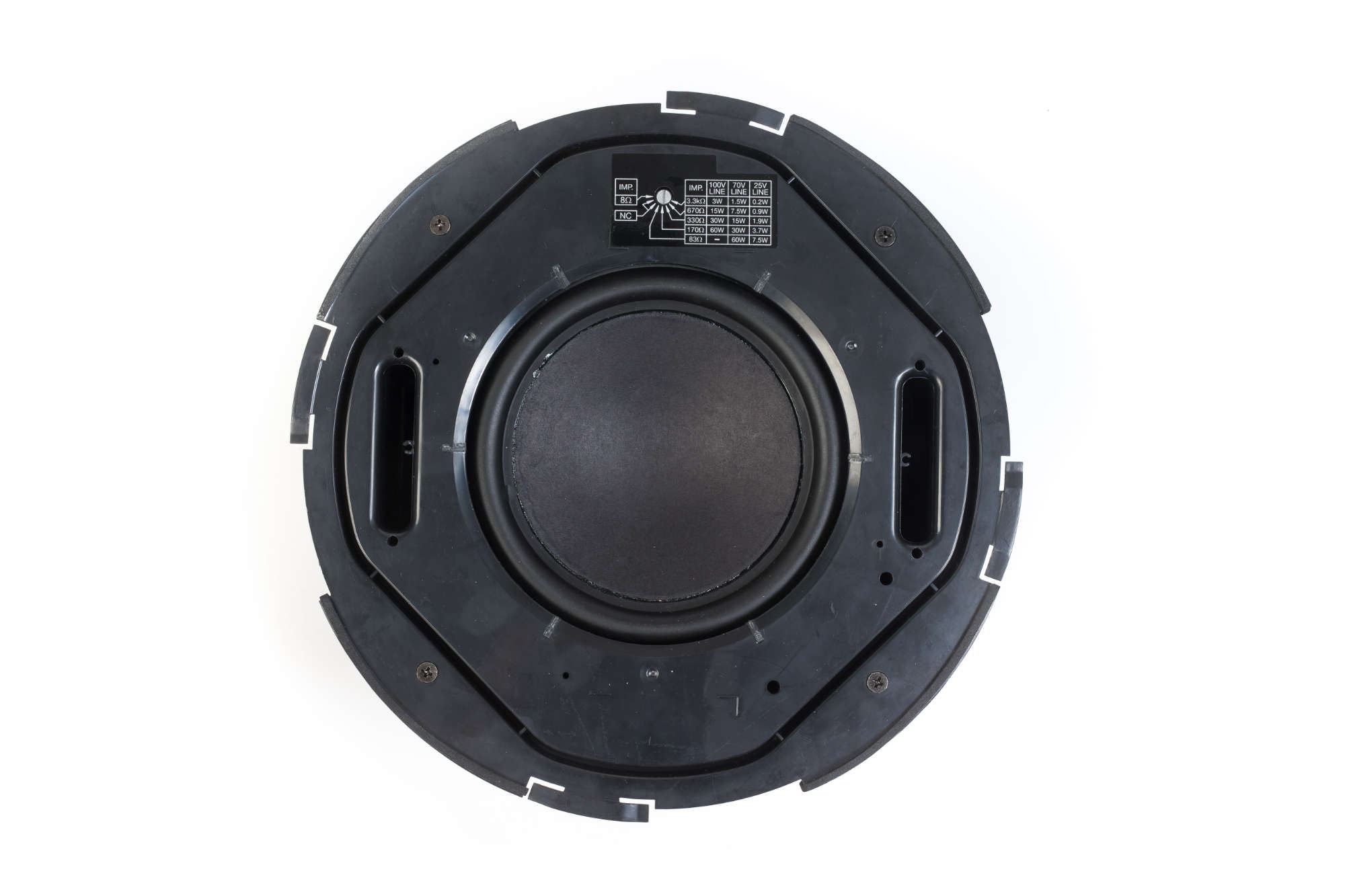

- 16 公分（6.5 吋）錐形，60W 連續功率

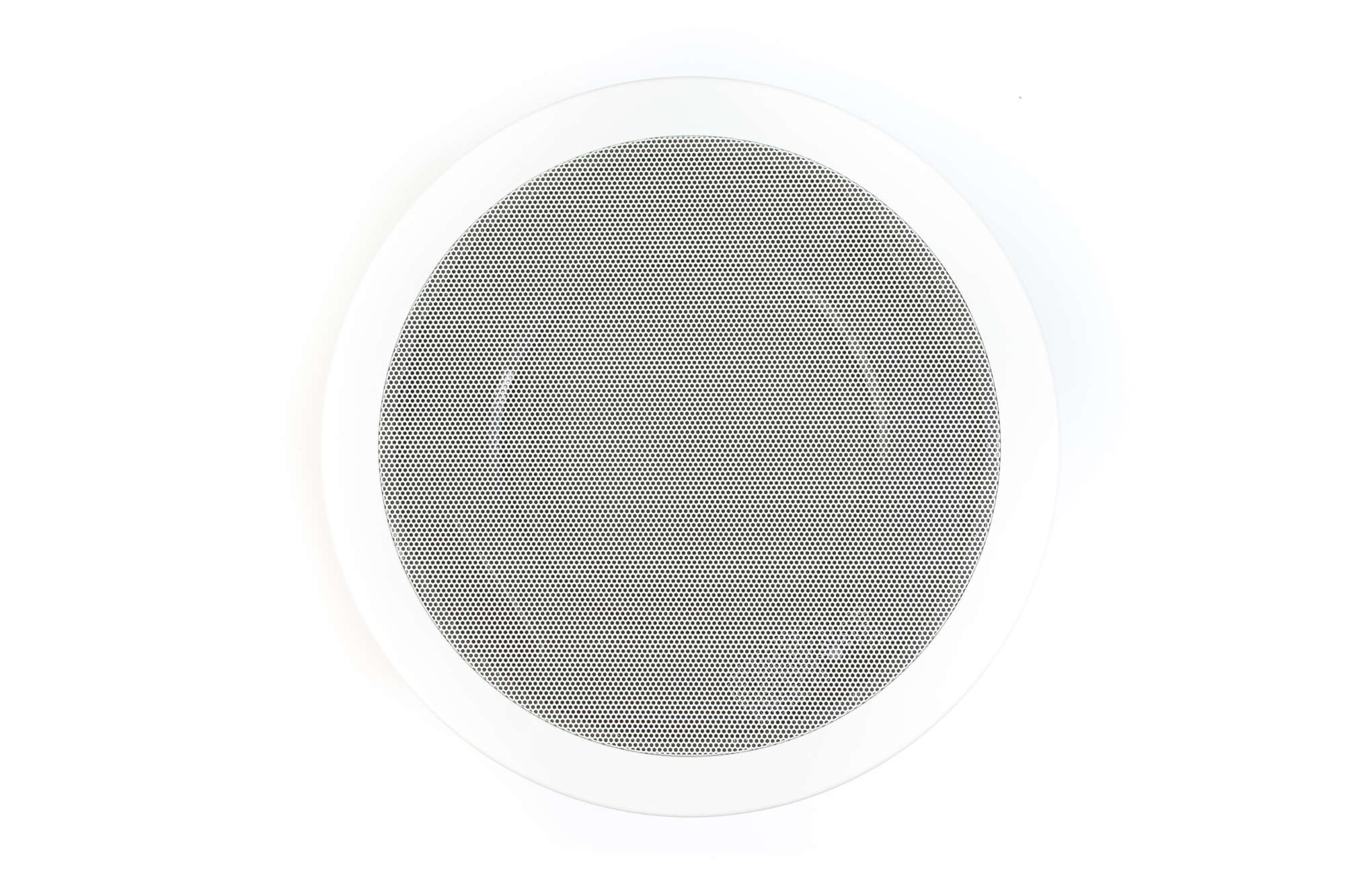

- 旋轉格柵，可實現快速和高效的照明。安裝方便
- 分接開關允許70V/100V或8Ω操作
- 具有過載保護的低通濾波器
外箱型式
Bass reflex type
額定輸入
60W (High Impedance)
輸入功率
Continous: 60W (8Ω) (IEC60268-5)
Program: 120W (8Ω)
Program: 120W (8Ω)
額定阻抗
100V line : 170Ω (60W), 330Ω (30W), 670Ω (15W), 3.3kΩ (3W)
70V line : 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 3.3kΩ (1.5W)
25V line : 83Ω (7.5W), 170Ω (3.7W), 330Ω (1.9W), 670Ω (0.9W), 3.3kΩ (0.2W)
8Ω (120W)
70V line : 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 3.3kΩ (1.5W)
25V line : 83Ω (7.5W), 170Ω (3.7W), 330Ω (1.9W), 670Ω (0.9W), 3.3kΩ (0.2W)
8Ω (120W)
輸出音壓
87dB (1W, 1m) installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling or wall)
81 dB (1W, 1m) installation in free sound field (Measured in an echoic chamber)
81 dB (1W, 1m) installation in free sound field (Measured in an echoic chamber)
頻率響應
60 - 250Hz (-10dB) Installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling or wall)
(Measured by installing the unit in the center of a ceiling or wall)
喇叭組成
Low frequency : 16 cm cone-type
Mounting Hole
Ø250 mm (Maximum ceiling thickness: 37 mm)
輸入端子

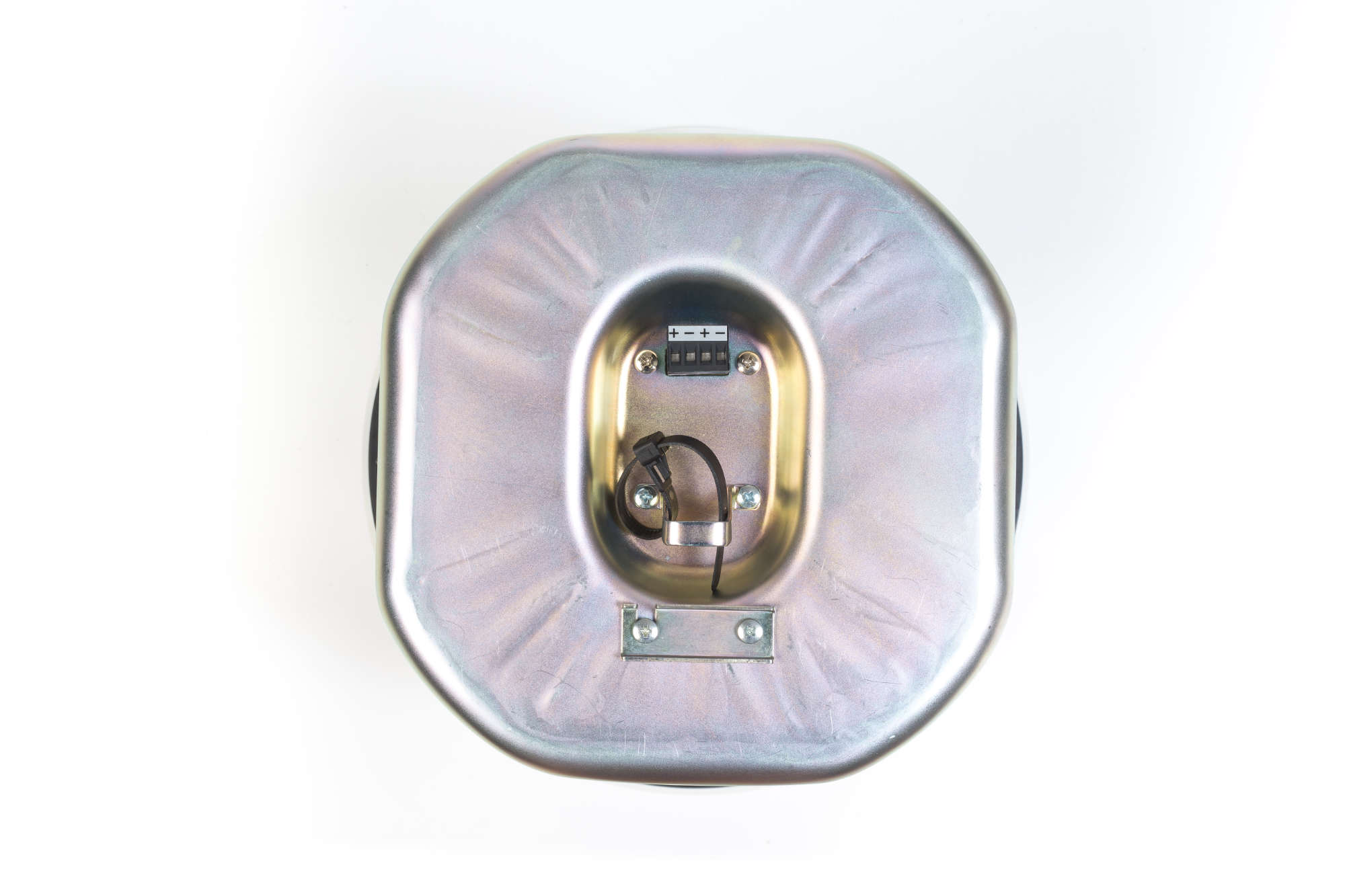

Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
使用電纜線
Solid copper wire: Ø0.5 - Ø1.6 mm (equivalent to AWG No. 24 -14)
Stranded copper wire: 0.2 - 2.5 mm (equivalent to AWG No. 24 -14)
Stranded copper wire: 0.2 - 2.5 mm (equivalent to AWG No. 24 -14)
外觀
Enclosure: Steel plate, plating, Baffle: Fire-resistant ABS resin (UL-94 V-0), black
Rim: Fire-resistant ABS resin (UL-94 V-0 ), white (RAL 9016), Punched net: Steel plate, white (RAL 9016), paint
Rim: Fire-resistant ABS resin (UL-94 V-0 ), white (RAL 9016), Punched net: Steel plate, white (RAL 9016), paint
尺寸
Ø280 x 198 (D) mm (Ø11" x 7.79")
重量
6.3kg (including mounting accessory)
附屬品
Grille x1, Ceiling reinforcement x1, Safety wire x1, Paper pattern x1
選配品
Anchor hanging bracket: HY-AH1, Tile bar bridge: HY-TB1
