FB-120B
超低音喇叭
FB-120B
FB-120 是一款緊湊型室內使用低音炮系統，採用高功率 30 厘米（12 英寸）低音揚聲器。臨時安裝再現動態低頻聲音。
- 緊湊型低音炮

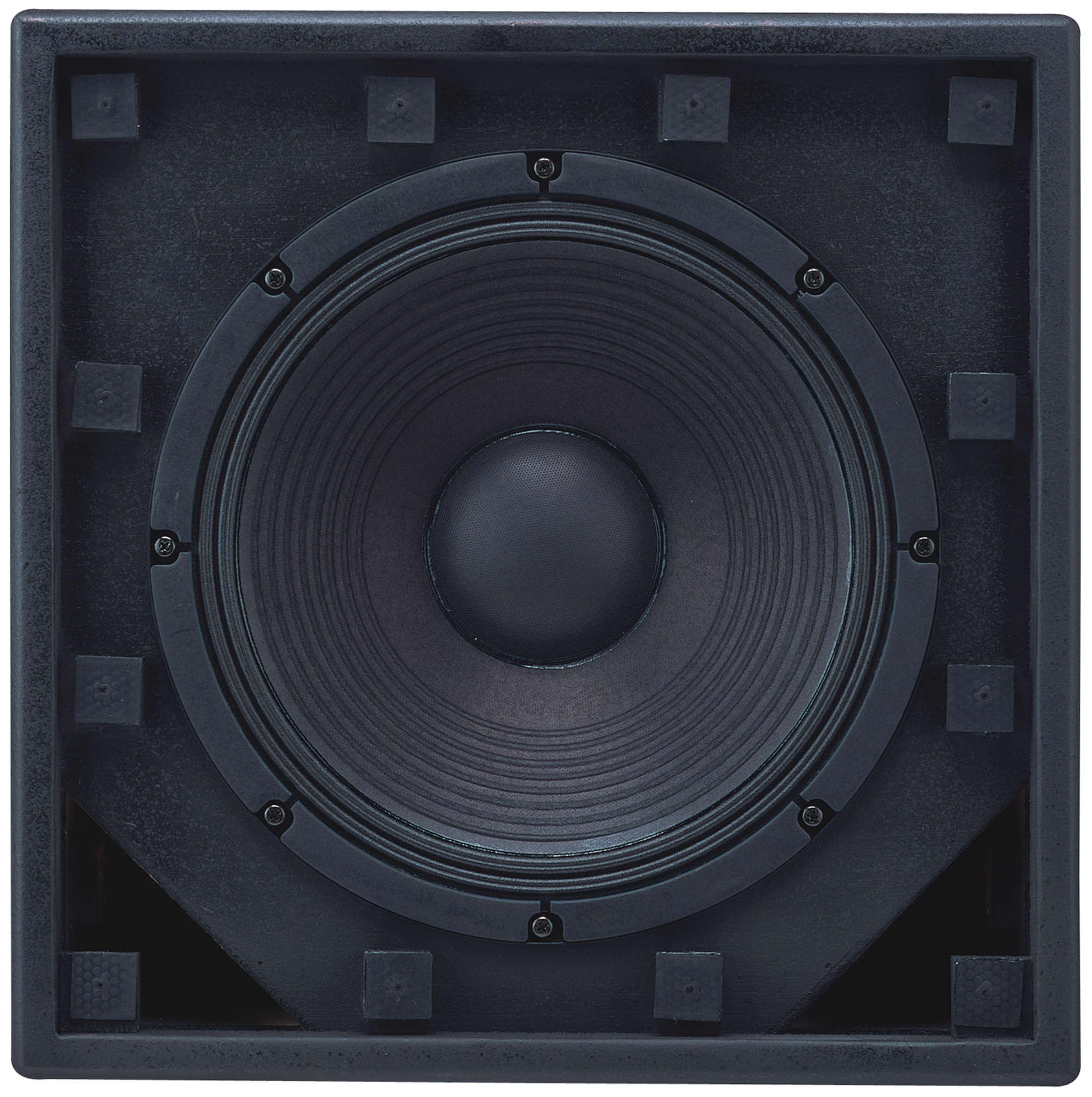

- 30 公分（12“）低音揚聲器
- 非常適合與HX-5 揚聲器配合使用
- 極寬的頻率範圍
- 適用於索具、地板、牆壁、角落或天花板安裝
- 600 W 高功率重低音系統
- 提手
- Speakon® 連接器
- 多個單元級聯
輸入功率
Continuous pink noise: 200 W
Continuous program: 600 W
Continuous program: 600 W
阻抗
8 Ω
輸出音壓電平
90 dB (1 W, 1 m) at installation in free sound field
96 dB (1 W, 1 m) at installation in 1/2 free sound field
96 dB (1 W, 1 m) at installation in 1/2 free sound field
頻率響應
40 - 1.2 kHz (-10 dB)
喇叭組成
30 cm cone-type
輸入端子

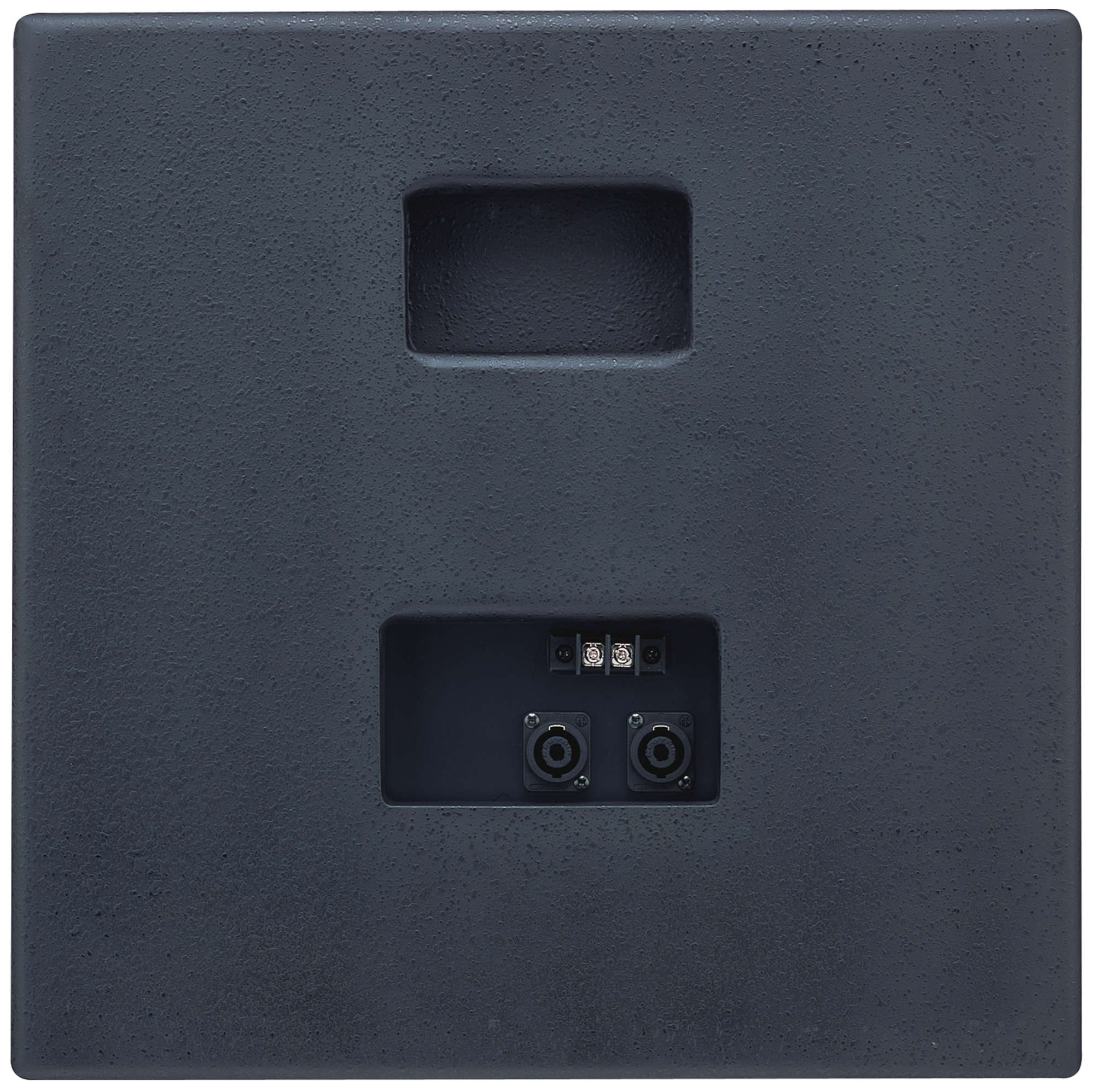

Speakon NL4MP x 2 and M4 screw terminal, distance between barriers: 11 mm
外觀
Enclosure: Plywood
Punched net: Surface-treated steel plate, black, paint
Punched net: Surface-treated steel plate, black, paint
尺寸
408 (W) x 408 (H) x 450 (D) mm
重量
15 kg
選配品
Speaker rigging frame: HY-PF1B
請下載資料以獲取完整規格。
可選配件
The sub bass loudspeaker systems shall incorporate a single 30 cm(12") transducer. System frequency response shall vary no more than +/-3 dB from 40 Hz to 1.2 kHz measured on axis. The loudspeaker shall produce a Sound Pressure Level (SPL) of 90 dB on axis at 1 meter with a power input of 1 watt, and shall be capable of producing 600 watts of continuous power and have a nominal impedance of 8 Ohms.
The loudspeaker enclosure shall be rectangular in shape and will be of a plywood construction with punch net steel perforated front grill. It shall be finished in black.
Input connectors shall be Neutrik NL4 MP and two M4 terminal strips.
Power Handling Capacity: Continuous pink noise: 200 W, Continuous program: 600 W
Impedance: 8 Ω
Sensitivity: 90 dB (1 W, 1 m) at installation in free sound field 96 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response: 40 - 1.2 kHz (-10 dB)
Speaker Component: 30 cm (12") cone-type
Input Terminal: Speakon NL4MP × 2 and M4 screw terminal, distance between barriers: 11 mm (0.43")
Finish Enclosure: Plywood
Punched net: Surface-treated steel plate, black, paint
Dimensions: 408 (W) × 408 (H) × 450 (D) mm (16.06" x 16.06" x 17.72")
Weight: 15 kg (37.48 lb.)
Power Handling Capacity: Continuous pink noise: 200 W, Continuous program: 600 W
Impedance: 8 Ω
Sensitivity: 90 dB (1 W, 1 m) at installation in free sound field 96 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response: 40 - 1.2 kHz (-10 dB)
Speaker Component: 30 cm (12") cone-type
Input Terminal: Speakon NL4MP × 2 and M4 screw terminal, distance between barriers: 11 mm (0.43")
Finish Enclosure: Plywood
Punched net: Surface-treated steel plate, black, paint
Dimensions: 408 (W) × 408 (H) × 450 (D) mm (16.06" x 16.06" x 17.72")
Weight: 15 kg (37.48 lb.)
Optional rigging frame shall be available, model HY-PF1B, manufactured by TOA Corporation
Manufacturer TOA Corporation
Model FB-120B
Manufacturer TOA Corporation
Model FB-120B
