F-2352C
30W寬指向性天花板嵌頂喇叭
F-2352C

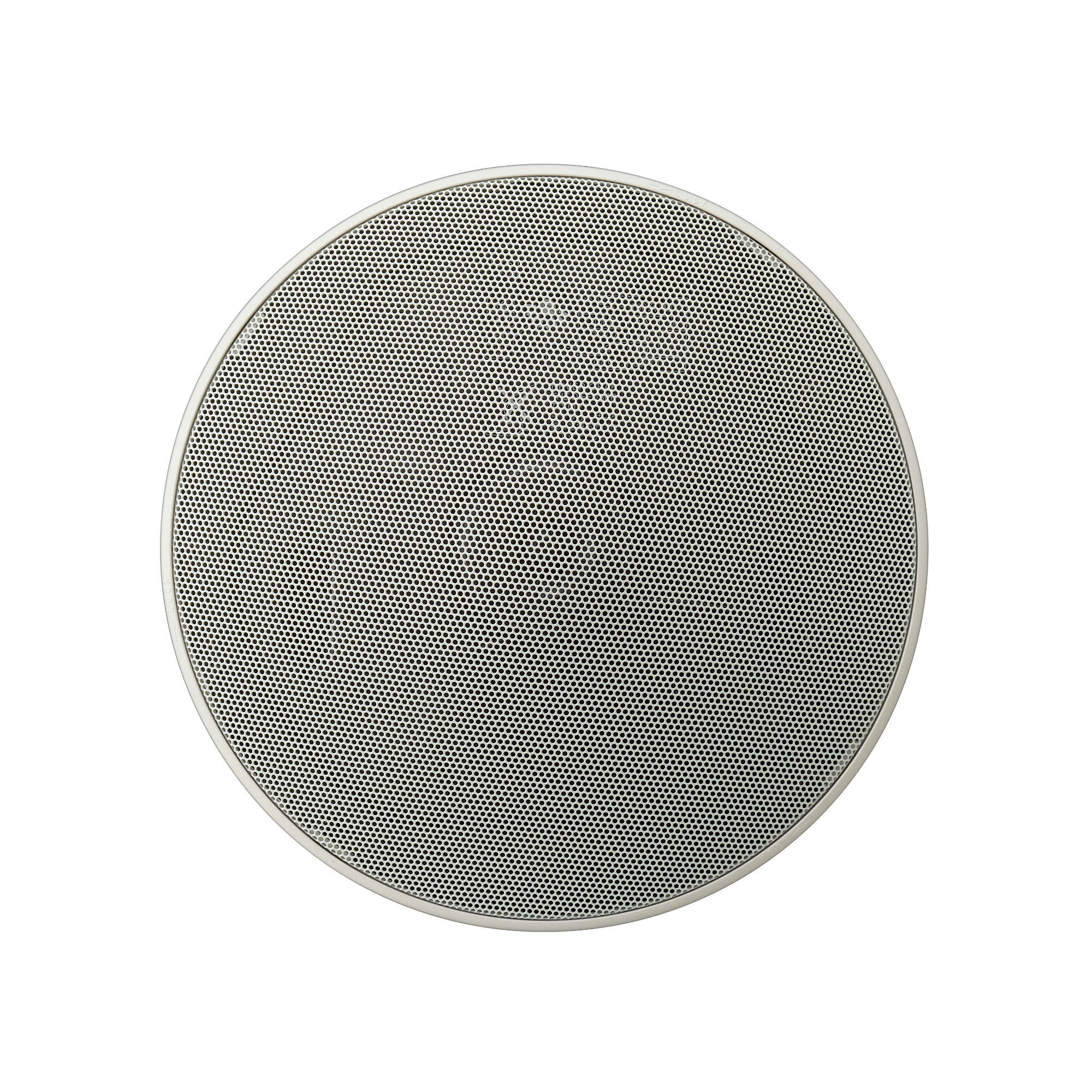

F-2352C 吸頂式和壁掛式揚聲器覆蓋範圍極廣，可用於 25、70 和 100 V 線路應用。在任何位置都可以均勻地聽到均衡良好的聲音。
- 連接埠低音反射設計
- 同軸：5 吋錐體驅動器和圓頂高音揚聲器
- 特殊擴散器提供寬闊的離軸高頻響應
- 金屬後殼和安全電纜
- 帶環通終端的可拆卸接線盒
- 過載保護電路
- 適用於中等天花板高度（ 2 至 4米）
外箱型式
Bass reflex type
額定輸入
30 W (High Impedance)
輸入功率
Continuous pink noise: 60 W (8 Ω)
Continuous program: 120 W (8 Ω)
Continuous program: 120 W (8 Ω)
阻抗
100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
25 V line: 170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W), 10 kΩ (0.06 W)
8 Ω
70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
25 V line: 170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W), 10 kΩ (0.06 W)
8 Ω
輸出音壓電平
90 dB (1 W, 1 m)
頻率響應
70 Hz - 20 kHz (-10 dB), 50 Hz - 20 kHz (-20 dB)
at installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling.)
at installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling.)
喇叭組成
High frequency: Balanced dome-type, Low frequency: 12 cm cone-type
Mounting Hole
Ø200 mm (Maximum ceiling thickness: 37 mm)
輸入端子
Removable locking connector with screw-down terminals
(2 input terminals and 2 bridge terminals)
(2 input terminals and 2 bridge terminals)
使用電纜線
Solid copper wire: Ø0.5 - Ø1.6 mm (equivalent to AWG No. 24 - 14)
Stranded copper wire: 0.2 - 2.5 mm² (equivalent to AWG No. 24 - 14)
Stranded copper wire: 0.2 - 2.5 mm² (equivalent to AWG No. 24 - 14)
外觀
Enclosure: Steel plate, plating
Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
Punched net: Steel plate, white, paint
Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
Punched net: Steel plate, white, paint
尺寸
Ø230 x 229 (D) mm
重量
3.7 kg (including mounting accessories)
附屬品
Panel ……1, Ceiling reinforcement ring ……1, Safety wire ……1, Paper pattern …1
選配品
Anchor hanging bracket: HY-AH1, Back can: HY-BC1, Tile bar bridge: HY-TB1, Trim ring: HY-TR1
請下載資料以獲取完整規格。
可選配件
The overhead music/paging speaker shall be a two-way bass-reflex enclosure type suitable for ceiling mounting. The low frequency component shall be a 4.72” (12 cm) cone-type speaker and the high frequency component shall be a 1” (2.5 cm) balanced-dome tweeter. The speaker assembly shall be suitable for use in air handling spaces.
The speaker shall be compatible with low and high impedance speaker systems and include a built-in 25/70.7/100 V matching transformer. The front baffle shall have screwdriver-adjustable tap settings of: 30 W, 15 W, 5 W, 1.5 W, and 0.5 W for 70.7 V operation; 3.7 W, 1.9 W, 0.6 W, 0.2 W, and 0.06 W for 25 V operation; and 30 W, 10 W, 3 W, and 1 W for 100 V operation; plus settings for 16 ohm and direct 8 ohm operation. Built-in overload protection circuitry shall protect the speaker against excessive input power.
The output sound pressure level at a distance of 1 m with 1 W of input power applied shall be 90dB SPL. The rated power handling (Continuous Program) shall be 120 W at 8 ohms, 60 W at 16 ohms, and 30 W when used with a 70.7, or 100 V line system. The speaker shall have a frequency response range from 70 Hz to 20k Hz. Speaker directivity shall be less than Q = 8 for all ISO 1/3-octave bands up to 4k Hz when measured in a half-space anechoic environment using 1/3-octave band-limited pink noise.
The speaker baffle shall be made of fire-resistant ABS resin. The rear enclosure shall be made from a single piece of steel plate. The grille shall be white painted steel plate with fire-resistant ABS resin trim and shall be field re-paintable. Instructions for re-painting the grille shall be included in the speaker package. The speaker shall be equipped with a removable locking connector having two screw-down input terminals and two bridging screw-down pass-through terminals.
The speaker shall be no greater than 9.1” (230 mm) outside diameter shall require a circular cutout no greater than 8”(200 mm), and shall be capable of mounting in surfaces up to 1.46”(37 mm) thick. The rear enclosure shall extend no more than 7.9”(200 mm) above the mounting plane. The speaker shall weigh no more than 8.16 lbs (3.7 kg).
The overhead music/paging speaker shall be TOA model F-2352C.
The tile bridge for drop ceiling installation shall be TOA model HY-TB1.
The trim-ring for covering oversized holes (9” to 11.8”) shall be TOA model HY-TR1.
The black painted rear enclosure for exposed ceiling installation shall be TOA model HY-BC1.
