F-1522SC
6W寬指向性天花板嵌頂喇叭
F-1522SC

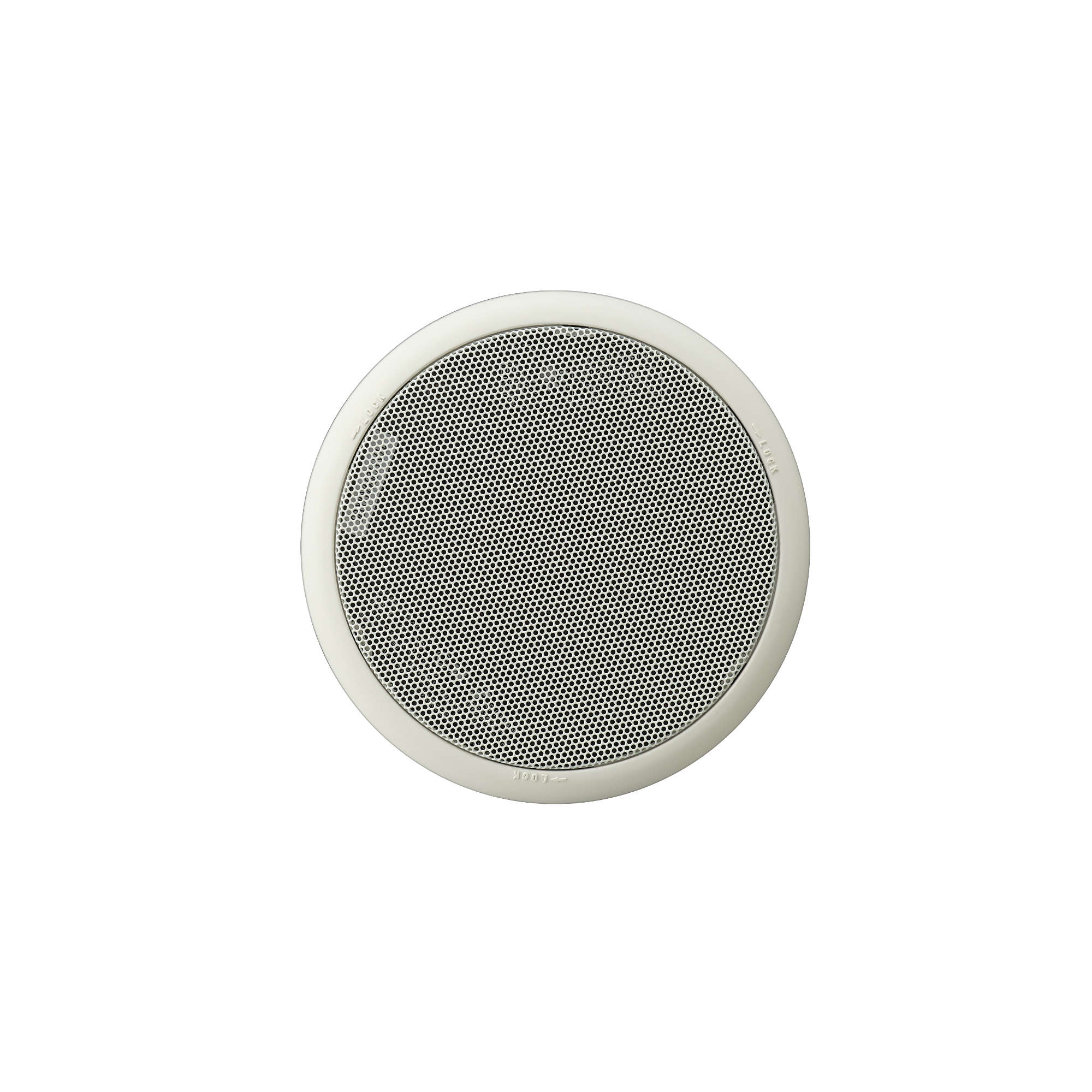

F-1522SC 吸頂式和壁掛式揚聲器覆蓋範圍極廣，可用於 25、70 和 100 V 線路應用。在任何位置都可以均勻地聽到均衡良好的聲音。
- 4吋全頻驅動器
- 平坦的前面板
- 117毫米安裝深度
- 易於安裝
- 輸入即使在安裝後，選擇開關也可以輕鬆驗證和更改當前阻抗設定
- 適用於中等天花板高度（2 至4 m）
- 特別適用於深度有限的薄型天花板和具有以下用途的應用：更低的耗電量需求
額定輸入
6 W (High Impedance)
輸入功率
Continuous pink noise: 9 W (8 Ω)
Continuous program: 18 W (8 Ω)
Continuous program: 18 W (8 Ω)
阻抗
100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W)
70 V line: 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
25 V line: 830 Ω (0.75 W), 1.7 kΩ (0.4 W), 3.3 kΩ (0.2 W)
8 Ω
70 V line: 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
25 V line: 830 Ω (0.75 W), 1.7 kΩ (0.4 W), 3.3 kΩ (0.2 W)
8 Ω
輸出音壓電平
88 dB (1 W, 1 m)
頻率響應
65 Hz - 18 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB)
at installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling.)
at installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling.)
喇叭組成
10 cm cone-type
Mounting Hole
Ø135 mm (Maximum ceiling thickness: 37 mm)
輸入端子
Push-in connector (Bridging terminal-2 branch type)
使用電纜線
600 V Vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: Ø0.8 - Ø1.6 mm (equivalent to AWG No. 20 - 15)
7-core twisted copper wire: 0.75 - 1.25 mm² (equivalent to AWG No. 18 - 17)
Solid copper wire: Ø0.8 - Ø1.6 mm (equivalent to AWG No. 20 - 15)
7-core twisted copper wire: 0.75 - 1.25 mm² (equivalent to AWG No. 18 - 17)
外觀
Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
Punched net: Steel plate, white, paint
Dust-proof bag: Artificial fiber, black
Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
Punched net: Steel plate, white, paint
Dust-proof bag: Artificial fiber, black
尺寸
Ø155 x 117 (D) mm
重量
1 kg (including panel)
附屬品
Panel …1, Paper pattern …1
選配品
Reinforcement ring: HY-RR1
請下載資料以獲取完整規格。
The overhead music/paging speaker shall be a full-range bass-reflex enclosure type suitable for ceiling mounting, incorporating a 3.94” (12 cm) cone-type speaker.
The speaker shall be compatible with low and high impedance speaker systems and include a built-in 25/70.7/100 V matching transformer. The front baffle shall have screwdriver-adjustable tap settings of: 6 W, 3 W, and 1.5 W for 70.7 V operation; 0.75 W, 0.4 W, and 0.2 W for 25 V operation; and 6 W and 3 W for 100 V operation; plus settings for 16 ohm and direct 8 ohm operation.
The output sound pressure level at a distance of 1 m with 1 W of input power applied shall be 88 dB SPL. The rated power handling (Continuous Program) shall be 18 W at 8 ohms, 12 W at 16 ohms, and 6 W when used with a 70.7, or 100 V line system. The speaker shall have a frequency response range from 65 to 18k Hz. Speaker directivity shall be less than Q = 8 for all ISO 1/3-octave bands up to 4k Hz when measured in a half-space anechoic environment using 1/3-octave band-limited pink noise.
The speaker baffle shall be made of fire-resistant ABS resin. The grille shall be white painted steel plate with fire-resistant ABS resin trim and shall be field re-paintable. Instructions for re-painting the grille shall be included in the speaker package. The speaker shall be equipped with a spring-loaded push-in connector having two input terminals and two bridging pass-through terminals.
The speaker shall be no greater than 6.13” outside diameter, shall require a circular cutout no greater than 5.31”, and shall be capable of mounting in surfaces up to 1.46” thick. The rear of the speaker shall extend no more than 4.25” above the mounting plane. The speaker shall weigh no more than 2.2 lbs.
The overhead music/paging speaker shall be TOA model F-1522SC.
The ceiling reinforcement ring for drop ceiling installation shall be TOA model HY-RR1.
