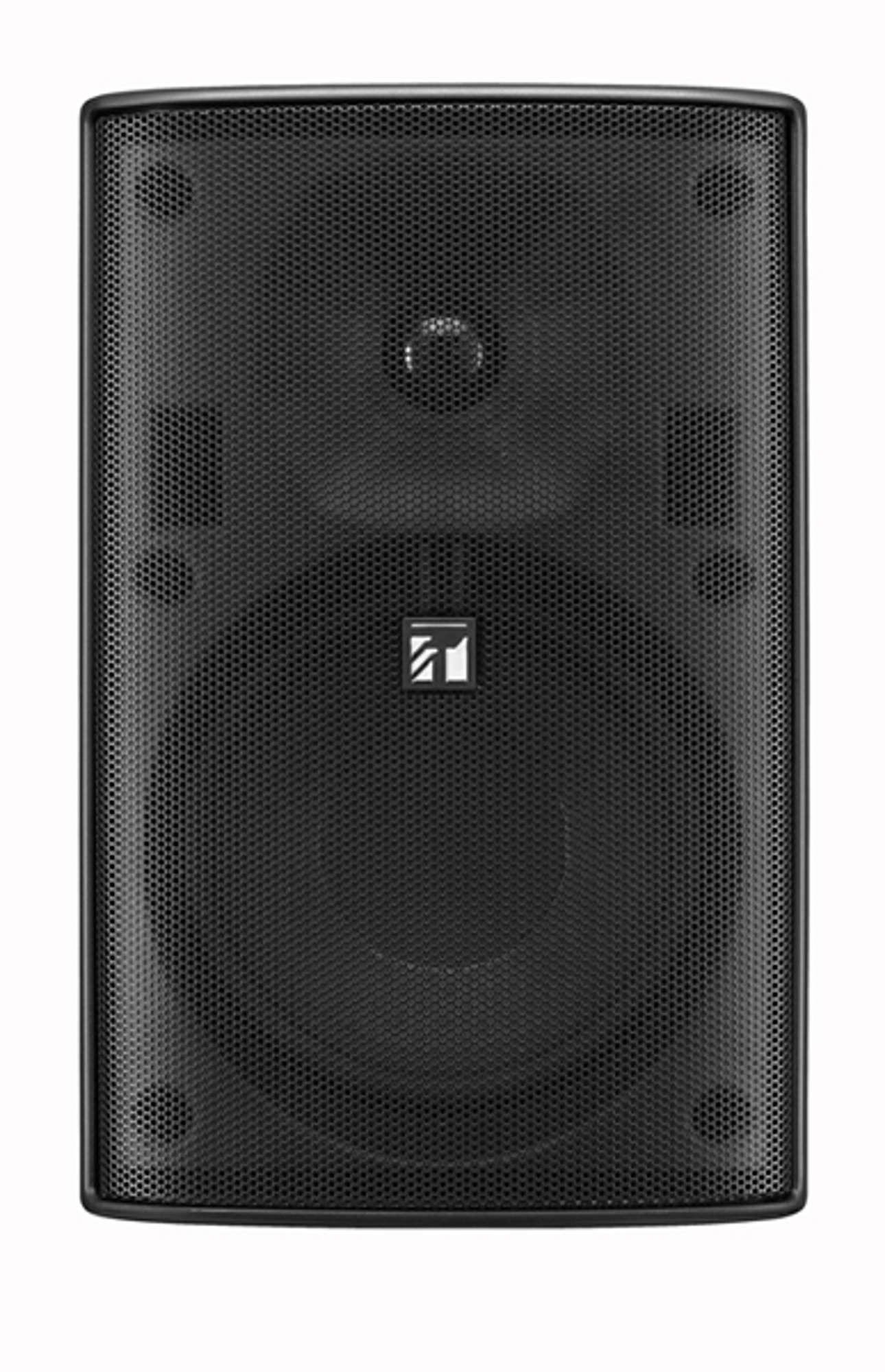

F-1300B
二音路箱型喇叭
F-1300B
F-1300 系列揚聲器是緊湊型兩路揚聲器系統，專為實現高效率、寬範圍和高功率輸入處理能力而設計。這些揚聲器系統可以按照適合位置和預期應用的理想方式安裝。
- 緊湊型寬分散揚聲器
- 高達 150 W 連續節目
- 分散角為 90° x 90°

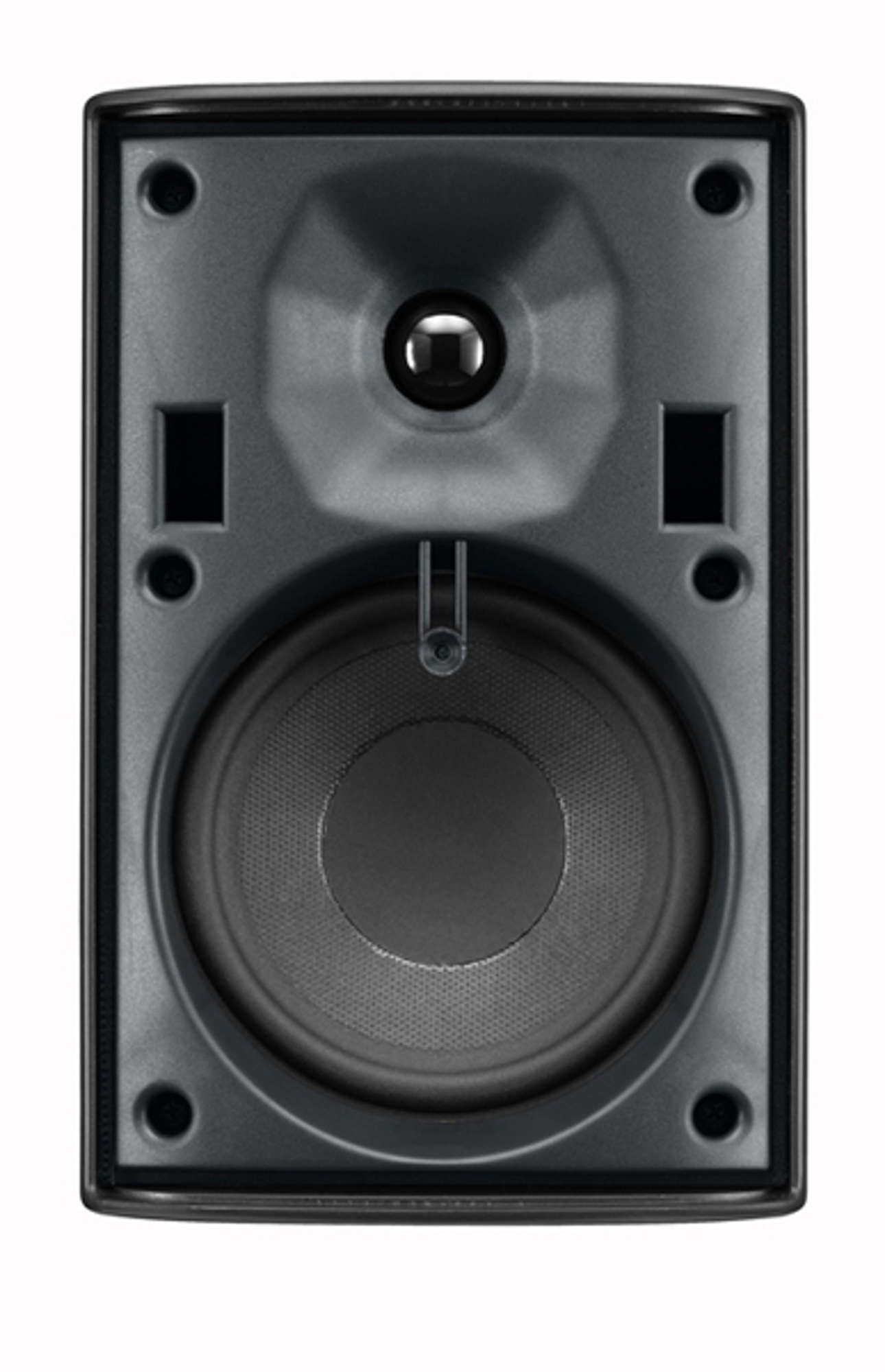

- 2 路揚聲器配有高品質13 公分低音揚聲器和平衡球頂高音揚聲器
- 可噴漆
外箱型式
Bass-reflex type
輸入功率
Continuous pink noise: 50 W
Continuous program: 150 W
Continuous program: 150 W
額定阻抗
8 Ω
輸出音壓電平
90 dB (1 W, 1 m) at installation in 1/2 free sound field
頻率響應
80 - 20,000 Hz, -10 dB at installation in 1/2 free sound field
分音頻率
2 kHz
指向性角度
Horizontal: 110°, Vertical: 100°
喇叭組成
Low frequency: 13 cm (5) cone-type
High frequency: 25 mm (1) dome tweeter
High frequency: 25 mm (1) dome tweeter
輸入端子
Push-in terminal
外觀
Enclosure: HIPS, black
Punched net: Surface-treated steel plate, black, paint
Joint bracket, wall bracket: Steel plate, t1.6, black, paint
Speaker bracket: Die-cast aluminum, black, paint
Punched net: Surface-treated steel plate, black, paint
Joint bracket, wall bracket: Steel plate, t1.6, black, paint
Speaker bracket: Die-cast aluminum, black, paint
尺寸
162 (W) x 250 (H) x 161 (D) mm (6.38 x 9.84" x 6.34")
重量
3.1 kg (6.83 lb) (including the supplied brackets)
附屬品
Speaker bracket …1, Joint bracket …1, Wall bracket …1,
Bracket fixing screw …1 set
Bracket fixing screw …1 set
選配品
Board hanger bracket: HY-BH10B
Ceiling mount bracket: HY-CM10B (used for the horizontal speaker mounting)
Cluster bracket: HY-CL10B
Speaker stand: ST-16A
Ceiling mount bracket: HY-CM10B (used for the horizontal speaker mounting)
Cluster bracket: HY-CL10B
Speaker stand: ST-16A
Note: Bolts and nuts for mounting the bracket to the wall or ceiling are not included.
Prepare them separately.
Prepare them separately.
請下載資料以獲取完整規格。
The speaker shall be a two-way bass reflex enclosure suitable for ceiling or wall mounting. The low frequency component shall be a 13 cm (5") cone-type woofer. The high frequency component shall be a 25 mm (1") dome tweeter. For clear, wide-area sound coverage, the speaker shall be 110° (H) x 100° (V) wide dispersion angle high frequency horn. The speaker shall come with separate HF and LF protection circuitry.
The speaker shall be rated at 8 ohms. The sensitivity at a distance of 1m with a 1W input level applied shall be 90 dB. The rated power handling shall be 50 W continuous pink noise and 150 W continuous program. The speaker shall have a frequency response of 80 to 20 kHz.
The speaker enclosure shall be constructed of HIPS resin. The speaker shall be available in white or black, and also be repaintable. The grille shall be a surface treated steel plate. Brackets for speaker stand, wall and ceiling installation shall be included. There shall be also optionally available brackets for more demanding installations.
The unit shall be compact and lightweight with dimensions of 162 x 250 x 161 mm (6.38" x 9.84" x 6.34") and a weight of 3.1 kg (6.83 lbs.).
The speaker shall be a TOA model F-1300B/F-1300W.
The board hanger bracket shall be the HY-BH10B.
The ceiling mount bracket shall be the HY-CM10B/HY-CM10W.
The cluster bracket shall be the HY-CL10B.
The subwoofer shall be the FB-120B/120W.
