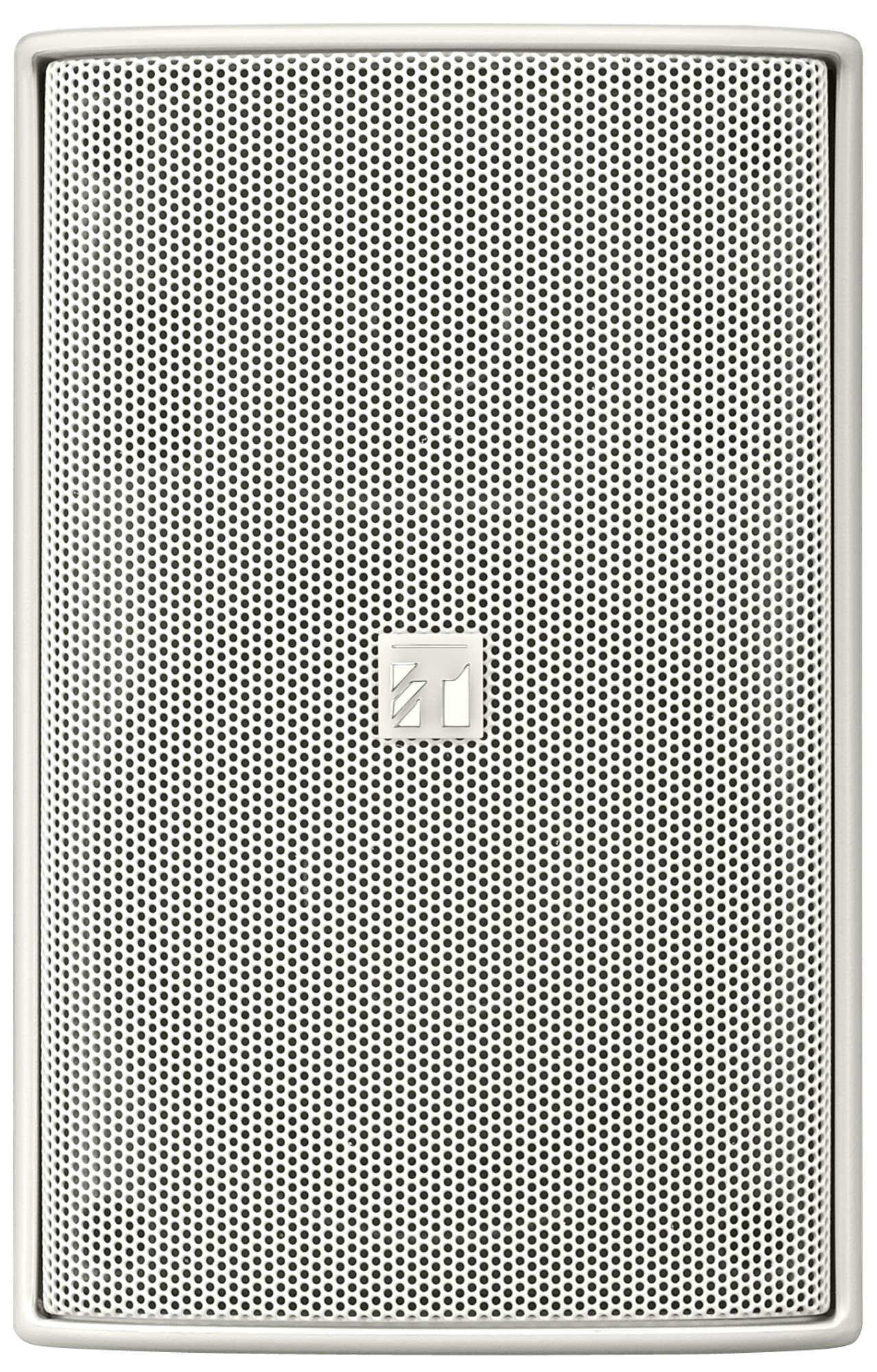

F-1000WT
二音路箱型喇叭
F-1000WT
F-1000 系列揚聲器是緊湊型兩路揚聲器系統，專為實現高效率、寬範圍和高功率輸入處理能力而設計。這些揚聲器系統可以按照適合位置和預期應用的理想方式安裝。
- 高達 90 W 的連續程式 (F-1000B / F-1000W)
- 90° x 90° 的色散角
- 高品質 2 路揚聲器10 厘米低音揚聲器和平衡球頂高音揚聲器
- 可噴漆
外箱型式
Bass-reflex type
額定輸入
15 W (high impedance)
輸入功率
Continuos pink noise: 30 W (low impedance)
Continuos program: 90 W (low impedance)
Continuos program: 90 W (low impedance)
額定阻抗
8 Ω
100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
輸出音壓電平
87 dB (1 W, 1 m) at installation in 1/2 free sound field
頻率響應
85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
分音頻率
5 kHz
指向性角度
Horizontal: 90°, Vertical: 90°
喇叭組成
Low frequency: 10 cm (4) cone-type
High frequency: Balanced dome tweeter
High frequency: Balanced dome tweeter
輸入端子
Push-in terminal
外觀
Enclosure: HIPS, white
Punched net: Surface-treated steel plate, white, paint
Joint bracket, wall bracket: Steel plate, t1.6, white, paint
Speaker bracket: Die-cast aluminum, white, paint
Punched net: Surface-treated steel plate, white, paint
Joint bracket, wall bracket: Steel plate, t1.6, white, paint
Speaker bracket: Die-cast aluminum, white, paint
尺寸
130 (W) x 202 (H) x 131 (D) mm (5.12 x 7.95" x 5.16")
重量
2 kg (4.41 lb) (including the supplied brackets)
附屬品
Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set
選配品
Board hanger bracket: HY-BH10B,
Ceiling mount bracket: HY-CM10W (used for the horizontal speaker mounting),
Cluster bracket: HY-CL10B, Speaker stand: ST-16A
Ceiling mount bracket: HY-CM10W (used for the horizontal speaker mounting),
Cluster bracket: HY-CL10B, Speaker stand: ST-16A
請下載資料以獲取完整規格。
The speaker shall be a two-way bass reflex enclosure suitable for ceiling or wall mounting. The low frequency component shall be a10 cm (4") cone-type woofer. The high frequency component shall be a balanced dome tweeter. For clear, wide-area sound coverage, the speaker shall 90° (H) x 90° (V) wide dispersion-angle high frequency horn.
The rated input shall be 15 W. The speaker shall include a transformer having multiple taps (8ohm, 1 W, 3 W, 5 W, 15 W at 100 V and 0.5 W, 1.5 W, 2.5 W, 7.5 W, 5 W at 70 V) adjustable via the rear of the enclosure. The sensitivity at a distance of 1m with a 1 W input level applied shall be 87 dB. The speaker shall have a frequency response of 85 – 20kHz.
The speaker enclosure shall be constructed of HIPS resin. The speaker shall be available in white or black, and also be repaintable. The grille shall be a punched net, surface-treated steel plate. Brackets for speakerstand, wall and ceiling installation shall be included. There shall be also optionally available brackets for more demanding installations.
The unit shall be compact and lightweight with dimensions of 130 x 202 x 131 mm (5.12" x 7.95" x 5.16") and a weight of 1.8 kg (3.97 lbs.).
The speaker shall be a TOA model F-1000BT/F-1000WT.
The board hanger bracket shall be the HY-BH10B.
The ceiling mount bracket shall be the HY-CM10B/HY-CM10W.
The cluster bracket shall be the HY-CL10B.
