EM-800
鵝頸麥克風
EM-800

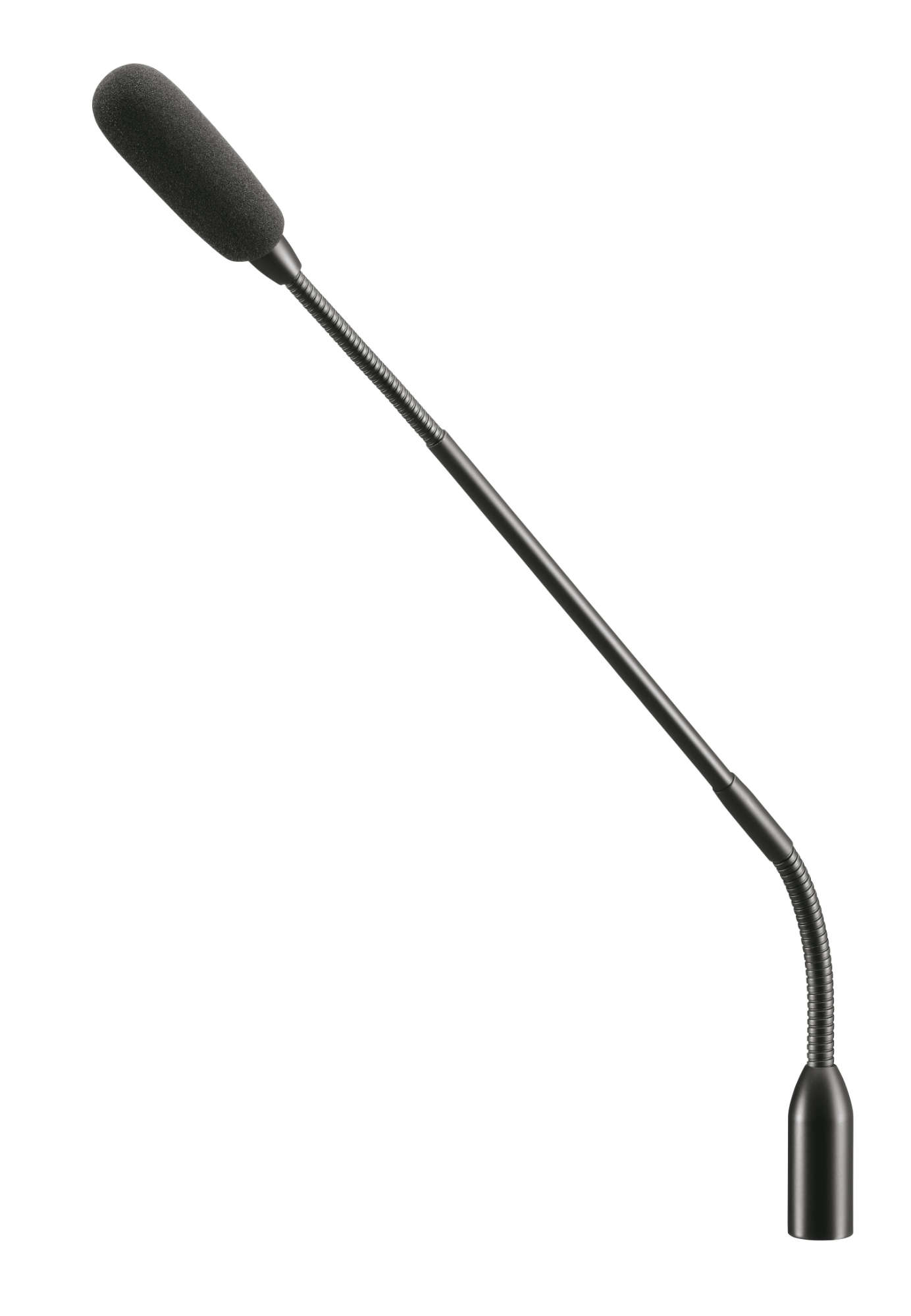

EM-800 是一款纖薄、高品質、心形電容麥克風，設計用於會議室、報告廳和尋呼應用。它可以輕鬆插入專用的選購 ST-800 麥克風支架。
- 用於語音應用的鵝頸麥克風
- 出色的高頻響應提供清晰的輸出
- 高靈敏度提供令人滿意的音調響應
- 帶有兩個調整點允許更靈活的麥克風定位角度
- 抑制不需要的離軸聲音，最大限度地減少可能的反饋
- 提供可選的麥克風支架
Element
Electret condenser
Polar Pattern
Cardioid
阻抗
120 Ω, balanced
輸出音壓電平
-35 dB (1 kHz 0 dB=1 V/Pa)
幻象電源
9 - 52 V DC
頻率響應
60 Hz - 20 kHz
輸出端子
XLR-3-12 equivalent
工作溫度
0 °C to +40 °C (32 ℉ to 104 ℉)
外觀
Body, Shaft: Copper alloy, black, semi-gloss, paint
尺寸
Ø12 x 420 mm (Ø0.47 x 16.54")"
重量
135 g (0.3 lb)
附屬品
Windscreen …1
Compatible Stand
Microphone Stand: ST-800 (option)
※ The EM-800 requires 9 - 52 V DC phantom power for operation.
※ The EM-800 requires 9 - 52 V DC phantom power for operation.
請下載資料以獲取完整規格。
可選配件
The slim gooseneck microphone shall have a unidirectional electret condenser microphone element. The cardioid pickup pattern shall have a high degree of sensitivity, and undesirable off-axis sound rejection to minimize potential feedback. Frequency response shall be 60 Hz to 20 kHz. Rated impedance shall be 120 ohm, balanced, and rated sensitivity shall be –35 dB (1 kHz 0 dB=1 V/Pa). The microphone shall be powered by any phantom power source supplying 9 – 52 volts. The output connector shall be XLR-3-12 equivalent. Operating temperature shall be 0° C to +40° C (32° F to 104° F). Body and shaft finish shall be copper alloy, with black semi-gloss paint. Dimensions shall be ø12 x 420 mm (ø0.47" x 16.54"), and weight shall be 135 g (0.3 lbs.). A windscreen shall be provided as an accessory. Two gooseneck adjustment points shall provide more flexible microphone positioning angles. A windscreen shall be provided as an accessory. The microphone shall be able to be plugged into an optional dedicated microphone stand. The microphone shall provide clear and high-quality sound, and be well-suited for conferences, lectures, and paging applications.
The gooseneck microphone shall be TOA model EM-800.
The microphone stand shall be TOA model ST-800.
