D-2012C
遙控控制單元
D-2012C
D-2012C是專為D-2000數位混音系統所設計之滑軌式控制台。
- 輸入調節：100mm電動滑桿調音控制*12,旋鈕控制*8
- 線性輸入：1頻道(立體)，+10~-20dB ,10KΩ不平衡式RCA Pin-jack
- 耳機輸入：立體，100mW+100mW，32Ω負載標準立體Phone-jack
- 網路I/F：10BASE-T/100BASE-TX(自動協定)，TCP/IP，RJ45接頭
*0 dB = 0.775 V
電源
100 - 120 V AC, 60 Hz
消耗功率
18 W
Volume Adjustment
100 mm (3.94") motorized fader x 12, rotary encoder x 8
Line Input
1 channel (stereo), +10 to -20 dB*, 10 kΩ, unbalanced, RCA Pin-jack
Headphone Output
Stereo, 100 mW + 100 mW (at 32 Ω load), standard stereo phone jack
Monitor Bus
1 stereo input, 1 stereo output
Connector: RJ45 connector
Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable
Maximum cable distance: 100 m or 109.36 yd (between D-2012C and D-2008SP)
Connector: RJ45 connector
Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable
Maximum cable distance: 100 m or 109.36 yd (between D-2012C and D-2008SP)
LAN
Network I/F: 1 channel, 10BASE-T- or 100BASE-TX (Automatic-Negotication), RJ45 connector, Connected via a switching hub
Network Protocol: TCP/IP
Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable
Maximum cable distance: 100 m or 109.36 yd (between D-2012C and a switching hub)
Network Protocol: TCP/IP
Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable
Maximum cable distance: 100 m or 109.36 yd (between D-2012C and a switching hub)
控制
RS-232C: D-sub connector (9 pins) for maintenance use
工作溫度
5 °C to 40 °C (41 ºF to 104 ºF)
外觀
Panel: Surface-treated steel sheet, laminated with polycarbonate sheet, gray, mat

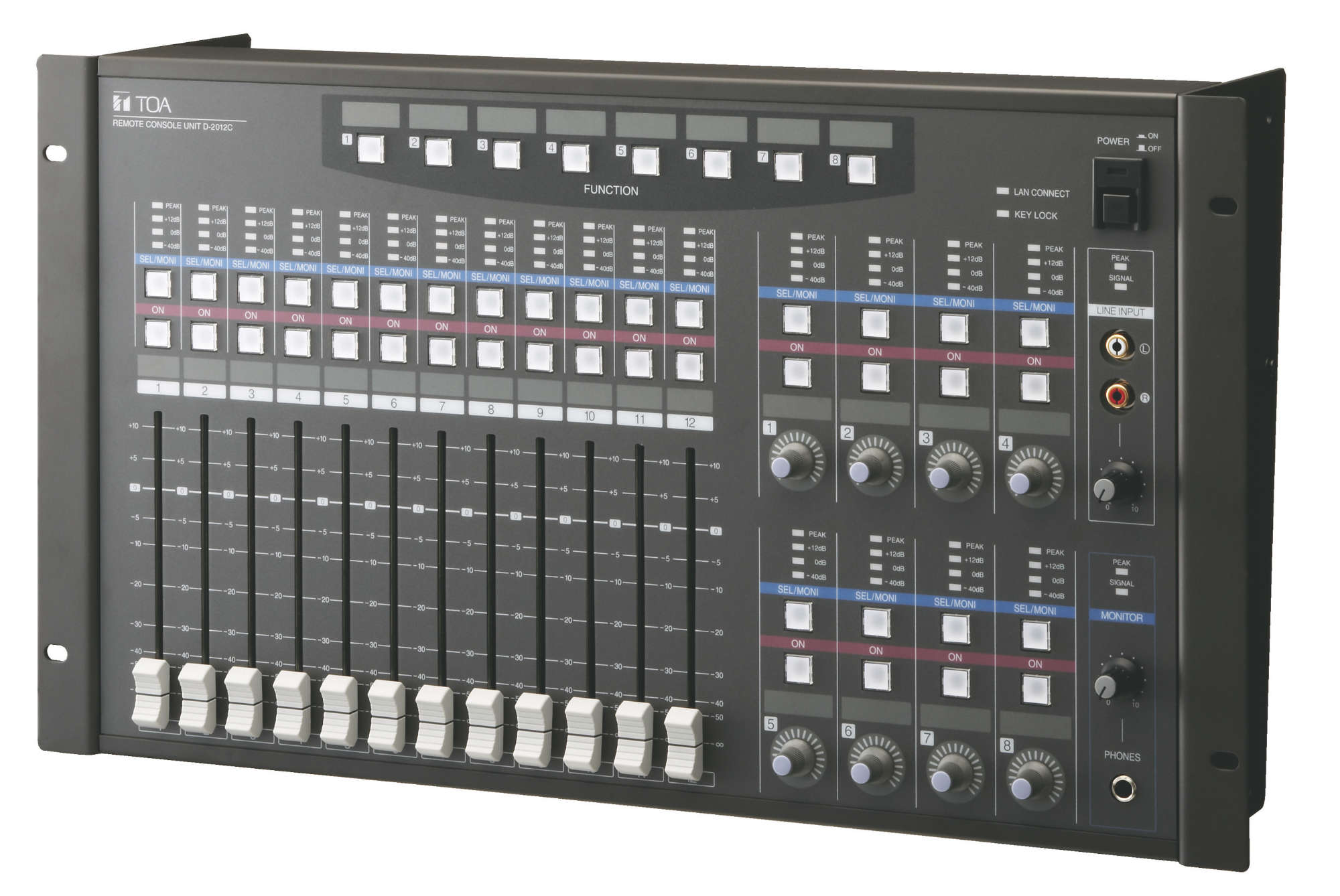

Rack mounting bracket: Surface-treated steel sheet, gray, mat
Rack mounting bracket: Surface-treated steel sheet, gray, mat
尺寸
482 (W) x 266 (H) x 138 (D) mm (18.98" x 10.47" x 5.43")
重量
6.6 kg (14.55 lb)
附屬品
Power cord (2m (6.5 ft) x 1, Rack mounting screw x 4, Fader knob (yellow) x 3, Fader knob (red) x 3, Cord clamp (fitting screw) x 1
選配品

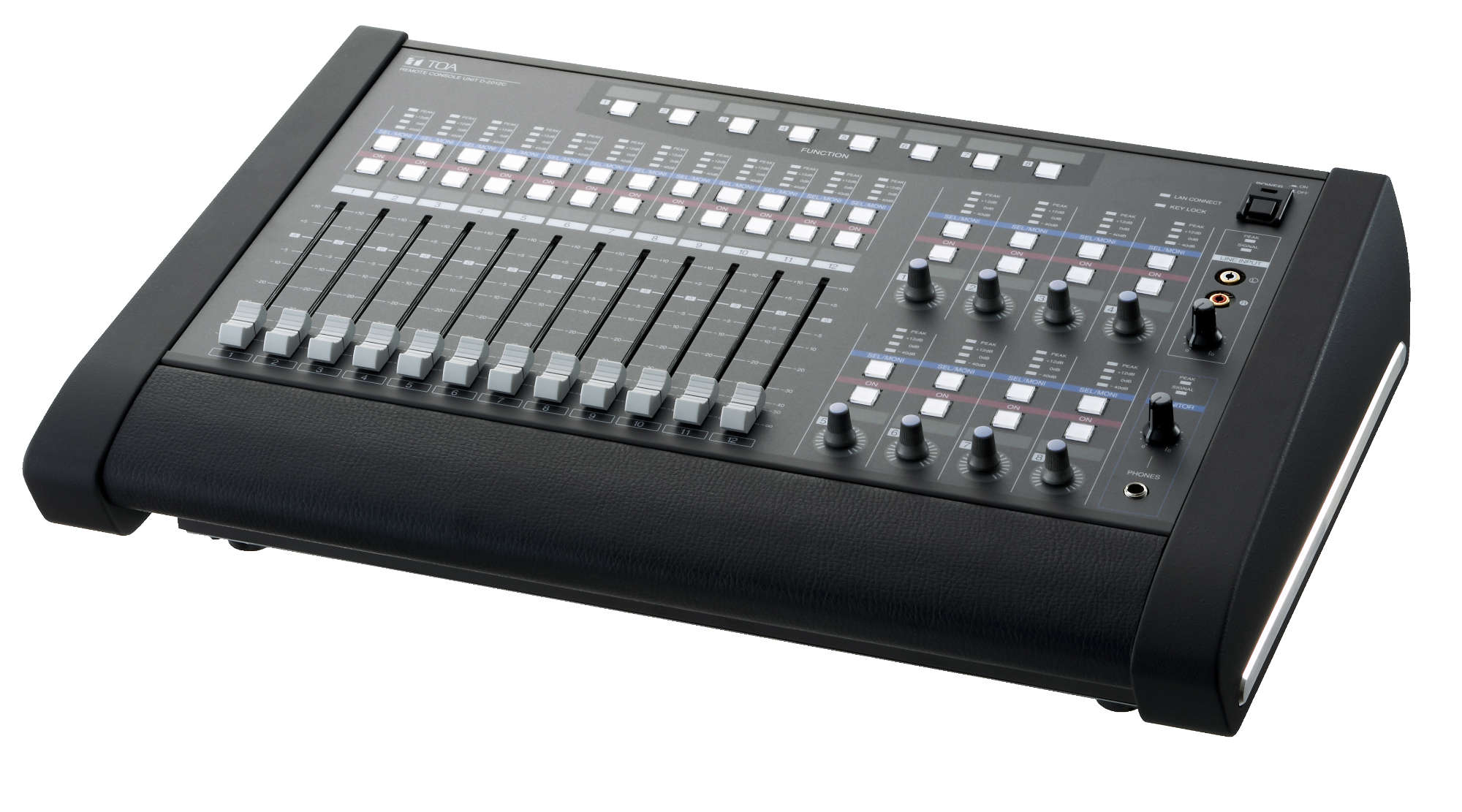

Console case: D-2012AS
